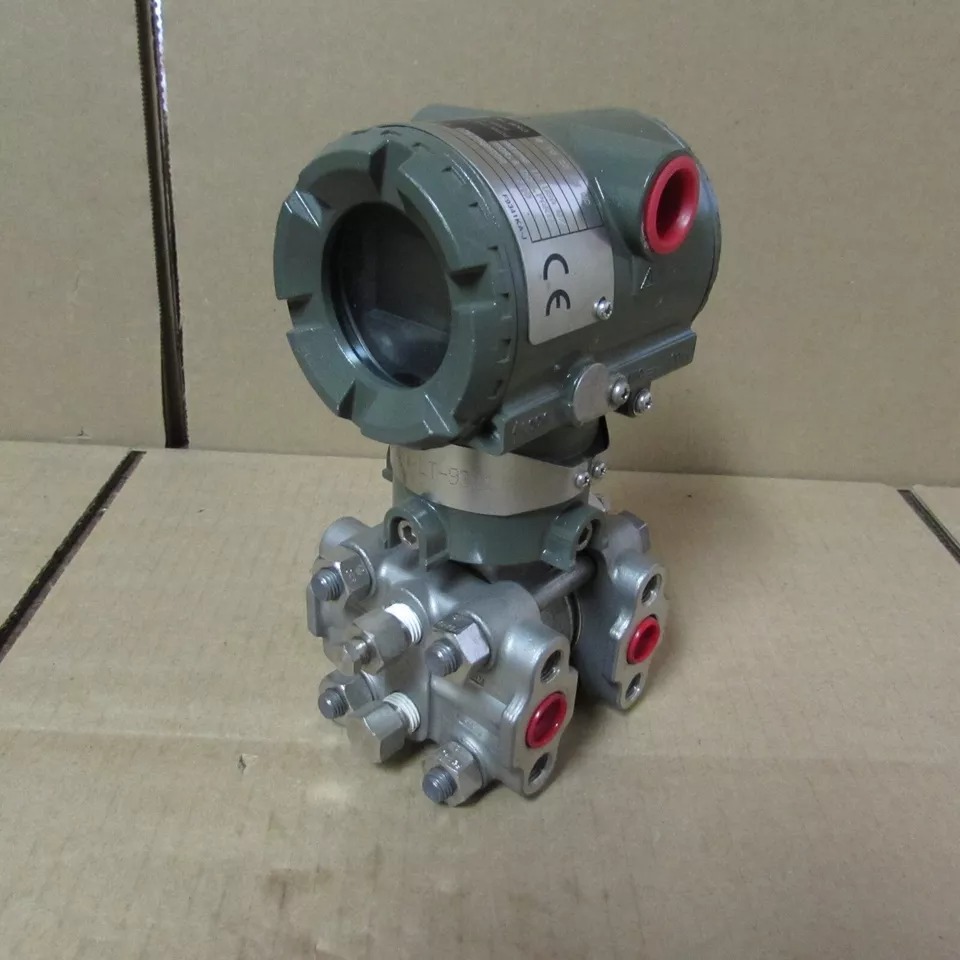

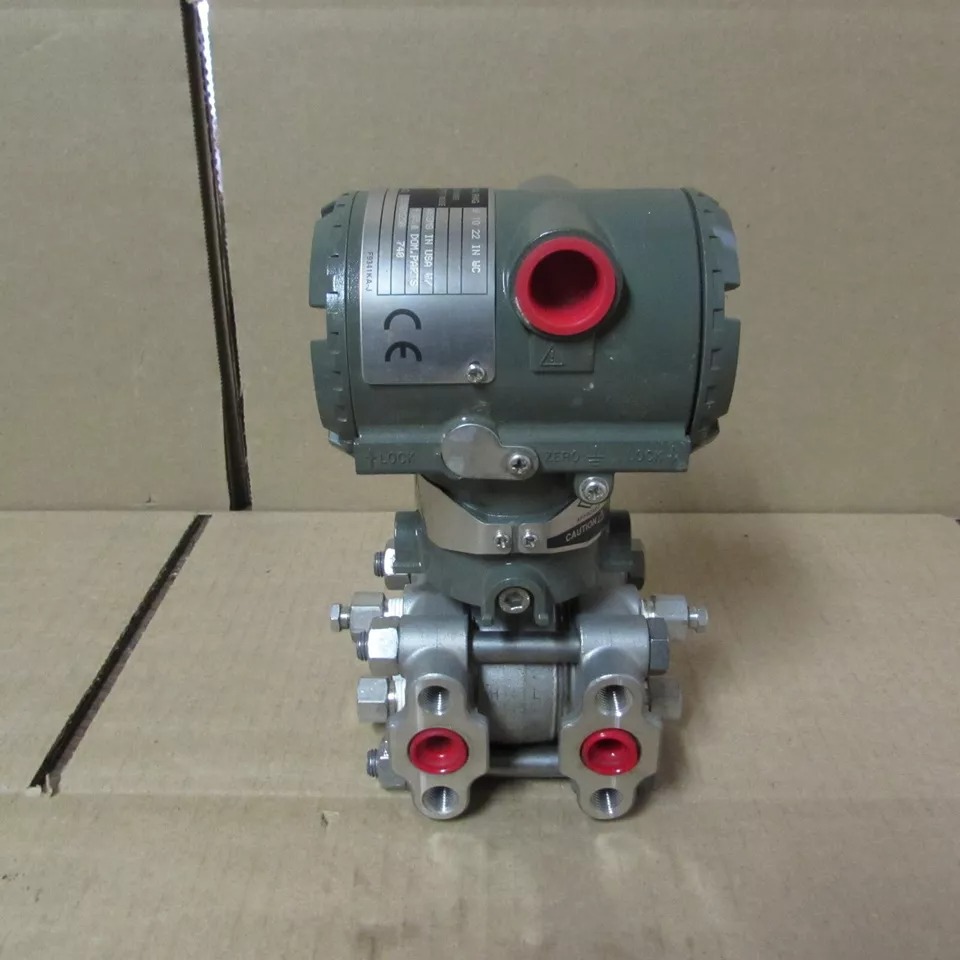

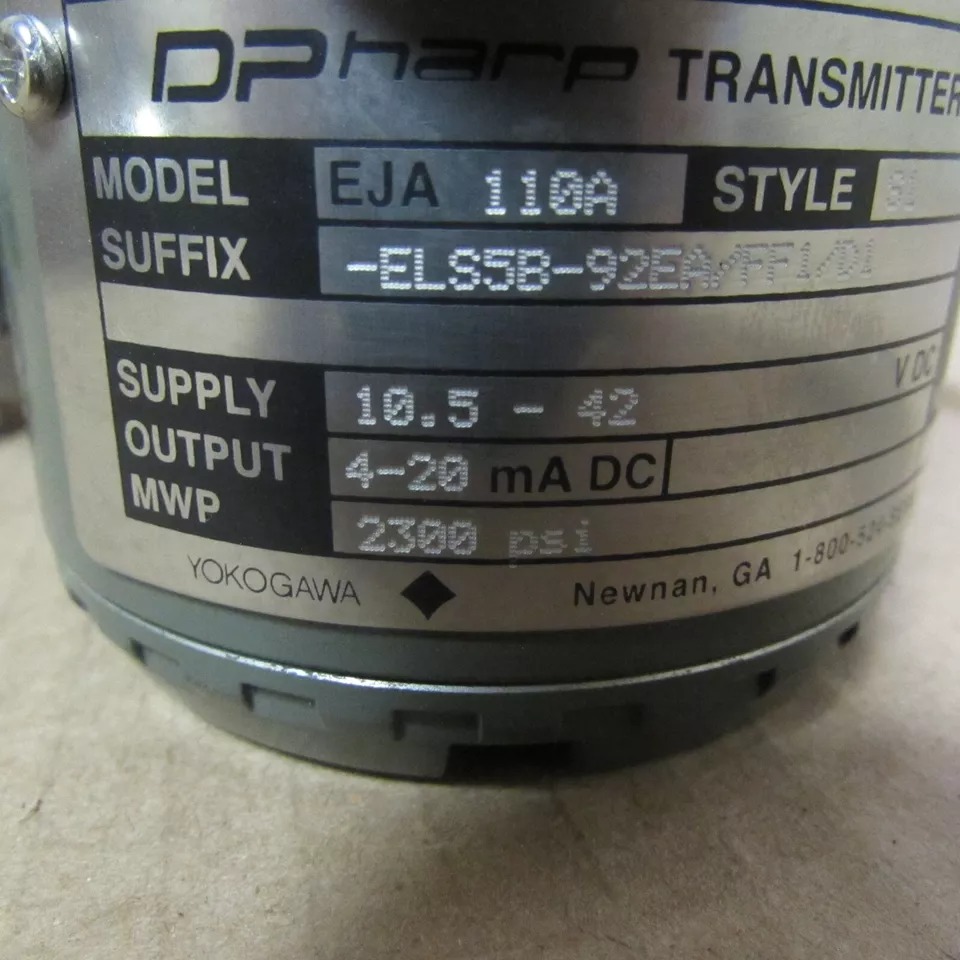

YOKOGAWA EJA110A Differential Pressure Transmitter

The YOKOGAWA EJA110A, part of the DPharp series, is a highly accurate and reliable differential pressure transmitter designed for industries such as oil and gas and petrochemicals. It features advanced digital sensing technology, ensuring excellent accuracy, stability, and long-term reliability. The EJA110A supports HART communication for seamless integration with control systems, making it ideal for modern industrial automation.

Key Specifications:

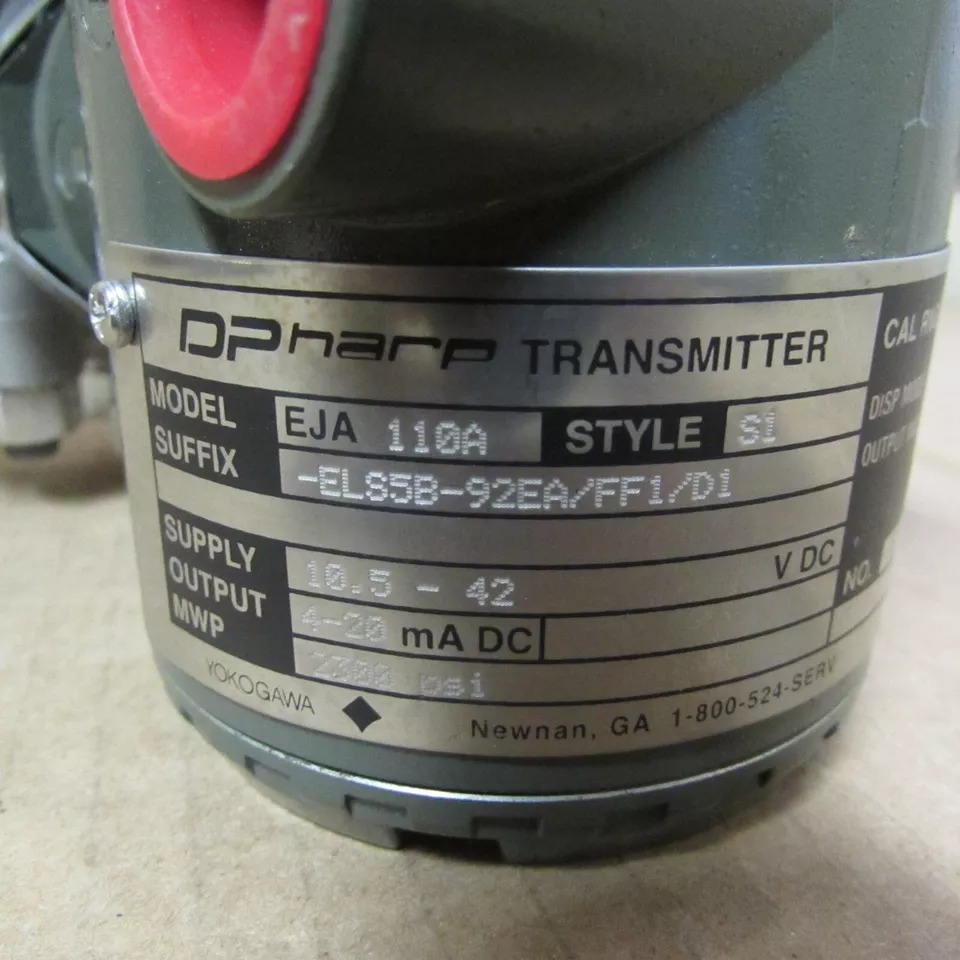

• Model: EJA110A-ELS5B-92EA/FF1/D1

• Measuring Range: -100 to 500 kPa (-14.5 to 72.5 psi)

• Accuracy: ±0.075% of Span

• Stability: ±0.1% of URL per 10 years

• Output: 4-20 mA with HART protocol

• Power Supply: 10.5 to 42 V DC

• Connections: 1/4-18 NPT female, ANSI/DIN flanges

• Materials: SUS316L, Hastelloy C-276 (wetted parts)

• Temperature Range: -40 to 120 °C

• Protection: IP66/67, Explosion-proof (FM, ATEX, IECEx)

• Mounting: Flexible orientation

This transmitter is an essential tool for precise pressure measurement in demanding industrial environments.
