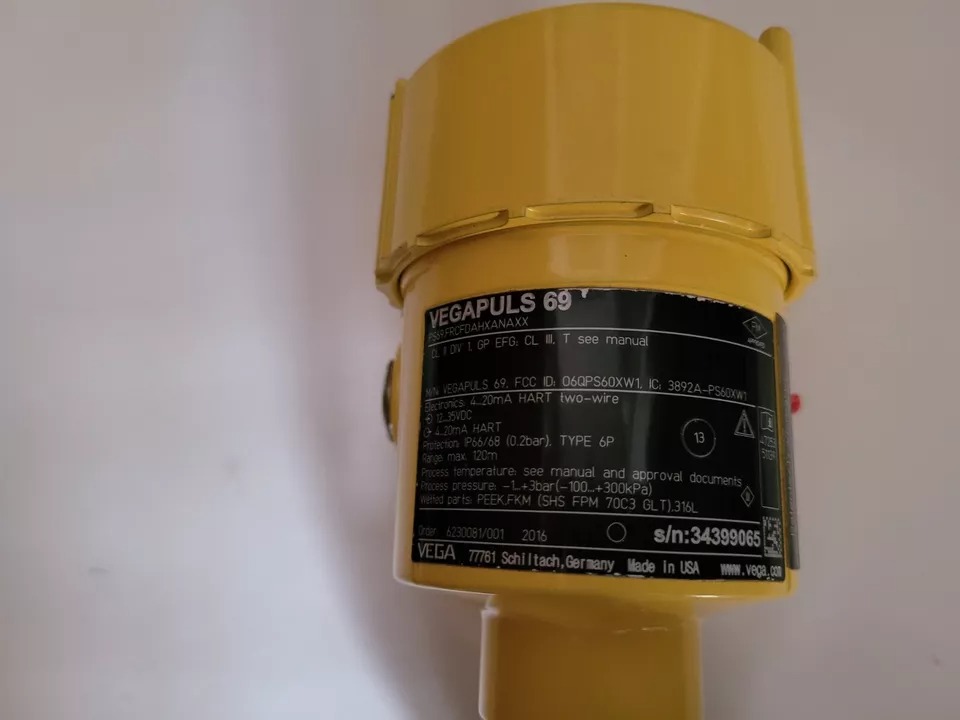

VEGAPULS 69 Radar Level Sensor for Continuous Measurement of Bulk Solids

Description:
The VEGAPULS 69 is an advanced radar level sensor specifically designed for the continuous, non-contact measurement of bulk solids. Utilizing cutting-edge 80 GHz radar technology, it ensures highly accurate and reliable measurements even under challenging conditions, such as high dust levels, uneven material surfaces, and varying product properties.

With its broad measurement range and excellent focusing capabilities, the VEGAPULS 69 is ideal for tall silos, large hoppers, and open storage areas. The sensor can be easily configured and monitored via Bluetooth connectivity using the VEGA Tools app on a smartphone or tablet, enabling wireless operation for maximum convenience.

This sensor delivers precise performance across diverse industrial sectors, including cement, mining, agriculture, and food processing, making it the preferred solution for demanding bulk solids applications.

Key Features:

1. 80 GHz Radar Technology: Offers exceptional focusing and accuracy, unaffected by dust, material properties, or environmental factors.

2. Non-Contact Measurement: Ensures reliable level detection without physical contact with the measured material.

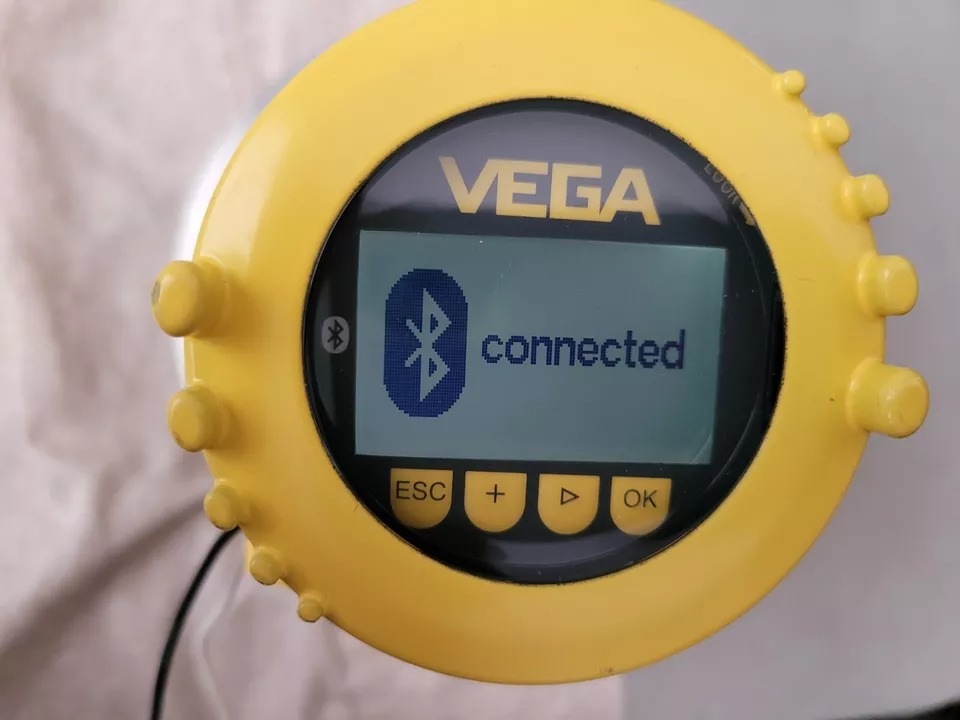

3. Bluetooth Configuration: Wireless setup and diagnostics via the VEGA Tools app for easy and safe operation.

4. Extended Measurement Range: Suitable for tall silos, large vessels, and open bulk material storage (up to 120 meters).

5. Robust Design: Built for durability in harsh environments, including extreme dust and heavy-duty conditions.

6. Narrow Beam Angle: Optimized focusing for accurate measurement in silos with obstructions or uneven surfaces.

7. Low Maintenance: Non-contact operation minimizes wear and tear, reducing maintenance requirements.

Technical Specifications:

• Model: VEGAPULS 69

• Measurement Technology: 80 GHz Radar Level Sensor

• Measurement Range: Up to 120 meters (394 feet)

• Output Signal: 4-20mA/HART, optional Modbus, Profibus, or Foundation Fieldbus

• Configuration: Bluetooth-enabled (via VEGA Tools app)

• Frequency: 80 GHz for precise focusing

• Power Supply: 12-35 V DC

• Accuracy: ±5 mm (0.2 inches)

• Process Temperature Range: -40°C to +80°C (-40°F to +176°F)

• Process Pressure: -1 to +2 bar (-14.5 to +29 psi)

• Beam Angle: 4°

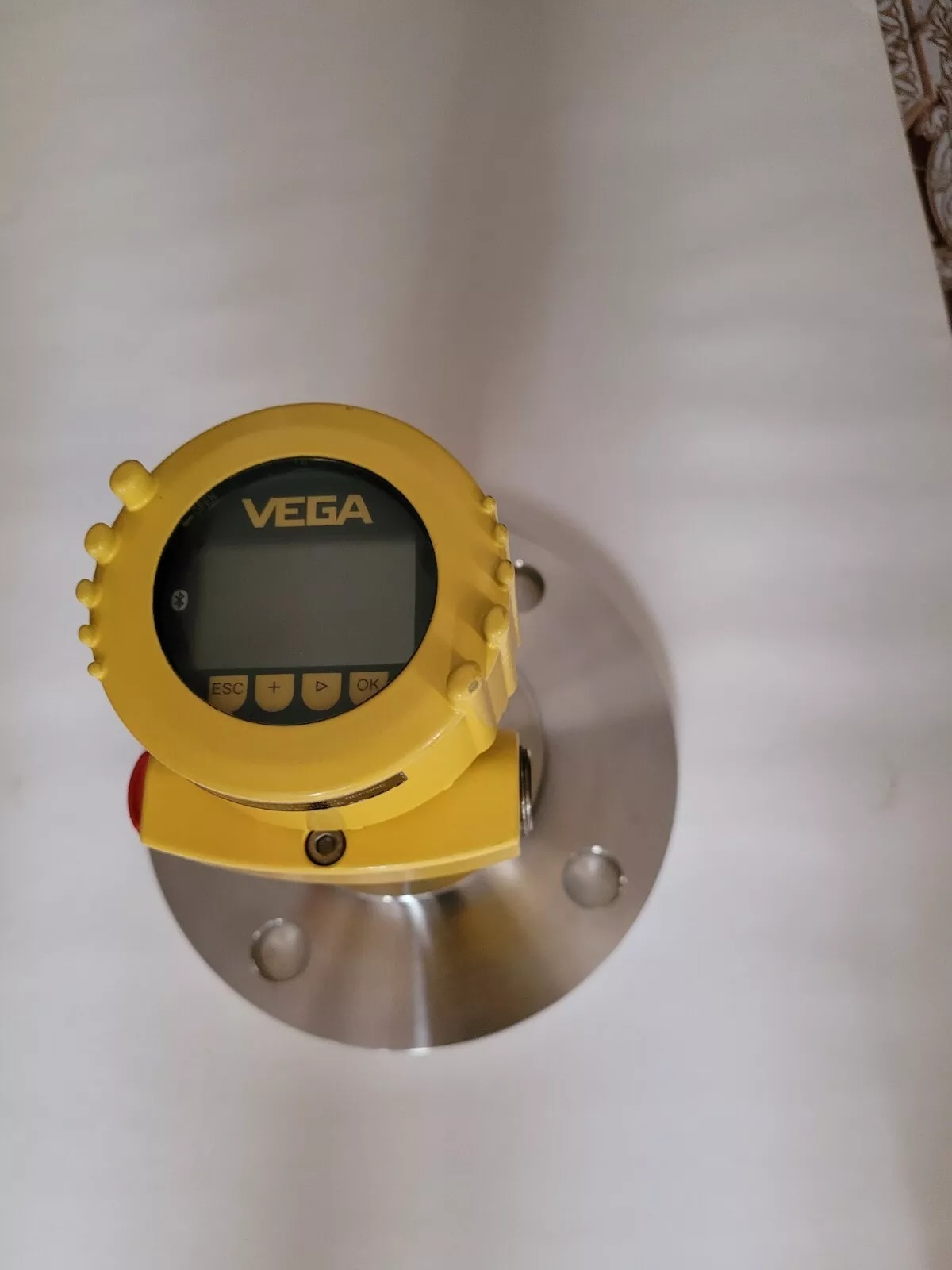

• Housing Material: Aluminum or stainless steel with a plastic (PVDF) antenna cover

• Process Connection: Threaded (e.g., 1½ NPT), Flanged, or Mounting Bracket

• Degree of Protection: IP66/IP67, NEMA 4X (dust and weatherproof)

• Weight: Approx. 2-4 kg (depending on configuration)

Applications:
The VEGAPULS 69 is designed for demanding applications involving bulk solids, including:

• Cement and Building Materials: Tall silos, clinker storage, and hopper level measurement.

• Mining and Aggregates: Level monitoring of ore, coal, and minerals in large silos or storage piles.

• Agriculture: Grain silos, feed tanks, and fertilizer storage.

• Food and Beverage: Bulk sugar, flour, grains, and other raw materials.

• Power Generation: Coal bunkers and ash silos.

Advantages:

• Precise measurement in extreme dust and high silos.

• Easy wireless setup and monitoring through Bluetooth.

• High durability and reliability in harsh industrial conditions.

• Maintenance-free operation with long service life.

The VEGAPULS 69 combines precision radar technology, robust construction, and modern wireless connectivity, providing an efficient and reliable solution for the most challenging bulk solids measurement tasks.
