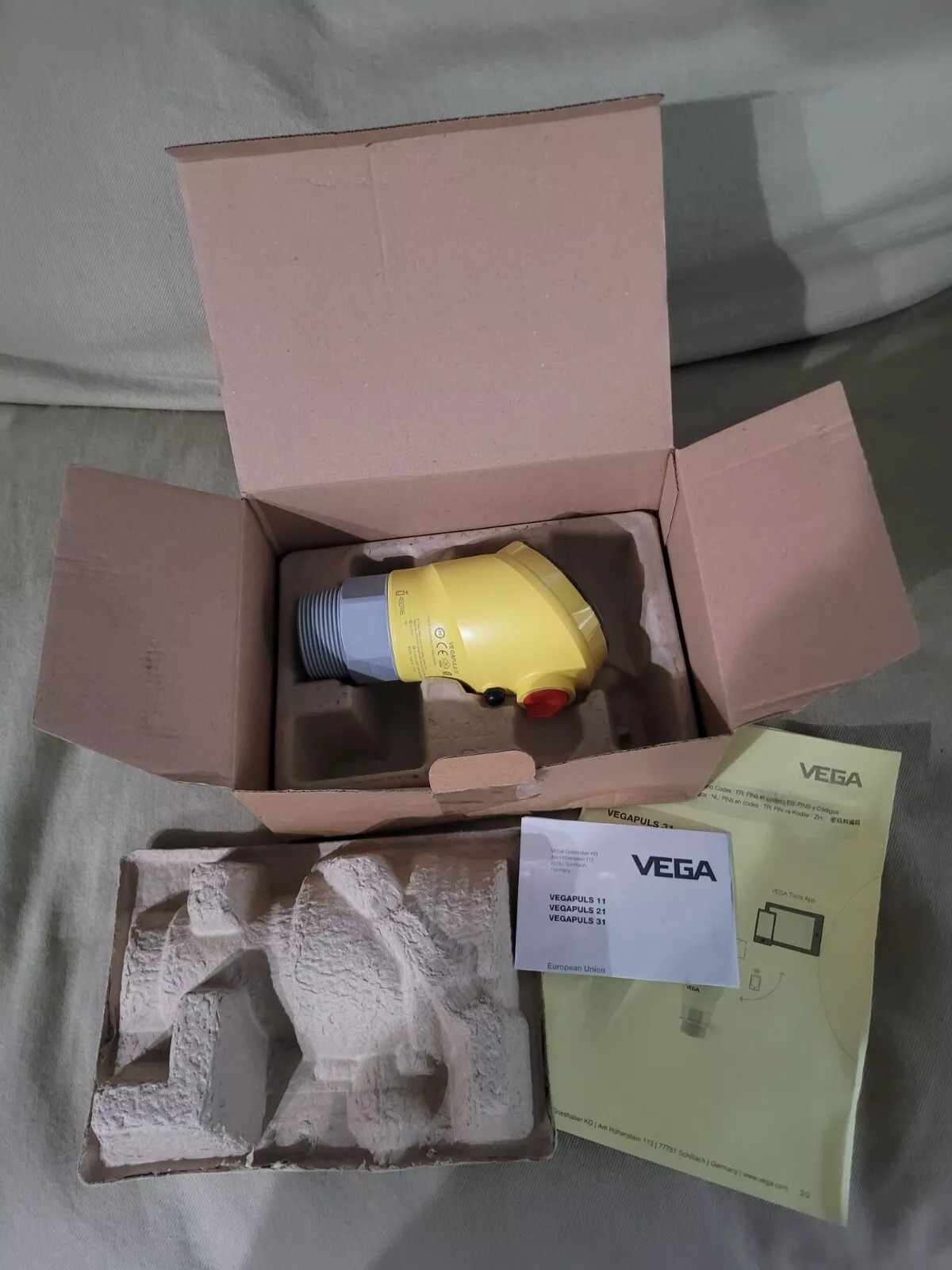

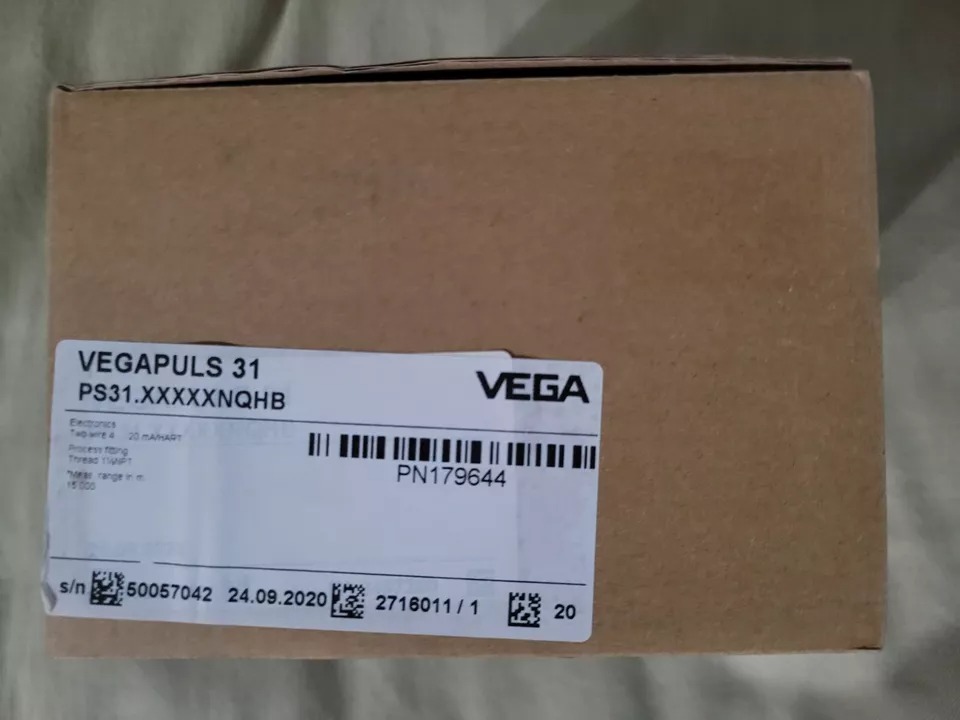

VEGAPULS 31 Radar Level Sensor, 4-20mA
Rp123000.00
Description:
The VEGAPULS 31 is a radar-based level sensor designed for continuous, non-contact level measurement of liquids and bulk solids. Featuring a robust and compact design, it operates with high accuracy and reliability under a wide range of process conditions. The sensor transmits its measurements via a 4-20mA output and offers easy configuration through Bluetooth connectivity using the VEGA Tools app, making it an ideal solution for modern industrial applications.
The VEGAPULS 31 delivers precise results without being affected by environmental factors like temperature, pressure, dust, or vapor. Its 2-wire design allows simple integration into existing systems, ensuring efficient installation and operation. This sensor is especially suited for applications in water and wastewater treatment, storage tanks, and process automation in industries such as chemicals, food and beverage, and agriculture.
Key Features:
Non-Contact Radar Technology: Reliable level measurement unaffected by temperature, pressure, or environmental changes.
4-20mA Output: Industry-standard analog output for easy integration with control systems.
Bluetooth Configuration: Allows wireless sensor setup and monitoring via the VEGA Tools app on smartphones or tablets.
Compact Design: Lightweight and space-saving, suitable for various installation environments.
2-Wire System: Simplified wiring for easy installation and low maintenance requirements.
High Measurement Accuracy: Consistent and precise level detection across a wide range of applications.
Durability: Built for robust industrial use with resistance to dust, moisture, and harsh conditions.
Technical Specifications:
Model: VEGAPULS 31
Technology: Radar Level Measurement
Measurement Range: Up to 15 meters (49 feet)
Output Signal: 4-20mA, 2-wire
Configuration: Bluetooth-enabled (via VEGA Tools app)
Power Supply: 12-35 V DC
Accuracy: ±2 mm (0.08 inches)
Frequency Range: 80 GHz radar technology
Process Temperature Range: -40°C to +80°C (-40°F to +176°F)
Process Pressure: -1 to +3 bar (-14.5 to +43.5 psi)
Connection: Threaded process connection (e.g., G1½ or 1½ NPT)
Housing Material: Plastic (PVDF or similar for durability)
Degree of Protection: IP66/IP67, NEMA 4X for harsh environments
Weight: Approx. 1.5 kg (3.3 lbs)
Application Areas: Liquids, bulk solids, water and wastewater, storage tanks, and process automation
Applications:
The VEGAPULS 31 is ideal for:
Water and Wastewater Industry: Tank level monitoring, reservoir management.
Chemical Industry: Liquid level monitoring in storage and process tanks.
Food and Beverage: Measurement in raw material storage and processing tanks.
Agriculture: Silo and feed tank level measurement.
General Industrial Applications: Reliable level detection for various process fluids and solids.
