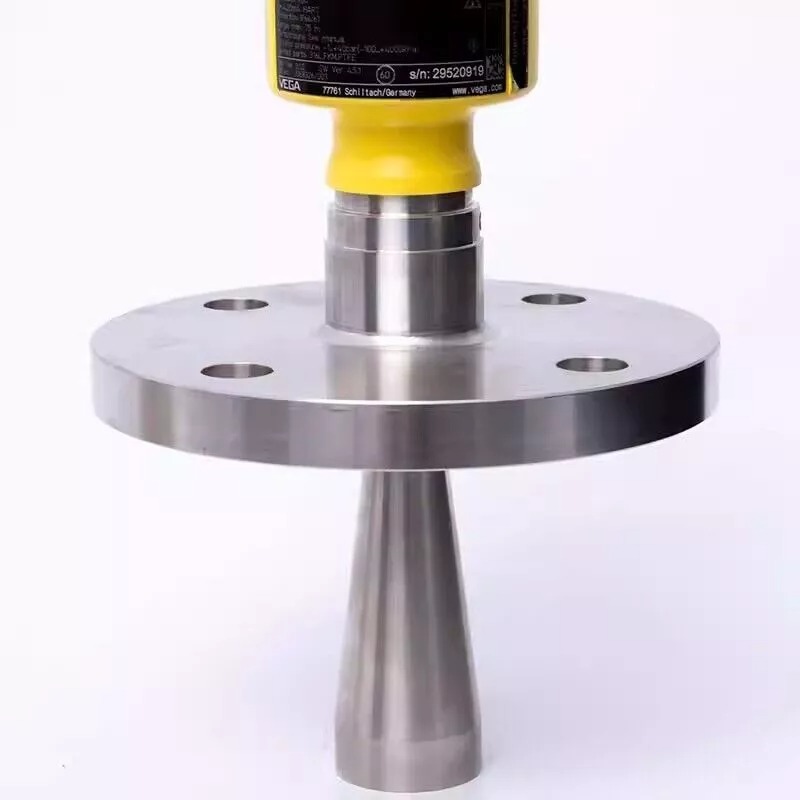

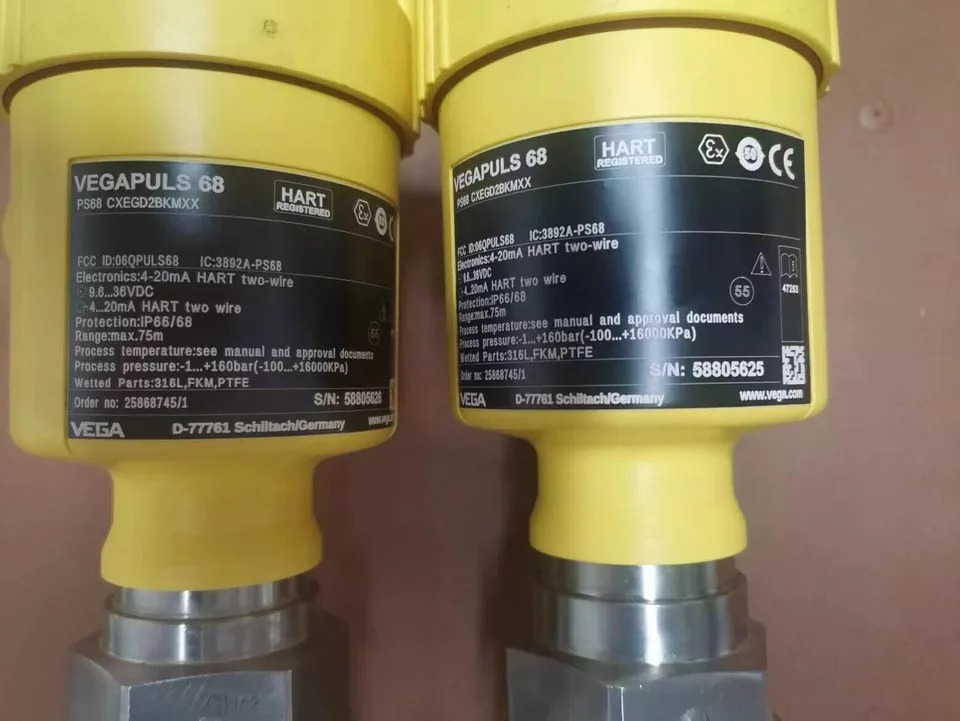

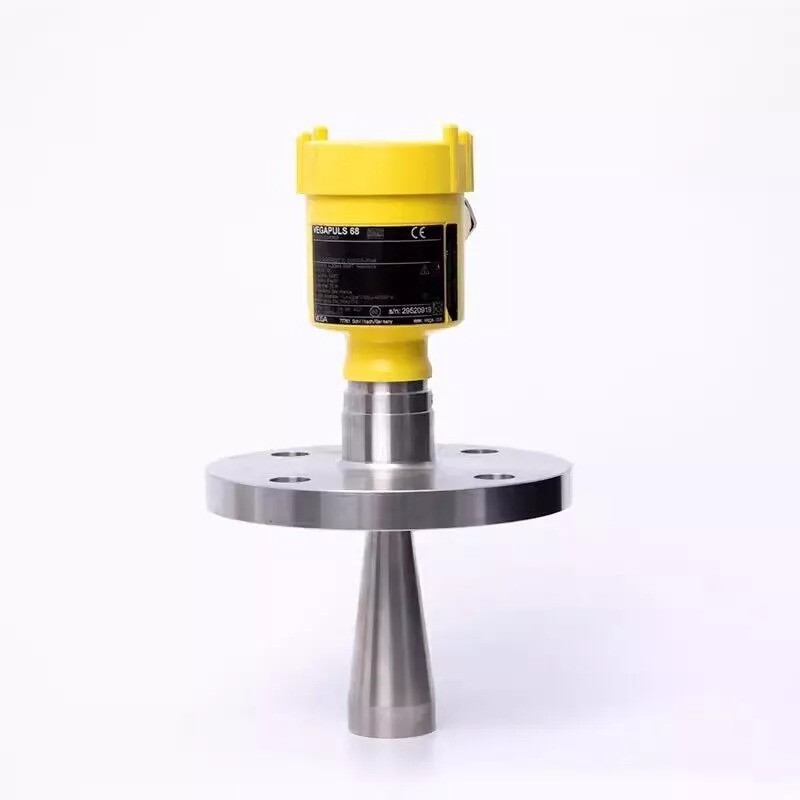

VEGA VEGAPULS68 Radar Level Meter VEGAPULS 68

Description:
The VEGA VEGAPULS 68 is a radar level sensor designed for the continuous level measurement of bulk solids in challenging process environments. Utilizing 26 GHz radar technology, it provides accurate and reliable measurements even in dusty, high-temperature, and high-pressure conditions, making it ideal for industries such as cement, mining, power generation, and food processing.

This non-contact radar sensor is optimized for use in large storage silos, bins, and hoppers, offering a long measuring range and excellent performance in extreme conditions. The VEGAPULS 68 is a versatile solution for level measurement in bulk solids applications, ensuring precise readings even in the presence of dust or heavy material filling.

Key Features:

• Non-Contact Radar Technology: Ensures accurate measurements without direct contact with the material.

• 26 GHz Frequency: Designed for measuring bulk solids and providing clear signals in dusty environments.

• Long Measuring Range: Up to 75 meters (246 feet), ideal for large silos and high-bulk volume applications.

• Robust Construction: Suitable for high temperatures and pressures.

• Dust and Fume Tolerant: Accurate measurements even in harsh, dusty conditions.

• Wireless Configuration: Bluetooth-enabled for easy setup and maintenance with the VEGA Tools app.

• Flexible Output Options: 4-20 mA/HART, Profibus PA, or Foundation Fieldbus for easy integration with process control systems.

Technical Specifications:

• Model: VEGAPULS 68

• Measurement Principle: Radar (non-contact)

• Frequency: 26 GHz

• Measuring Range: Up to 75 meters (246 feet)

• Accuracy: ±5 mm (0.2 inches)

• Output: 4-20 mA/HART, optional Profibus PA or Foundation Fieldbus

• Power Supply: 12-36 V DC

• Process Temperature: -40°C to +250°C (-40°F to +482°F)

• Process Pressure: -1 to +20 bar (-14.5 to +290 psi)

• Protection Rating: IP66/IP68, NEMA 4X/6P

• Communication Protocol: HART, Profibus PA, Foundation Fieldbus, Bluetooth

• Certifications: ATEX, IECEx, FM/CSA

Applications:

• Cement and Aggregate: Silo and hopper level measurement.

• Mining and Quarrying: Bulk material storage.

• Power Generation: Coal and other fuel storage silos.

• Food and Agriculture: Grain and powder measurement.

• Chemical and Plastics: Resin and pellet storage.

Advantages:

• Reliable performance in extreme environmental conditions (dust, heat, pressure).

• Long measuring range ideal for large silos and storage tanks.

• Non-contact, maintenance-free technology.

• Easy configuration and diagnostics via Bluetooth and VEGA Tools app.
