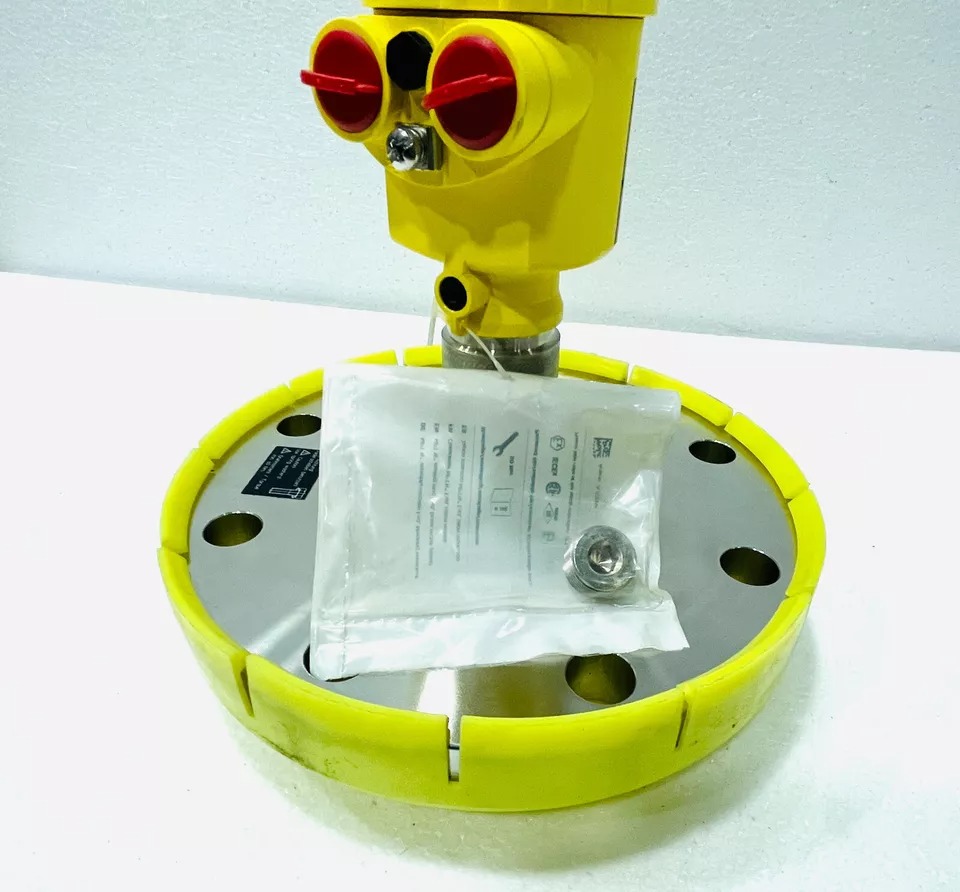

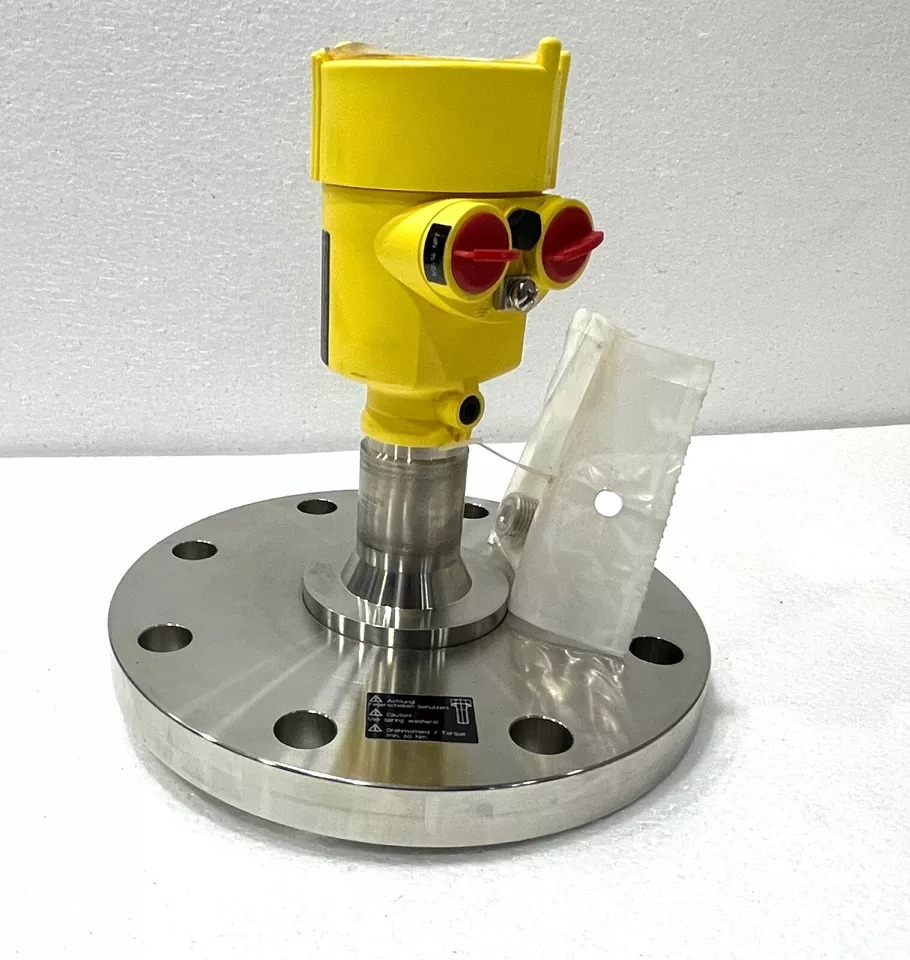

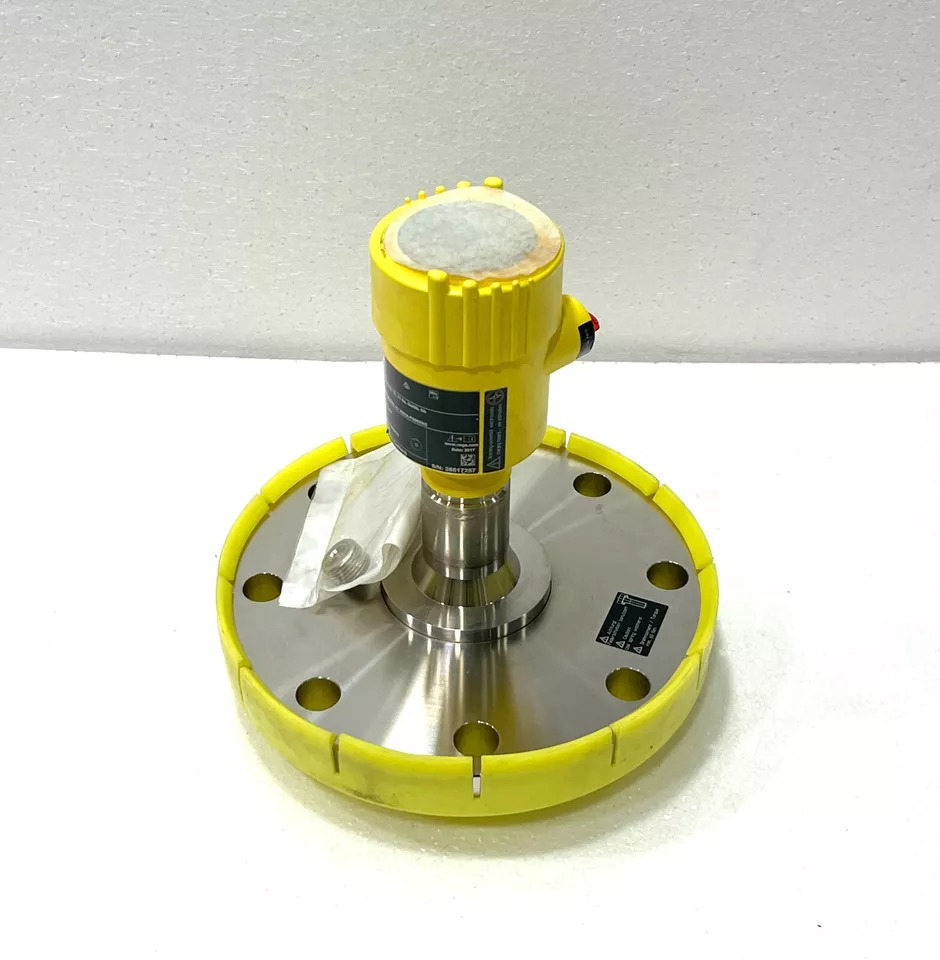

VEGA VEGAPULS 64 PS64.ICGGPIHXKNAXX Radar Level Sensor

Description:
The VEGAPULS 64 is a state-of-the-art radar level sensor specifically designed for continuous, non-contact level measurement of liquids. Utilizing 80 GHz radar technology, it provides exceptional accuracy and reliability, even in small or narrow tanks, thanks to its narrow beam angle and excellent signal focusing. The VEGAPULS 64 is ideal for measuring aggressive liquids, high temperatures, and pressures across a wide range of industries, including chemical, oil & gas, and food & beverage.

The sensor's compact design, combined with its ability to operate under challenging process conditions, makes it versatile and easy to integrate into modern industrial systems. It supports advanced outputs, such as 4-20 mA with HART communication, ensuring seamless connectivity with existing control systems.

Key Features:

1. 80 GHz Radar Technology: High-frequency radar ensures precise measurement with minimal beam dispersion.

2. Non-Contact Measurement: No direct contact with the process, making it suitable for aggressive or hazardous liquids.

3. Small Process Connections: Ideal for small tanks or narrow openings.

4. Robust Operation: Reliable performance in harsh environments, unaffected by vapors, foam, or changing media properties.

5. Easy Configuration: Bluetooth setup via the VEGA Tools app for convenient wireless operation.

6. Output Options: 4-20 mA/HART communication for compatibility with standard process control systems.

7. Maintenance-Free Design: No moving parts, ensuring long-term reliability and minimal upkeep.

Technical Specifications:

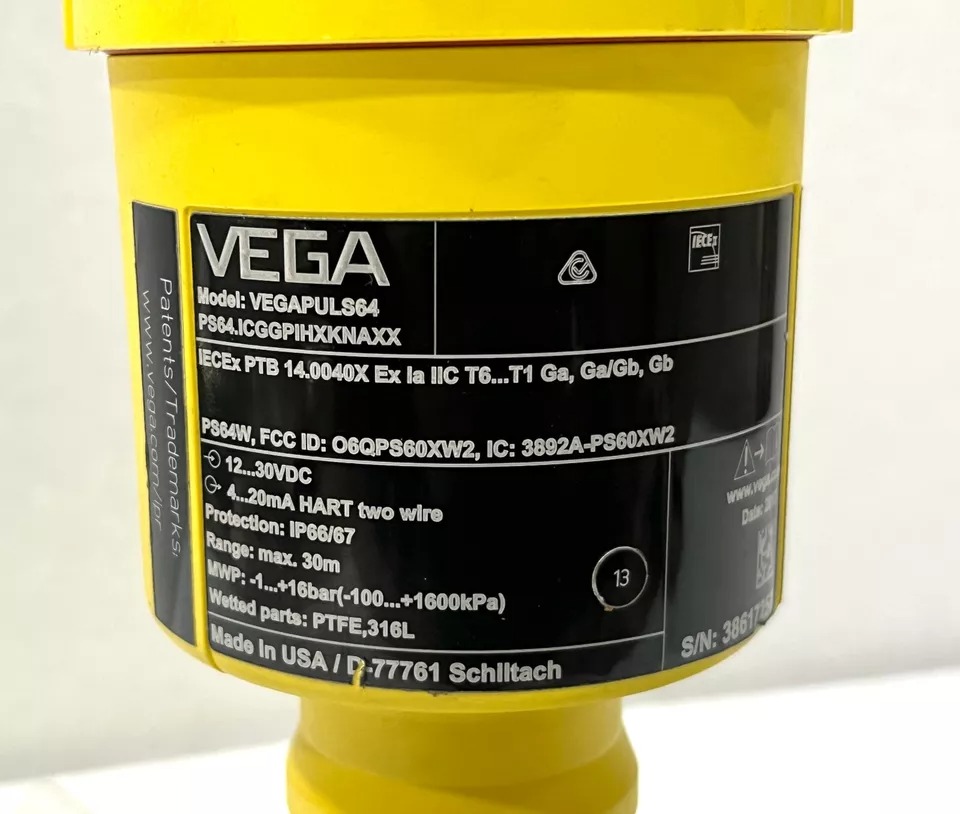

• Model: VEGAPULS 64 PS64.ICGGPIHXKNAXX

• Measurement Principle: 80 GHz Non-Contact Radar Level Measurement

• Measuring Range: Up to 30 meters (98 feet)

• Beam Angle: Narrow 3° beam for precise measurement in small tanks

• Output Signal: 4-20 mA/HART

• Power Supply: 9-36 V DC

• Accuracy: ±1 mm (0.04 inches)

• Process Temperature: -40°C to +200°C (-40°F to +392°F)

• Process Pressure: -1 to +20 bar (-14.5 to +290 psi)

• Frequency: 80 GHz

• Process Connection: Threaded (G¾, NPT ¾) or flanged connections

• Housing Material: Stainless steel, aluminum, or plastic

• Antenna Material: PTFE for chemical resistance

• Protection Rating: IP66/IP68, NEMA 4X/6P (dust and waterproof)

• Communication Protocol: HART, Bluetooth (wireless setup)

• Approvals: ATEX, IECEx, and other hazardous area certifications

Applications:
The VEGAPULS 64 is versatile and well-suited for a wide range of industries, including:

• Chemical Industry: Measurement of corrosive and aggressive liquids.

• Oil & Gas: Tank level monitoring, including small and narrow storage tanks.

• Pharmaceutical Industry: Hygienic liquid level monitoring with strict accuracy requirements.

• Food and Beverage: Non-contact measurement for hygienic applications.

• Water and Wastewater: Monitoring levels in process tanks and reservoirs.

Advantages:

• Exceptional accuracy with 80 GHz radar technology.

• Small beam angle for precise measurements in confined spaces.

• Highly resistant to process conditions like vapor, foam, and temperature changes.

• Easy wireless configuration via Bluetooth and mobile apps.

• Maintenance-free, non-contact design ensures long-term reliability.

The VEGAPULS 64 PS64.ICGGPIHXKNAXX provides an advanced, efficient, and highly reliable solution for continuous level measurement in demanding industrial applications. Its cutting-edge radar technology delivers precise performance while simplifying installation and operation.
