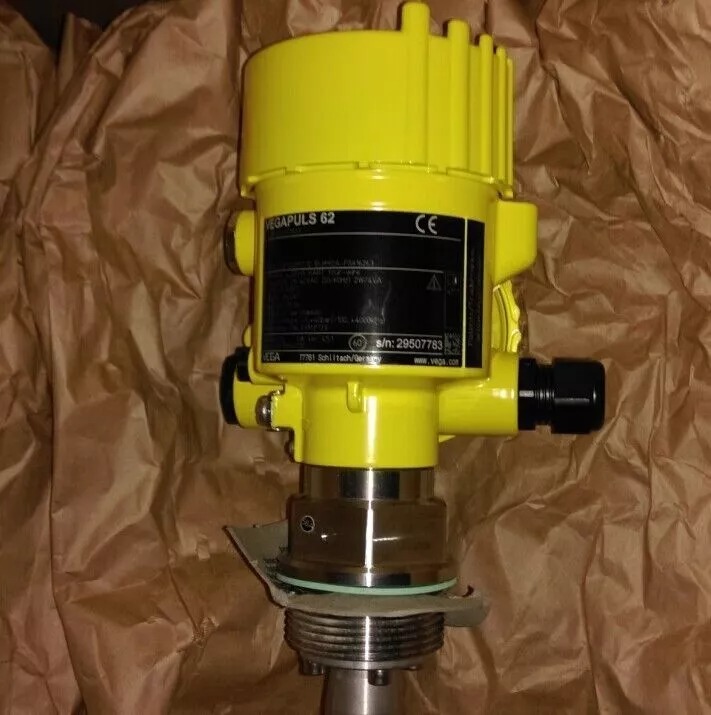

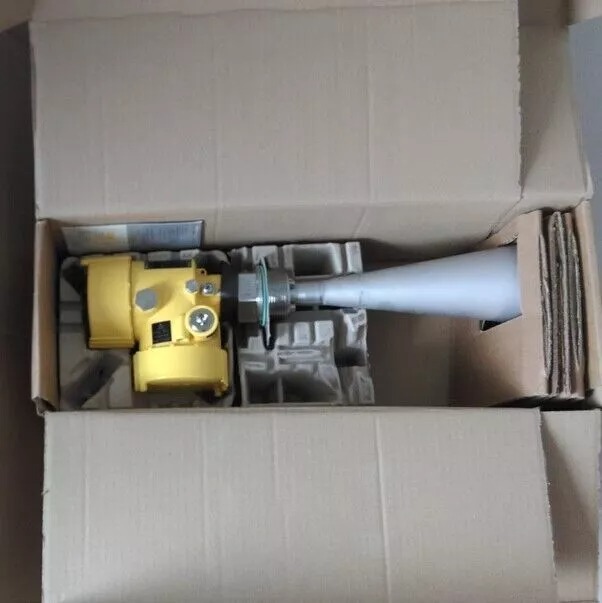

VEGA VEGAPULS 62 Radar Level Meter
Rp123000.00
Description:
The VEGA VEGAPULS 62 is a radar level sensor designed for continuous level measurement in liquid applications. With its 80 GHz radar technology, it offers precise, non-contact level measurement, providing reliable data even in the most demanding process conditions. The VEGAPULS 62 is ideal for measuring level in tanks, silos, and vessels containing liquids in industries such as chemical, oil & gas, water treatment, and food processing.
This radar sensor ensures accurate measurements regardless of factors like changing temperature, pressure, or vapor. Its compact design makes it suitable for applications where space is limited, while still delivering exceptional performance and ease of use.
Key Features:
80 GHz Radar Technology: Provides high-precision measurements even in challenging liquid applications.
Non-Contact Measurement: Ensures reliable level measurement without contact with the medium.
Long Range: Suitable for both small and large vessels with a measuring range of up to 30 meters (98 feet).
High Accuracy: Offers accurate readings even in varying conditions such as temperature and pressure fluctuations.
Easy Installation: Compact design allows for easy installation in limited spaces.
Wireless Configuration: Bluetooth-enabled for quick setup and maintenance using the VEGA Tools app.
Flexible Output Options: 4-20 mA/HART, Profibus PA, or Foundation Fieldbus for seamless integration with control systems.
Technical Specifications:
Model: VEGAPULS 62
Measurement Principle: Radar (non-contact)
Frequency: 80 GHz
Measuring Range: Up to 30 meters (98 feet)
Accuracy: ±5 mm (0.2 inches)
Output: 4-20 mA/HART, optional Profibus PA or Foundation Fieldbus
Power Supply: 12-36 V DC
Process Temperature: -40°C to +150°C (-40°F to +302°F)
Process Pressure: -1 to +40 bar (-14.5 to +580 psi)
Protection Rating: IP66/IP67, NEMA 4X
Communication Protocol: HART, Profibus PA, Foundation Fieldbus, Bluetooth
Certifications: ATEX, IECEx, FM/CSA
Applications:
Water and Wastewater: Level measurement in tanks, basins, and reservoirs.
Chemical and Pharmaceutical: Precise measurement in process vessels and reactors.
Food and Beverage: Monitoring levels in liquid storage and production tanks.
Oil & Gas: Measuring liquid levels in separators, storage tanks, and pipelines.
Advantages:
High precision and reliability in challenging liquid environments.
Easy setup and diagnostics with Bluetooth and the VEGA Tools app.
Compact design for installation in tight spaces.
Excellent performance in varying temperatures and pressures.
Non-contact radar technology for maintenance-free operation.
The VEGAPULS 62 is a powerful radar level sensor designed for liquid applications, offering outstanding accuracy and durability across a wide range of industries. Its ease of use and advanced features make it a top choice for reliable continuous level measurement.
