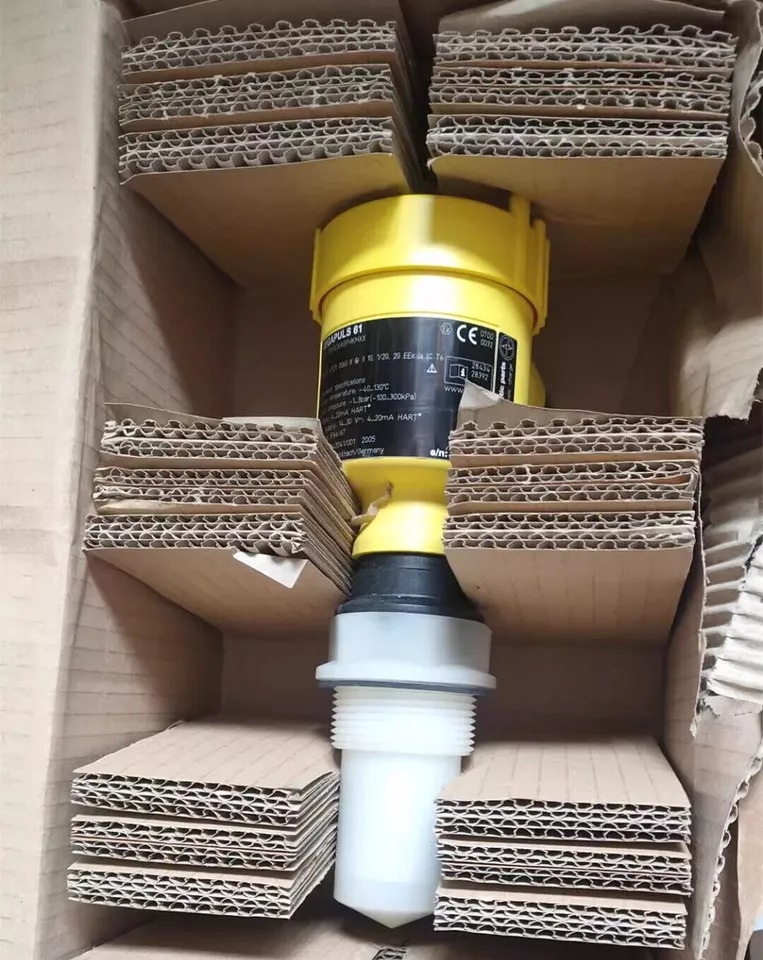

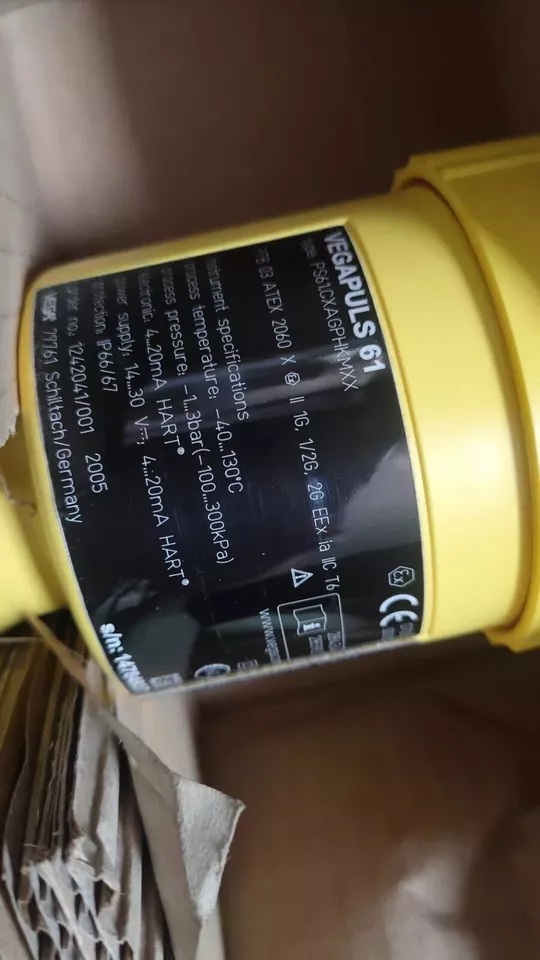

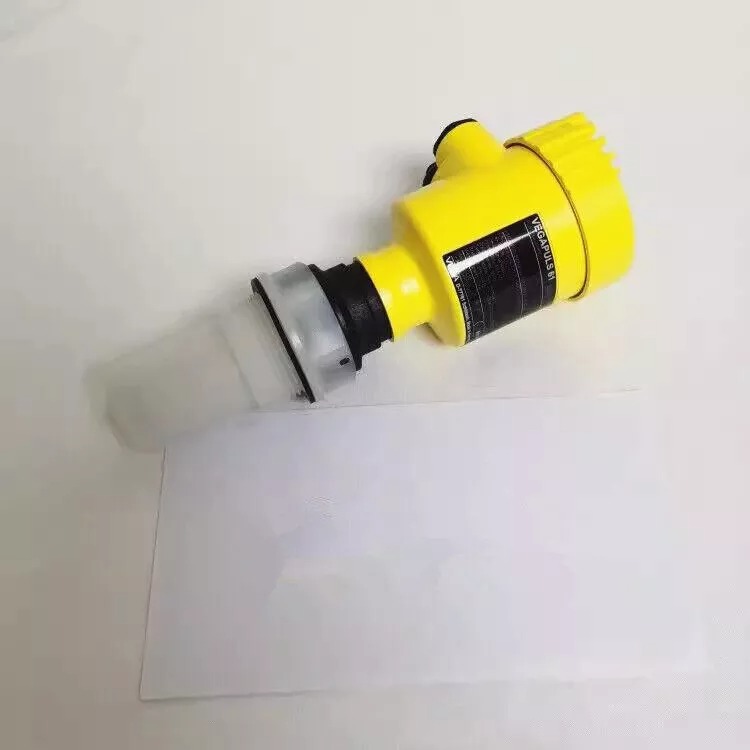

VEGA VEGAPULS 61 Radar Level Sensor
Rp123000.00
Description:
The VEGAPULS 61 is a non-contact radar level sensor designed for continuous level measurement of liquids in standard applications. Using reliable 26 GHz radar technology, it ensures accurate and maintenance-free measurement, even under challenging process conditions such as vapor, temperature changes, and pressure variations.
The VEGAPULS 61 is well-suited for industries like water and wastewater, chemical, and general industrial processes. Its robust design, compact size, and versatile process connections make it a cost-effective solution for tanks, open basins, and storage vessels.
The sensor provides highly precise measurement while offering easy integration with 4-20 mA/HART output and configuration options via Bluetooth wireless setup using the VEGA Tools app.
Key Features:
Non-Contact Radar Technology: Ensures reliable and accurate level measurement without direct contact with the medium.
26 GHz Frequency: High signal resolution for precise measurements in standard conditions.
Robust Performance: Unaffected by temperature, vapor, or process changes.
Compact and Versatile: Suitable for a wide range of industrial tanks and vessels.
Easy Configuration: Wireless Bluetooth setup via the VEGA Tools app for convenient commissioning and diagnostics.
Maintenance-Free Design: No moving parts for long-term reliability.
Output Options: 4-20 mA/HART for seamless integration with process control systems.
Technical Specifications:
Model: VEGAPULS 61
Measurement Principle: Non-Contact Radar Level Measurement
Frequency: 26 GHz
Measuring Range: Up to 35 meters (115 feet)
Accuracy: ±2 mm (0.08 inches)
Output Signal: 4-20 mA/HART
Power Supply: 12-36 V DC
Process Temperature: -40°C to +80°C (-40°F to +176°F)
Process Pressure: -1 to +3 bar (-14.5 to +43 psi)
Process Connection: Threaded (G1½, 1½ NPT) or flanged options
Antenna Material: PP (Polypropylene) or PTFE (Teflon) for chemical resistance
Housing Material: Plastic (PBT) or aluminum
Protection Rating: IP66/IP68, NEMA 4X/6P (water and dustproof)
Communication Protocol: HART, Bluetooth wireless connectivity
Approvals: ATEX, IECEx, and other hazardous area certifications
Applications:
The VEGAPULS 61 is ideal for various industries requiring cost-effective and accurate liquid level measurement, including:
Water and Wastewater: Open basins, reservoirs, and storage tanks.
Chemical Industry: Standard liquid storage and process tanks.
Industrial Processes: Level measurement in general storage tanks and vessels.
Power Plants: Water feed tanks and process monitoring.
Advantages:
Reliable measurement, unaffected by vapor, temperature changes, or process variability.
Compact and lightweight design for easy installation.
Cost-effective solution for standard applications.
Wireless configuration via Bluetooth for ease of use.
Maintenance-free operation ensures long-term reliability.
The VEGAPULS 61 Radar Level Sensor is a robust, efficient, and reliable solution for non-contact liquid level measurement in standard industrial applications. It delivers precise and consistent performance, providing a maintenance-free, cost-effective option for continuous level monitoring.
