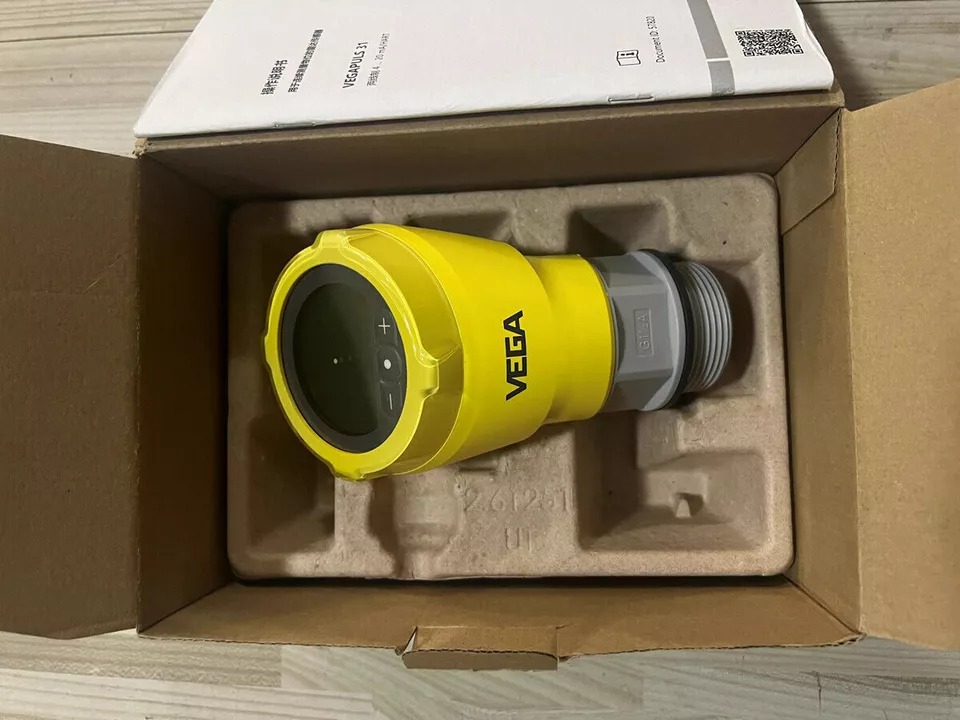

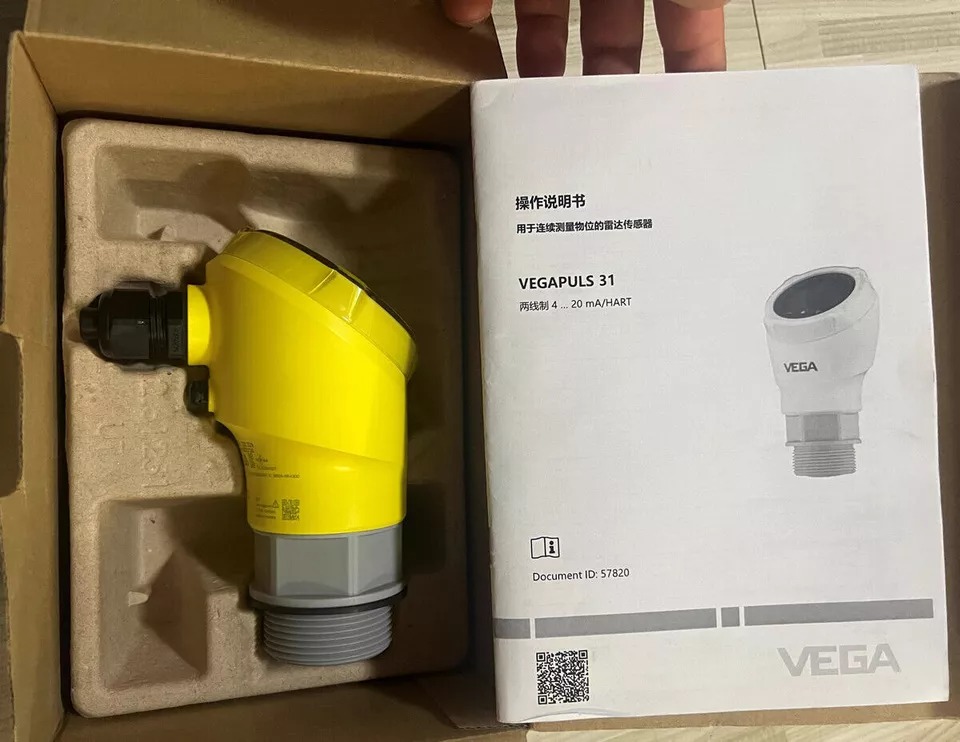

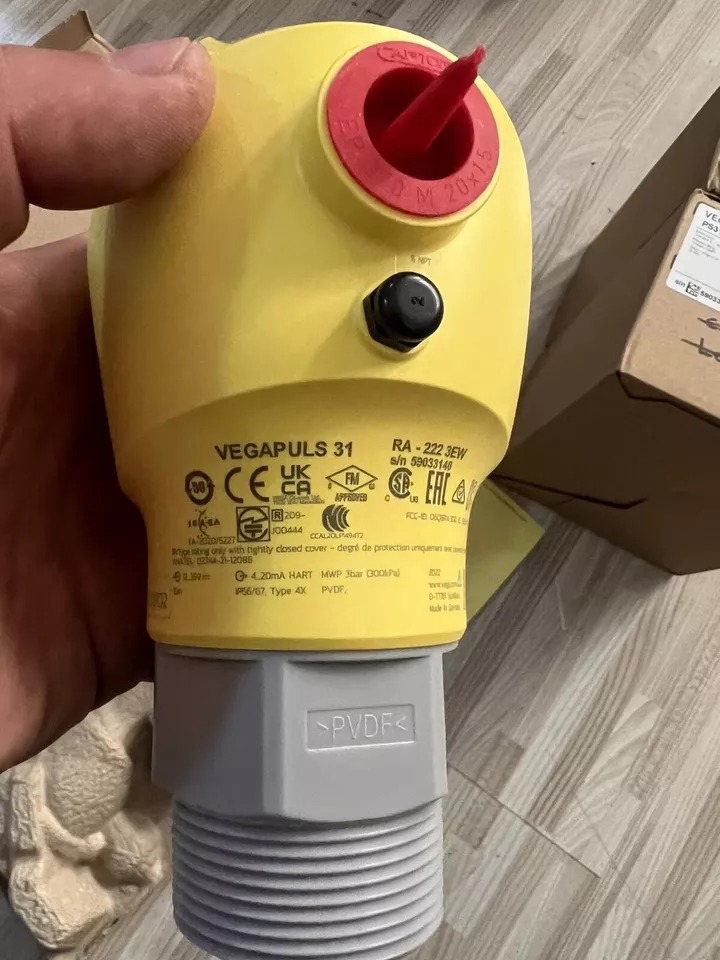

VEGA VEGAPULS 31 Radar Level Meter

Description:
The VEGA VEGAPULS 31 is a radar level sensor designed for continuous level measurement of liquids and bulk solids. Utilizing 80 GHz radar technology, it offers high precision and reliable measurement in a variety of challenging process environments, including applications with changing conditions such as temperature, pressure, and vapors. The VEGAPULS 31 is ideal for applications in industries such as chemical, oil & gas, water treatment, and food processing, where accurate and continuous level measurement is crucial.

This non-contact radar sensor is easy to install and operate, offering robust performance even in tanks, silos, or vessels that require precise monitoring. It is a versatile solution for both small and large vessels, ensuring optimal measurement accuracy.

Key Features:

• 80 GHz Radar Technology: High-frequency radar for precise level measurement in both liquid and bulk solids.

• Non-Contact Measurement: Eliminates wear and tear by providing a non-contact solution, ensuring longer sensor life.

• Long Range: Suitable for measuring levels up to 30 meters (98 feet) with high accuracy.

• Versatile Use: Ideal for liquids, pastes, and bulk solids, making it suitable for a variety of industries.

• Easy Setup and Operation: Bluetooth-enabled for simple configuration, setup, and maintenance via the VEGA Tools app.

• Flexible Output Options: 4-20 mA/HART, Profibus PA, or Foundation Fieldbus for seamless integration with process control systems.

Technical Specifications:

• Model: VEGAPULS 31

• Measurement Principle: Radar (non-contact)

• Frequency: 80 GHz

• Measuring Range: Up to 30 meters (98 feet)

• Accuracy: ±5 mm (0.2 inches)

• Output: 4-20 mA/HART, optional Profibus PA or Foundation Fieldbus

• Power Supply: 12-36 V DC

• Process Temperature: -40°C to +150°C (-40°F to +302°F)

• Process Pressure: -1 to +40 bar (-14.5 to +580 psi)

• Protection Rating: IP66/IP67, NEMA 4X

• Communication Protocol: HART, Profibus PA, Foundation Fieldbus, Bluetooth

• Certifications: ATEX, IECEx, FM/CSA

Applications:

• Water and Wastewater: Ideal for level measurement in tanks, reservoirs, and basins.

• Chemical and Pharmaceutical: Continuous monitoring in reactors, storage tanks, and process vessels.

• Food and Beverage: Liquid level measurement in production and storage tanks.

• Oil & Gas: Monitoring levels in separators, storage tanks, and pipelines.

• Bulk Solids: Measurement of solids in silos, hoppers, and storage bins.

Advantages:

• Reliable and accurate level measurement in a wide range of applications.

• Easy setup and maintenance via Bluetooth and the VEGA Tools app.

• Excellent performance even in challenging conditions like vapors, foam, or dust.

• Non-contact technology for maintenance-free operation and long sensor lifespan.

• Flexible installation options with a robust, compact design.
