VEGA VEGAFLEX 82 Guided Wave Radar Level Gauge

Description:
The VEGAFLEX 82 is a guided wave radar level gauge designed for continuous level measurement of liquids and interface levels in industrial applications. Utilizing Time Domain Reflectometry (TDR) technology, the VEGAFLEX 82 provides highly accurate and reliable measurements, even in challenging conditions such as changing media, vapor, foam, or temperature fluctuations.

The sensor works by sending microwave pulses along a probe (rod, cable, or coaxial), which are reflected back when they encounter the product surface or an interface. Its ability to perform independent of media properties like dielectric constant makes it ideal for a wide range of industries, including chemical, oil & gas, power generation, and water treatment.

The VEGAFLEX 82 offers easy integration into existing systems, supports 4-20mA/HART outputs, and enables Bluetooth setup via the VEGA Tools app for convenient wireless configuration and diagnostics.

Key Features:

1. Guided Wave Radar Technology (TDR): Ensures reliable level and interface measurement for liquids.

2. Wide Application Range: Suitable for aggressive chemicals, hydrocarbons, water, and slurries.

3. Interface Measurement: Capable of detecting levels between two liquid phases (e.g., oil-water).

4. Bluetooth Configuration: Wireless setup and diagnostics via the VEGA Tools app.

5. Media Independence: Measurement accuracy unaffected by changes in density, pressure, or temperature.

6. Multiple Probe Options: Available with rod, cable, or coaxial probes to suit application requirements.

7. Robust and Maintenance-Free: Durable design requiring minimal maintenance with no moving parts.

Technical Specifications:

• Model: VEGAFLEX 82

• Measurement Principle: Guided Wave Radar (TDR)

• Measuring Range: Up to 75 meters (246 feet) with cable probe

• Output Signal: 4-20mA/HART, optional Modbus, Profibus, Foundation Fieldbus

• Power Supply: 12-35 V DC, optional 24 V AC

• Accuracy: ±2 mm (0.08 inches)

• Process Temperature: -40°C to +200°C (-40°F to +392°F)

• Process Pressure: -1 to +40 bar (-14.5 to +580 psi)

• Dielectric Constant (εr): ≥ 1.6

• Probe Options:

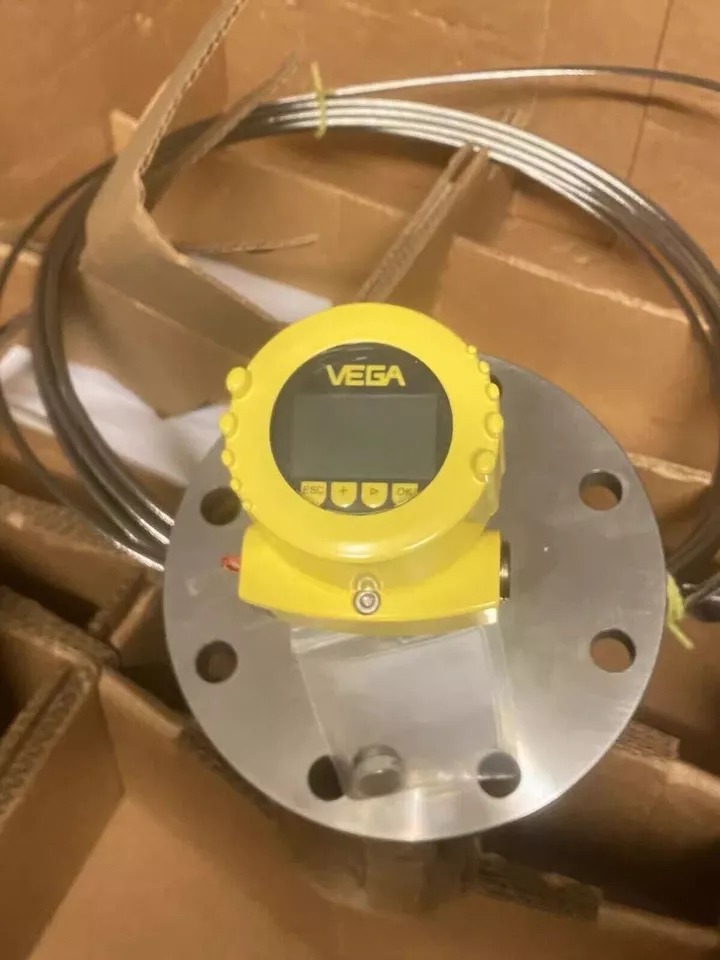

  • Cable Probe: Up to 75 m (246 ft)

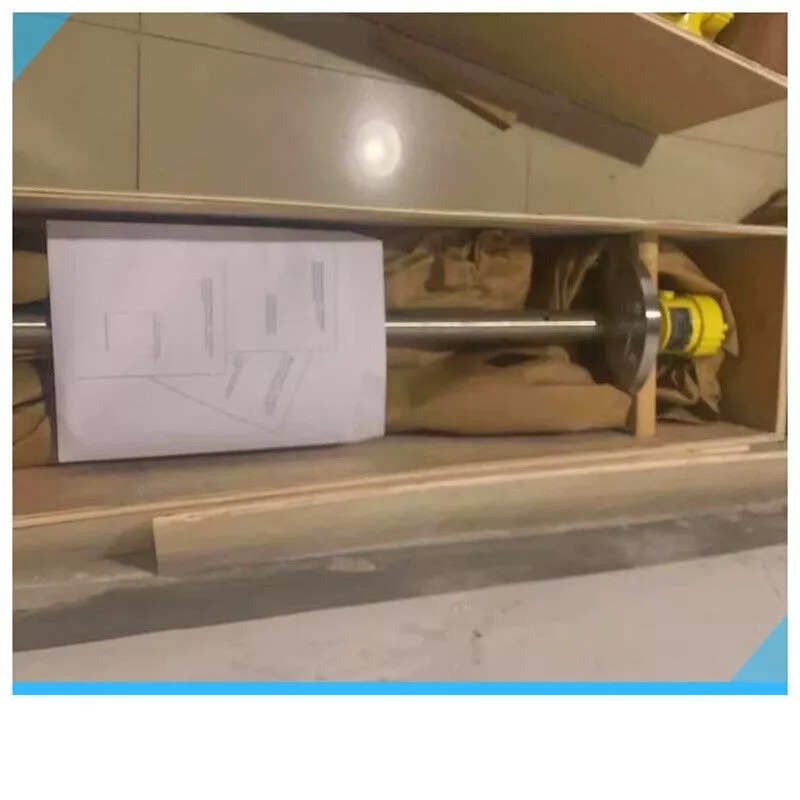

  • Rod Probe: Up to 6 m (19.7 ft)

  • Coaxial Probe: Up to 6 m (19.7 ft)

• Process Connection: Threaded (G1½, NPT 1½), Flanged, or hygienic fittings

• Housing Material: Aluminum, stainless steel, or plastic

• Degree of Protection: IP66/IP68, NEMA 4X/6P

• Configuration: Bluetooth-enabled via VEGA Tools app or handheld HART communicator

• Weight: Depends on probe type and length

Applications:
The VEGAFLEX 82 is ideal for continuous level and interface measurement in:

• Chemical Industry: Aggressive liquids, solvents, and interface levels.

• Oil & Gas: Hydrocarbon level detection and oil-water separation.

• Power Generation: Condensate and feedwater tanks.

• Water and Wastewater: Level measurement in storage and process tanks.

• Food and Beverage: Hygienic applications with optional sanitary connections.

Advantages:

• Accurate level measurement for liquids and interfaces.

• Immune to foam, vapor, and process variations.

• Wireless Bluetooth configuration for safe and easy operation.

• Versatile probe options to match application needs.

• Maintenance-free with long-term reliability.

The VEGAFLEX 82 combines advanced guided wave radar technology, robust construction, and modern connectivity features to deliver precise and dependable level measurement solutions across diverse industrial environments.
