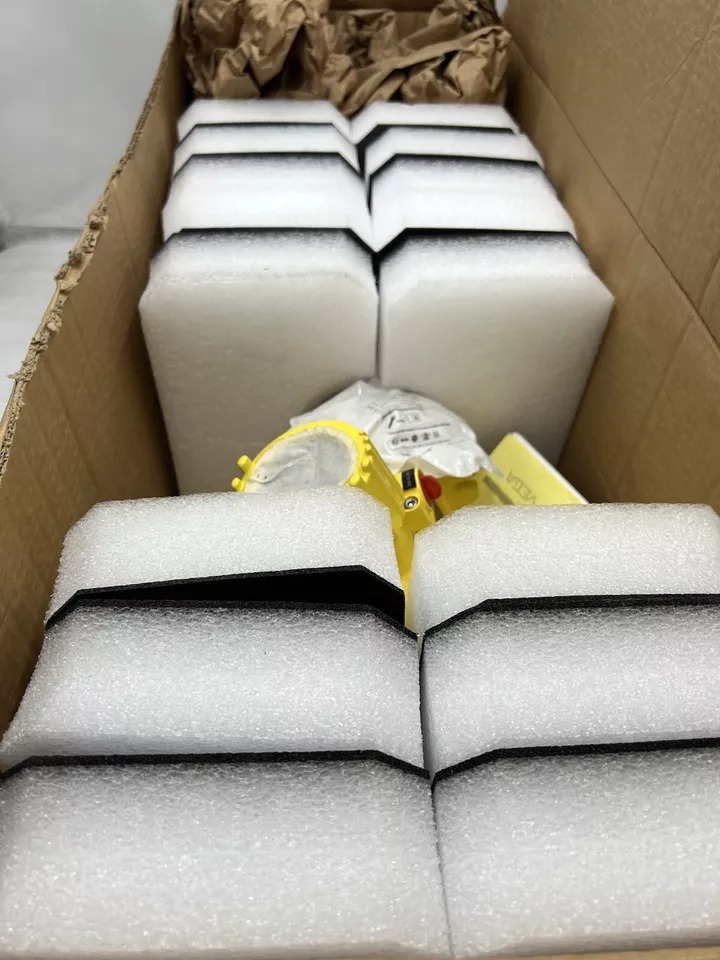

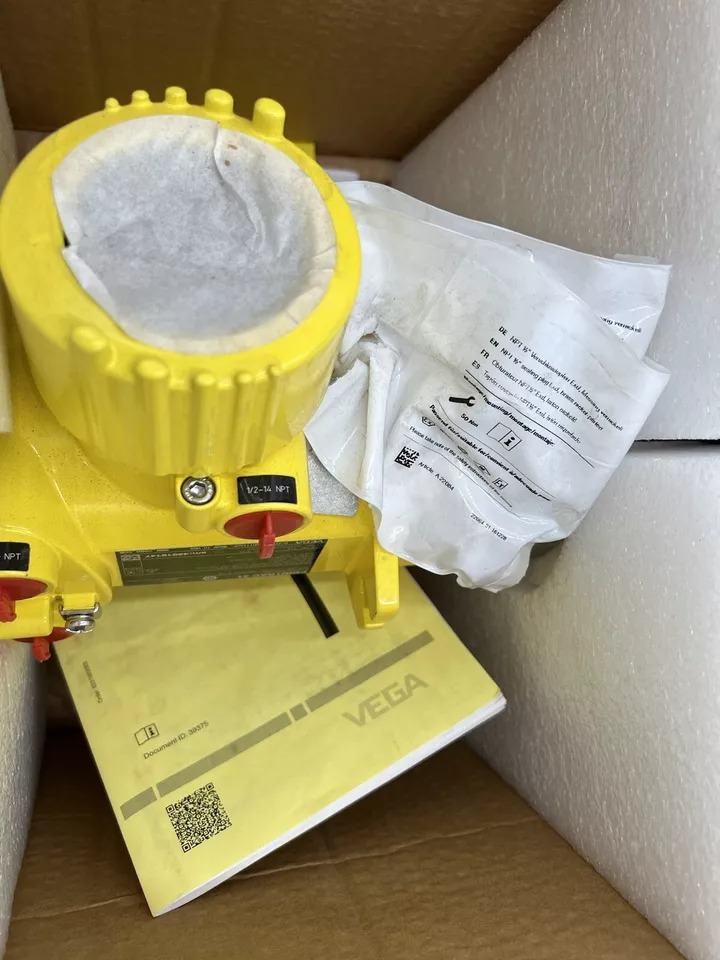

VEGA POINTRAC 31 PT31.UX1ADNBX006 Radiation-Based Level Transmitter

Description:
The VEGA POINTRAC 31 is a radiation-based level transmitter designed for reliable and precise point level detection and continuous level measurement in challenging industrial environments. Utilizing radiometric technology, the POINTRAC 31 is capable of detecting levels in harsh conditions where traditional sensors fail, including high temperatures, extreme pressures, or aggressive media.

This non-contact sensor works with a radiation source (e.g., Cesium-137 or Cobalt-60) and a robust detector. It ensures accurate level monitoring while being completely isolated from the process, making it ideal for demanding applications in industries such as oil & gas, chemical, and power generation.

The POINTRAC 31 is designed for long-term, maintenance-free operation and offers flexibility with 4-20 mA/HART output for seamless integration into existing systems.

Key Features:

1. Non-Contact Radiometric Measurement: Ideal for extreme conditions such as high temperatures, pressures, or aggressive chemicals.

2. Compact Design: Suitable for tight spaces with easy installation.

3. Reliable Detection: Provides highly accurate point and continuous level measurement.

4. Maintenance-Free: No moving parts or direct contact with the process media.

5. Advanced Connectivity: Supports 4-20 mA/HART for smooth integration into industrial control systems.

6. High Sensitivity: Optimized to work with low-level radiation sources for safety.

Technical Specifications:

• Model: VEGA POINTRAC 31 PT31.UX1ADNBX006

• Measurement Principle: Radiometric Level Transmitter

• Function: Point level detection and continuous level measurement

• Output Signal: 4-20 mA/HART

• Power Supply: 12-36 V DC

• Process Temperature: Up to 450°C (842°F) (application-dependent)

• Process Pressure: Unlimited (external measurement)

• Accuracy: ±2 mm (0.08 inches)

• Radiation Source: Cesium-137 (Cs-137) or Cobalt-60 (Co-60)

• Detector Type: Scintillation detector with high sensitivity

• Housing Material: Aluminum or stainless steel

• Protection Rating: IP66/IP68 (NEMA 4X/6P)

• Communication Protocol: HART for easy configuration and monitoring

• Weight: Varies depending on installation and housing configuration

Applications:
The VEGA POINTRAC 31 is suitable for industries and applications with extreme process conditions, such as:

• Oil & Gas: Crude oil storage, separators, and process tanks.

• Chemical Industry: Aggressive chemical storage and reactor vessels.

• Power Generation: High-temperature steam drums and reactor chambers.

• Metals and Mining: Slurry tanks, bulk material measurement, and silos.

• Cement Industry: Kiln-level monitoring and raw material silos.

Advantages:

• Operates independently of process conditions (temperature, pressure, and media properties).

• No direct contact with process media, ensuring long service life.

• Compact, robust design suitable for harsh environments.

• High accuracy and reliability for critical level measurements.

• Integrates seamlessly into existing control systems via HART communication.

The VEGA POINTRAC 31 is an advanced solution for demanding level measurement applications, delivering unmatched reliability and precision under extreme conditions. Its maintenance-free operation and non-contact measurement capability make it a trusted choice for industrial processes requiring radiometric technology.
