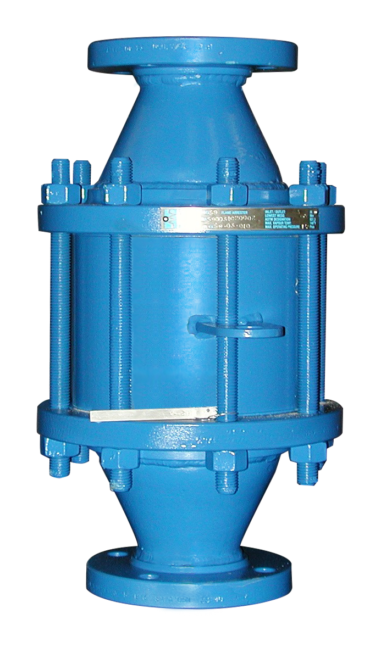

Varec 59 Series In-Line Detonation Flame Arrester
Rp123000.00
Description
The Varec 59 Series In-Line Detonation Flame Arrester is a safety device designed to prevent the propagation of flames and explosions within pipeline systems. It is rigorously tested under real-world conditions beyond standard requirements, including momentum impulse (long-run stable detonation), thermal failure, and re-ignition of downstream unburned gases. This ensures superior protection against all modes of flame propagation.
Key Features
Bi-Directional Protection – Effectively stops deflagrations, stable detonations, and overdriven detonations, regardless of piping configuration.
Flexible Installation – Can be installed in either horizontal or vertical pipelines.
Passive Operation – Operates without the need for external power, sensors, or actuators, ensuring high reliability.
Easy Maintenance – Features a removable flame element for easy separation, cleaning, and field maintenance.
Durable Construction – Built from carbon steel or stainless steel (304/316) with ANSI or DIN flange connections.
High-Pressure Handling – Rated for a maximum allowable pressure of up to 150 psig (1 MPa).
Customizable Options – Available with special coatings, instrument/drain connections, and alternative material configurations.
Technical Specifications
Type: In-Line Detonation Flame Arrester
Sizes Available: 2” to 12” (ANSI 150 RF) or equivalent DIN flange sizes
Flame Element Material: 304 SS, 316 SS, Hastelloy
Housing Material: Carbon Steel, 316 SS, 304 SS, Hastelloy
Orientation: Concentric / Eccentric
Maximum Allowable Pressure: 150 psig (1 MPa)
Installation: Suitable for horizontal or vertical mounting
Testing Standard: Compliant with USCG CFR 154
Maintenance: Removable and cleanable flame element
The Varec 59 Series In-Line Detonation Flame Arrester is engineered to provide maximum explosion protection in volatile gas handling systems, making it an essential component in industrial safety applications.
