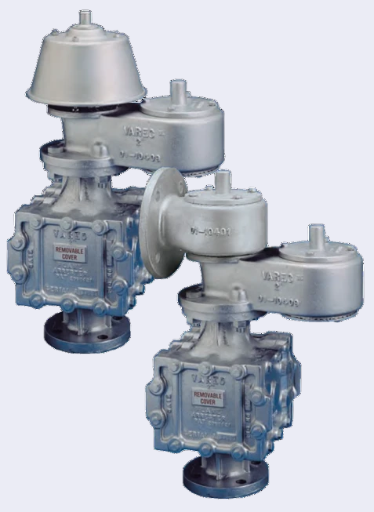

Varec 5810B / 5820B Series Relief Valve with Flame Arrester
Description
The Varec 5810B / 5820B Series Relief Valve with Flame Arrester combines the 2010B / 2020B Series Pressure and Vacuum Relief Valve with the 5000 Series Flame Arrester, providing high flow capacity and enhanced protection. Designed for easy maintenance, this unit ensures safe venting while preventing flame propagation.
Key Features
High Flow Capacity – Oversized pressure and vacuum ports for optimized performance.
Extensible Flame Arrester – Modular design for easy cleaning and maintenance.
Replaceable Seat Rings – Simplifies servicing and extends product life.
All-Weather Coating Option – Enhances durability in extreme conditions.
Vent Options – Available in vent-to-atmosphere or pipe-away models.
Sizes & Connections
5810B: Available in 2”, 3”, 4”, 6”, 8”, 10”, and 12” sizes.
5820B: Sizes range from 2” x 3” to 12” x 14”.
Flange Connection: ANSI 150 Flat-Face (Standard) or Raised-Face (All-Stainless Steel).
Custom Drilling: Available for DIN, JPI, or JIS standards upon request.
Pressure & Vacuum Settings
Setpoints available up to 1 PSIG.
Materials
Valve Body: 356 T6 Low Copper Cast Aluminum (Standard) or 316 Stainless Steel (Optional).
Valve Trim: Low Copper Aluminum with 316 SS Guideposts (Standard) or Full 316 Stainless Steel (Optional).
Pallet Seat Inserts: PTFE for reliable sealing.
Protective Screen: High-Density Polyethylene (HDPE).
Flame Arrester Housing: 356 T6 Aluminum (Standard) or 316 Stainless Steel (Optional).
Arrester Bank Assembly: Low Copper Aluminum with Aluminum or 316 SS Bank Sheets.
Hardware: Zinc-Plated Steel (Standard) or Stainless Steel (Optional).
Standards & Compliance
5000 Series Flame Arrester is UL Listed for aluminum construction.
Recommended installation within 15 feet of the vent pipe’s open end.
Operational Benefits
Efficient Venting – High flow capacity allows for smaller valve sizes.
Reduced Maintenance – Extensible flame arrester simplifies cleaning.
Wide Temperature Range – Operates from -25°F to 200°F (-32°C to 93°C).
Versatile Applications – Suitable for various environmental and safety requirements.
