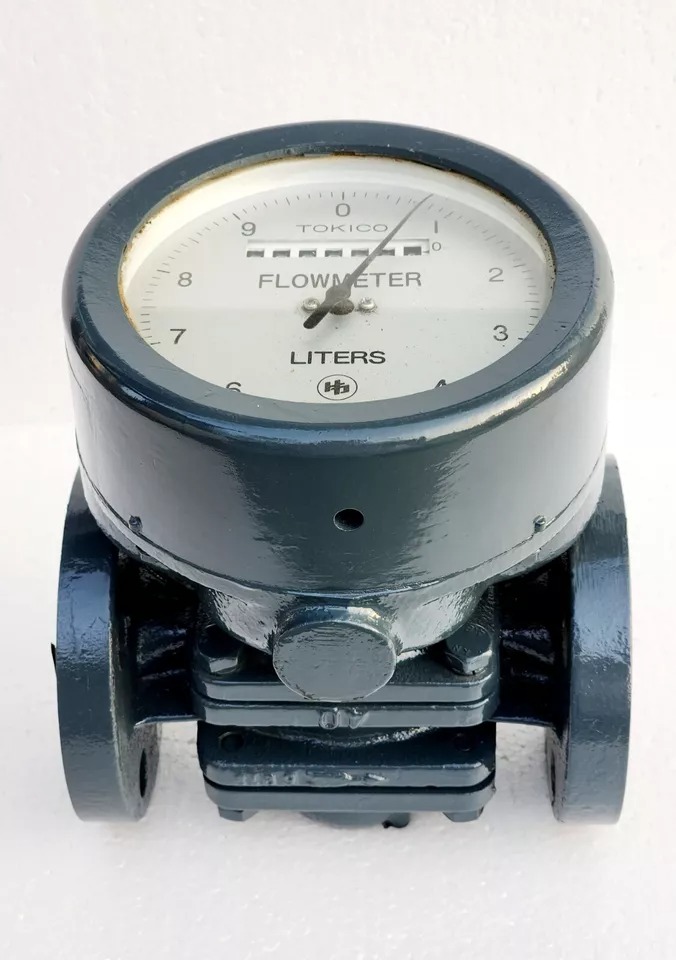

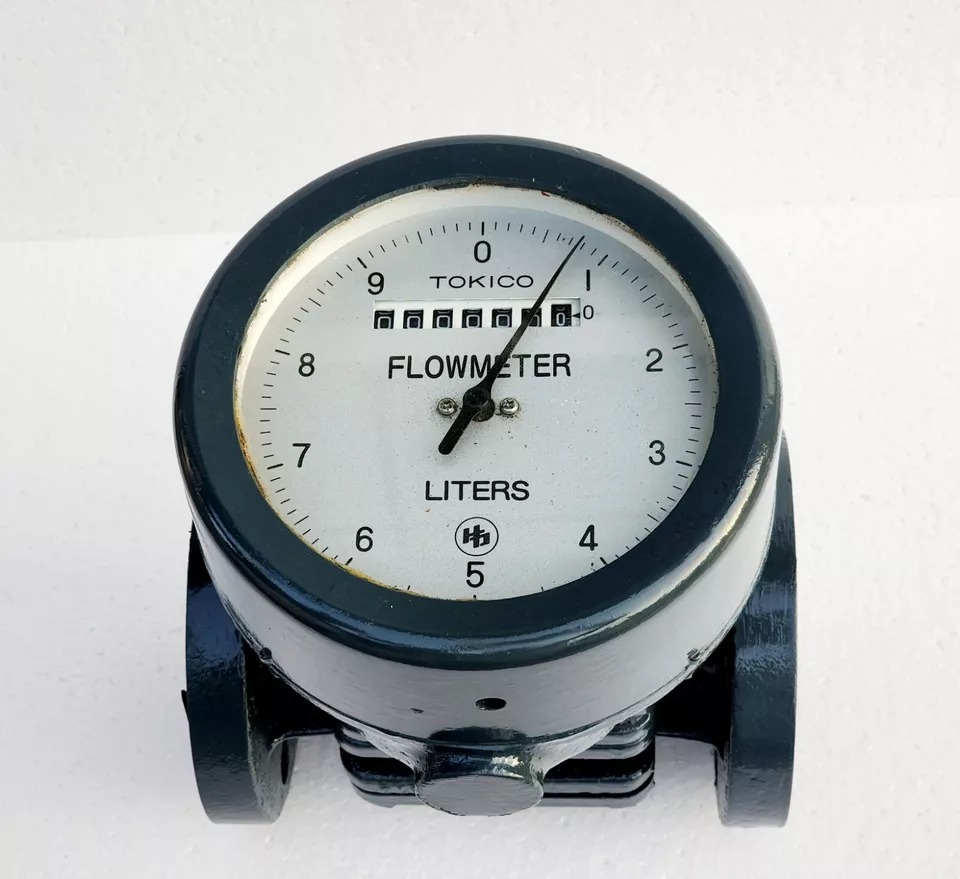

TOKICO TECHNOLOGY FR00438-02X OIL FLOW METER

The TOKICO TECHNOLOGY FR00438-02X is a high-precision positive displacement oil flow meter designed for accurate measurement of various oils, including kerosene, diesel, and heavy oils. With a nominal diameter of 40 mm (1.5 inches), it is well-suited for medium-volume flow applications.

Key Features:

• High Accuracy: Ensures measurement precision within ±0.5%, providing reliable data for critical operations.

• Compact Design: Its streamlined structure allows for easy installation without compromising readability or performance.

• Excellent Durability: Constructed with robust materials and a simple design, it offers long-term durability with minimal accuracy degradation.

Specifications:

• Flow Range: 0.1 to 6 cubic meters per hour (100 to 6,000 liters per hour)

• Maximum Working Pressure: 1 MPa (10 kgf/cm²)

• Hydraulic Test Pressure: 2 MPa (20 kgf/cm²)

• Maximum Working Temperature:

  • Kerosene, diesel/light oil: 50°C

  • Heavy oils (A, B, C): 100°C

• Flange Rating: JIS 10K FF

• Body Material: Cast iron (FC250)

• Rotor Material: Aluminum alloy die-cast (ADC12)

• Counter Unit: Totalizing counter (7 digits)

• Flow Direction: Right to left (standard)

• Painting Color: Munsell 1.4PB 3.1/1.2
