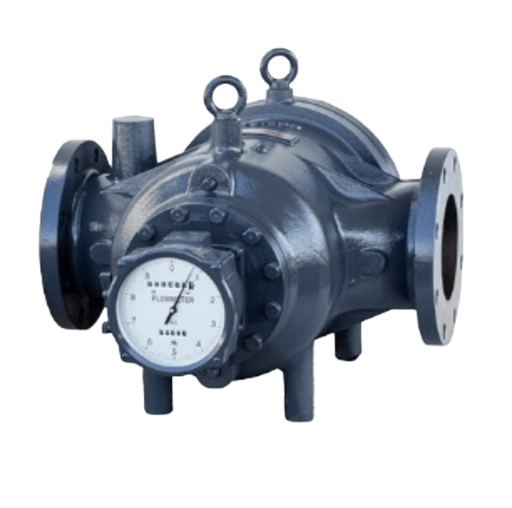

TOKICO Oil Flowmeter FRA Type (Mechanical)
Rp123000.00
Product Description:
The TOKICO Oil Flowmeter FRA Type (Mechanical) is designed for accurate measurement of large-volume oil flows, with a flow range between 0.6 and 200 m³/h. Utilizing roots-type rotors that rotate without physical contact, this flowmeter minimizes pressure loss and ensures long-term measurement accuracy.
Specifically built for large-scale industrial applications, the FRA Type offers exceptional durability and precision. Manufactured by TOKICO, a renowned leader in flow measurement technology, this flowmeter is highly reliable, even in demanding environments. Its design ensures extremely low pressure loss, making it ideal for applications where maintaining system efficiency is critical.
Key Features:
High Accuracy:
Maintains measurement accuracy over a long period, unaffected by wear or degradation.
Engineered for precise measurement of large oil volumes with minimal error.
Low Pressure Loss:
Roots rotors rotate without physical contact, reducing energy consumption and preserving system efficiency.
Exceptional Durability:
Constructed with high-quality materials to withstand continuous operation in industrial environments.
Large Capacity:
Capable of measuring flows up to 200 m³/h, making it suitable for large pipelines and distribution systems.
Applications:
Oil transportation and distribution in industrial facilities.
Large-scale oil storage and transfer systems.
Monitoring of lubrication oil in heavy machinery and equipment.
Precision measurement in oil-based processing industries.
Technical Specifications:
Brand: TOKICO
Model: FRA Type
Measurement Principle: Roots-type rotor mechanism
Applicable Fluids: Oil
Flow Range: 0.6 to 200 m³/h
Accuracy: ±0.5% of reading
Nominal Size: 150 mm (6 inches)
Material of Rotors: High-strength materials for non-contact operation
Pressure Loss: Extremely low due to non-contact rotor design
Indicator: Mechanical dial, large and easy to read
Temperature Range: (Specify based on catalog, e.g., -10°C to +80°C)
Pressure Rating: (Specify based on catalog, e.g., 10 bar or 145 PSI)
Connection Type: Flanged (ANSI/DIN standards)
Durability: Long-lasting with consistent performance over extended use
Mounting Orientation: Inline installation
