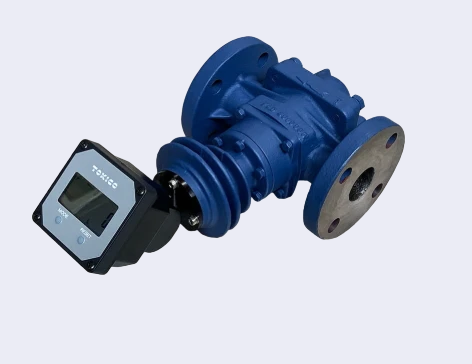

Tokico FRY Type Oil Flowmeter

The FRY Type Oil Flowmeter is designed for measuring the flow of heavy oils, lubricating oils, and other similar fluids. It features high accuracy and is ideal for industrial applications where precise flow measurement is essential. With a flow rate range from 0.1 to 15 m³/h, the FRY Type offers versatility for various operational needs.

This flowmeter is built to handle high fluid temperatures (up to 150°C) and is engineered to maintain performance in demanding conditions, ensuring reliable and long-lasting measurements. The FRY Type features a robust construction with FCD400 as the main body material, ensuring durability and resistance to wear and tear over time. The rotor and rotor shaft are designed for precision, ensuring stable and accurate flow readings even with highly viscous fluids.

It can be installed in either horizontal or vertical piping configurations, providing flexibility to meet various installation requirements.

Key Features:

• Wide Flow Rate Range:

  • Suitable for flow rates from 0.1 to 15 m³/h, covering a wide range of fluid flow.

• High Accuracy:

  • Ensures ±0.5% accuracy for precise flow measurements.

• Durability:

  • Designed to endure harsh environments with materials like FCD400 and SUS316 for extended service life.

• Fluid Compatibility:

  • Ideal for heavy oil, lubricating oil, and other similar fluids.

• Flexible Installation:

  • Supports both horizontal and vertical piping installations, offering versatility in various settings.

Applications:

• Heavy Oil:

  • For use in industries that require the measurement of heavy oils in refineries, power plants, or manufacturing.

• Lubricating Oil:

  • Suitable for lubrication systems in machinery and engines where precise oil measurement is crucial.

• Industrial Fluid Monitoring:

  • Can be used in industrial processes requiring the accurate monitoring of viscous fluids.

Technical Specifications:

• Model: FRY Type

• Applicable Fluids:

  • Heavy Oil, Lubricating Oil, and similar fluids

• Accuracy:

  • ± 0.5%

• Flow Rate Range:

  • 0.1 to 15 m³/h

• Fluid Temperature:

  • 0 to 150°C

• Maximum Working Pressure:

  • 1.0 MPa

• Fluid Viscosity:

  • Up to 300 mPa·s

• Connection Size:

  • 40 mm (1 1/2 inch) to 50 mm (2 inch)

• Flange Rating:

  • FCD400: JIS 10K FF

• Materials:

  • Main Body: FCD400 (for capacities 38-41 type)

  • Rotor: FC200

  • Rotor Shaft: SUS416 (hard chrome plating)

  • Bearing: FC

  • Driving Gear: SUS316

• Piping Installation:

  • Can be installed in horizontal or vertical piping configurations.

• Paint Color:

  • Munsell 2.5 PB 3.5/10
