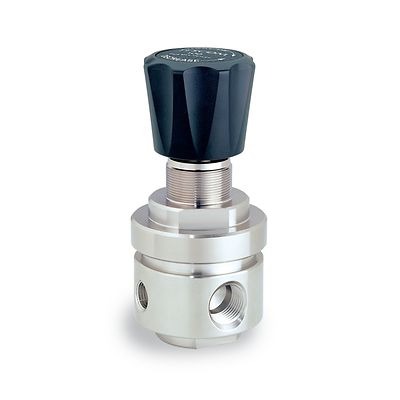

TESCOM 44-3200 Series Single Stage Gas Regulator

The TESCOM™ 44-3200 Series is a compact, high-flow, high-purity single-stage regulator designed for specialty, flammable, and industrial gas applications. It is ideal for use in laboratory and point-of-use gas systems, laser assist and resonator gases, and glove boxes. With a diffusion-resistant metal diaphragm seal, it ensures gas purity and integrity.

Key Features

• True Metal-to-Metal Diaphragm Seal: Minimizes diffusion for maintaining gas purity.

• Multiple Outlet Pressure Ranges: Available in 0-25, 0-50, 0-100, 0-150 psig / 0-1.7, 0-3.4, 0-6.9, 0-10.3 bar.

• Gauge Ports: Standard inclusion for easy monitoring.

• Optional High Flow Model: Cv = 1.8 for higher flow requirements.

• Panel Mounting: Optional for customized installations.

• Flanged End Connections: Available for specific needs.

• Non-Venting: Standard configuration.


Specifications

• Maximum Inlet Pressure: 500, 3000 psig / 34.5, 207 bar

• Outlet Pressure Ranges: 0-25, 0-50, 0-100, 0-150 psig / 0-1.7, 0-3.4, 0-6.9, 0-10.3 bar

• Body Material: Brass, 316 Stainless Steel

• Seat Material: CTFE for 3000 psig / 207 bar inlet; Teflon® for 500 psig / 34.5 bar inlet

• Bonnet: 300 Series Stainless Steel

• Diaphragm: 316 Stainless Steel, Elgiloy®

• Seal: Teflon®

• Seat Retainer: Nitronic 60

• Remaining Parts: 316 Stainless Steel

• Port Size & Type: 3/8, 1/2 NPTF; 1/2, 1 Flange

• Operating Temperature: -40°F to 140°F / -40°C to 60°C

• Flow Capacity: Cv = 1.0, 1.8 (Optional)

• Load Type: Spring

• Weight (without gauges): 3.5 lbs / 1.6 kg
