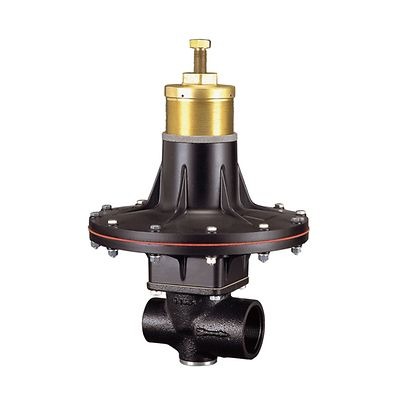

Tartarini RP Series Spring-Loaded Pressure Reducing Regulators

The Tartarini RP Series are direct-operated, non-balanced trim pressure reducing regulators. Typically equipped with a built-in filter, these regulators are available in three versions: RP/011, RP/022, and RP/033. A shutoff valve can be added to any model for added safety and control. The RP Series complies with the Pressure Equipment Directive (PED 97/23/EC) and is classified in Max. Category I, ensuring safety and reliability for various applications.

Key Features

• Fail to open regulator design for safety and performance.

• High precision control for accurate pressure regulation.

• Wide regulator pressure range for versatile application.

• Easy maintenance without the need to remove the body from the pipeline.

• OPSO and UPSO slam shut valve for overpressure protection and safety.

• Manual reset for added control and convenience.

• Inlet and outlet in-line configuration for flexible installation.


Specifications

• Available Versions:

  • RP/011

  • RP/022

  • RP/022 without slam-shut

  • RP/011/66

  • RP/022/66

  • RP/033/66 with slam-shut

• Body Allowable Pressure: 20 bar

• Inlet Pressure Range: 0.2 to 20 bar

• Set Range:

  • RP022/033: 0.1 to 4 bar

  • RP/011: 0.1 to 2 bar

• Accuracy Class: Up to ± 5%
