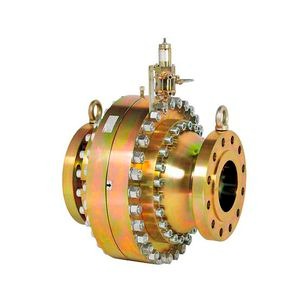

Tartarini FL Series Gas Pressure Regulator - Membrane / Multi-Stage / High-Pressure

The Tartarini™ FL Series Gas Pressure Regulator is a high-performance, membrane-operated, multi-stage gas pressure regulator designed for precise control in high-pressure gas applications. The FL series is engineered to provide stable and accurate pressure regulation, even in demanding conditions where both high inlet pressures and varying flow rates are common. Ideal for a wide range of industries including natural gas, industrial gas distribution, and process systems, this regulator is built to ensure safety, reliability, and efficiency in critical gas flow applications.

Specifications

• Manufacturer: Emerson (Tartarini™)

• Model: FL Series (Gas Pressure Regulator)

• Regulator Type: Membrane-operated, multi-stage gas pressure regulator

• Function: Provides precise pressure regulation by reducing high inlet pressures to a stable and controlled outlet pressure.

• Inlet Pressure Range: 1 to 1000 bar (depending on model and configuration)

• Outlet Pressure Range: 0.1 to 50 bar (adjustable to meet specific application requirements)

• Flow Capacity: Available in multiple sizes and flow rates, typically ranging from low flow (SCFH) to high-flow applications (Nm³/h)

• Temperature Range:

  • Standard models: -40°F to 140°F (-40°C to 60°C)

  • Optional high-temperature versions: Up to 250°F (121°C)

• Materials:

  • Body: Cast Steel or Stainless Steel (depending on configuration)

  • Internal Components: Stainless steel and corrosion-resistant alloys for longevity and reliability

  • Elastomers: Nitrile, Viton, or other elastomers based on the application requirements

• Pilot Type: Single or dual-stage diaphragm-operated pilot valve for fine pressure adjustment and control

• Connections:

  • Inlet: Flanged or threaded connections (NPT, BSP, ANSI)

  • Outlet: Flanged or threaded connections

• Accuracy: ±2% of set pressure (standard), with options for higher precision

• Size Options: Available in various sizes to accommodate different pressure and flow needs

• Compliance: Meets industry standards, including ISO, ANSI, and API, depending on application

Key Features

1. Multi-Stage Pressure Regulation: The FL Series employs a multi-stage design, ensuring smooth pressure reduction and minimizing system pressure fluctuations under varying flow conditions.

2. Membrane-Controlled Operation: The membrane actuation provides a more precise and responsive pressure control mechanism, offering improved stability and accuracy.

3. High-Pressure Capability: Designed for high-pressure applications, the FL series can handle inlet pressures up to 1000 bar, making it suitable for industrial gas systems that require robust and reliable pressure control.

4. Flexible Adjustment: The outlet pressure is adjustable to meet specific operational needs, offering a range of outlet pressures from 0.1 bar to 50 bar.

5. Durable Construction: The FL Series regulator is built with high-quality materials such as stainless steel and cast steel, ensuring long-term reliability and resistance to corrosion and wear.

6. Wide Temperature Range: With models available for both standard and high-temperature environments, the FL Series can be used in diverse industrial applications.

7. Safety and Reliability: The regulator is designed with safety features to prevent overpressure conditions and ensure reliable performance in critical applications.

Applications

The Tartarini™ FL Series Gas Pressure Regulator is ideal for controlling gas pressure in a variety of high-pressure applications:

• Natural Gas Distribution: Regulating pressure for pipelines and gas distribution networks.

• Industrial Gas Systems: Managing the pressure of gases such as nitrogen, oxygen, and argon in industrial processes.

• Chemical & Petrochemical Plants: Regulating gas pressure in reactors, furnaces, and other critical systems.

• Energy & Power Generation: Managing the pressure of gas in power plants, including turbines and gas engines.

• CNG (Compressed Natural Gas) Systems: Regulating pressure in CNG filling stations and other fueling systems.

• Water & Wastewater Treatment: Pressure regulation for gas-powered systems in treatment plants.

• HVAC: Regulating pressure in gas-fired boilers and heating systems.
