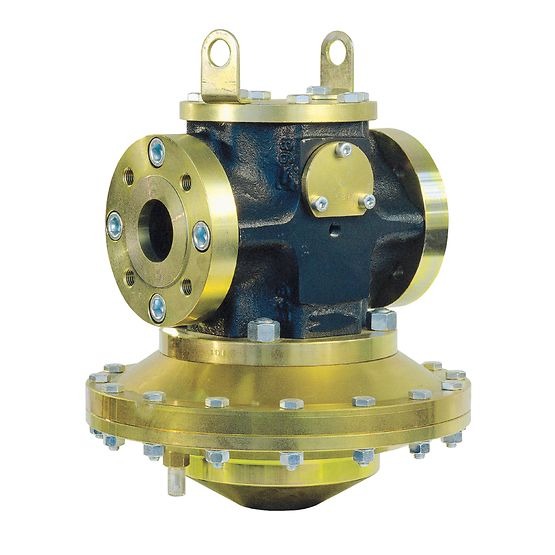

Tartarini Cronos Series Pressure Reducing Regulators
Rp123000.00
The Cronos Series regulators are high-performance, pilot-operated, pressure-balanced, and soft-seated devices designed for critical applications such as high-pressure transmission systems, city gates, large capacity distribution networks, and power plant feeds. These regulators ensure smooth, quiet operation, tight shutoff, and long-lasting durability, making them ideal for maintaining stable pressure in demanding systems.
Key Features
Control Accuracy: Delivers precise pressure regulation across a wide range of inlet and outlet pressures.
Versatility: Available in multiple configurations to meet various system requirements, including options with shutoff and monitoring.
Tight Shutoff: Ensures minimal leakage for a secure, controlled environment.
No Atmospheric Bleed: Prevents air or gas from being released into the atmosphere, enhancing system efficiency.
High Capacity: Capable of handling large flows without compromising performance.
Quiet Operation: Designed for noise reduction, providing smooth, silent operation even under high-pressure conditions.
In-Service Travel Indicator: Allows for easy monitoring of the regulator’s operation status.
Silencer Options: Available with SR and SRS silencers to reduce operational noise further.
Specifications
Available Configurations:
Type C: Regulator only
Type CB: Regulator + Shutoff
Type CC: Regulator + Monitor
Type CCB: Regulator + Monitor + Shutoff
90° flow versions available (Types CBS, CCS, and CBS)
Body Sizes:
Cronos Series: DN 25, 50, and 80 / NPS 1, 2, and 3
Cronos Series with Type SRS Silencer or Widened Outlet: DN 25 x 100, 50 x 150, and 80 x 250 / NPS 1 x 4, 2 x 6, and 3 x 10
End Connection Styles:
CL150, CL300, CL600, PN16; PN16 EN, PN25
Inlet Pressure Range:
Flange Rating PN16, CL150: 0.2 to 20 bar / 2.9 to 290 psig
Flange Rating PN25, CL300, CL600: 1 to 100 bar / 1.45 to 1450 psig
Outlet Pressure Range:
Flange Rating PN 16, 25 / CL150: 0.01 to 8 bar / 0.15 to 11.6 psig
Flange Rating CL300, CL600: 0.5 to 80 bar / 7.3 to 1160 psig
Minimum Operating Differential Pressure:
Flange Rating PN 16, 25 / CL150: 0.2 bar / 2.9 psig
Flange Rating CL300, CL600: 0.5 bar / 7.3 psig
Temperature Capabilities: Consult product bulletin for details.
