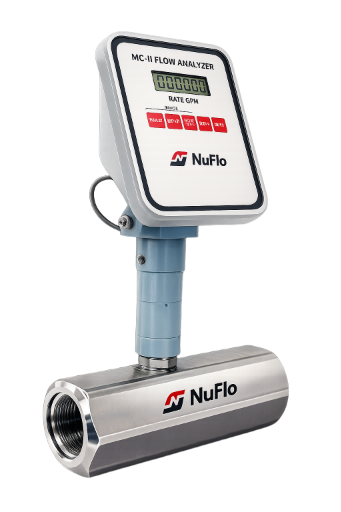

CAMERON NUFLO MC-II Flow Analyzer
Rp123000.00
Product Description
The NUFLO™ MC-II™ Flow Analyzer by Cameron is a high-performance digital flow computing instrument designed for accurate monitoring of liquid and gas flow applications. Engineered for use with NUFLO™ and BARTON® turbine flow meters, the MC-II provides continuous digital indication of both instantaneous flow rate and accumulated total flow.
Utilizing low-power CMOS microprocessor technology and liquid crystal displays (LCD), the analyzer delivers reliable long-term operation with minimal power consumption. Powered by a single lithium battery, the unit typically operates continuously for three to five years without battery replacement.
The MC-II allows flexible configuration of engineering units and calibration parameters directly through the front keypad. Designed for harsh industrial environments, the analyzer is weather-resistant and suitable for outdoor installations. It can be mounted directly on the turbine meter or installed remotely for greater installation flexibility.
Technical Specifications
Parameter | Specification |
|---|---|
Model | NUFLO™ MC-II™ Flow Analyzer |
Application | Liquid and Gas Turbine Flow Measurement |
Display Type | LCD Digital Display |
Displayed Functions | Flow Rate and Totalized Flow |
Display Digits | Six (6) Digits |
Power Supply | One 3.6 V Lithium Battery |
Typical Battery Life | 3 – 5 Years |
Typical Current Consumption | 200 µA |
Input Frequency Range | 0 to 3500 Hz |
Input Signal Amplitude | 30 to 3000 mV Peak-to-Peak |
Calibration Factor Range | 0.001 to 999,999 |
Measurement Units | Standard: bbl and bpd (Custom units available) |
Accuracy | ±1 Count (Totalizer) |
Operating Temperature Range | -40°F to 140°F (-40°C to 60°C) |
Installation | Direct Mount or Remote Mount |
Environmental Protection | Suitable for Outdoor Installation |
Dimensions | 7.3 in (W) × 8.3 in (H) × 3.4 in (D) |
Weight | Approx. 6 lb Including Shipping Container |
Standard Features
Continuous digital indication of flow rate and accumulated total
Low power consumption for extended battery life
Front-panel keypad for quick calibration and configuration
Weather-resistant enclosure suitable for outdoor service
Compatible with NUFLO™ and BARTON® turbine flow meters
Flexible engineering unit configuration
Direct or remote mounting capability
Optional Features
Configuration Options
Custom totalizer and flow rate engineering units
Password-protected totalizer reset
Password-protected calibration access
Remote Mounting Kit
Stainless steel mounting hardware
Suitable for 2-inch nominal horizontal or vertical pipe installation
Standard 10 ft signal cable assembly
Extended cable lengths available upon request
Pulse Output Options
Intrinsically Safe Outputs (50–60 ms Duration)
Output Type | Specification |
|---|---|
Dry Contact Relay | 5 V Coil, 200 mA Max, 6 VDC Max |
Open Collector Transistor | 200 mA Max, 6 VDC |
Optically Isolated Transistor | 100 mA Max, 6 VDC |
Non-Intrinsically Safe Outputs (50–60 ms Duration)
Output Type | Specification |
|---|---|
Relay Output | 5 V Coil, 0.5 mA Max, 30 VDC Max, 10 W Resistive |
Relay Output | 12 V Coil, 0.5 mA Max, 30 VDC Max, 10 W Resistive |
Relay Output | 24 V Coil, 0.5 mA Max, 30 VDC Max, 10 W Resistive |
Open Collector Transistor | 0.3 mA Max, 30 VDC Max |
Optically Isolated Transistor | 0.1 mA Max, 30 VDC Max |
Typical Applications
Oil & Gas Production
Custody Transfer Systems
Chemical Injection Monitoring
Process Flow Measurement
Pipeline Metering Systems
Water and Utility Applications
Industrial Flow Monitoring Systems
