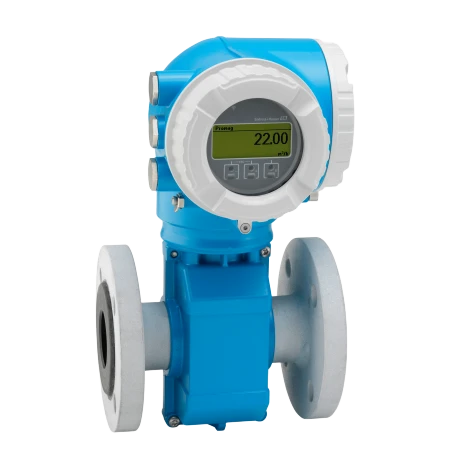

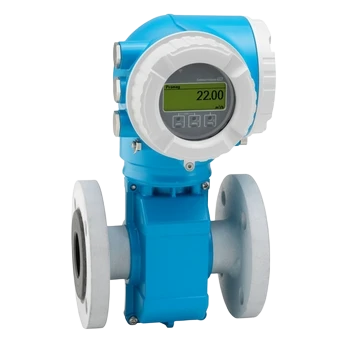

Endress+Hauser Proline Promag W 300 Electromagnetic Flowmeter

Supplier Endress+Hauser Promag W 300

Rp123000.00

Endress+Hauser Proline Promag W 300 Electromagnetic Flowmeter

Product Description

The Proline Promag W 300 is a high-performance electromagnetic flowmeter specifically engineered for demanding water and wastewater applications, both industrial and municipal. It features a compact, robust sensor design combined with a highly accessible and intelligent transmitter, ensuring reliable long-term operation even in harsh environments.

Thanks to its electromagnetic measuring principle, the Promag W 300 provides stable and accurate flow measurement without pressure loss and requires no inlet or outlet straight pipe runs (0 × DN). This makes it an ideal solution for installations with limited space while maintaining consistent measurement accuracy over time.

The device is fully compliant with international drinking water standards, supports a wide range of communication protocols, and integrates Heartbeat Technology for in-situ verification and diagnostics, improving plant availability and reducing maintenance costs.

Measuring Principle

Electromagnetic

Key Advantages

Specialist solution for water and wastewater applications
Constant measurement accuracy with no pressure loss
0 × DN inlet run requirement
Robust, fully welded sensor for long-term operation
Compact dual-compartment transmitter housing
Integrated Heartbeat Technology for verification and diagnostics
Approved for industrial and municipal water measurement

Sensor Features

Flexible engineering with fixed or lap-joint process connections
Completely welded, heavy-duty sensor design
Sensor compliant with industry-specific requirements
Certified for international drinking water applications

Transmitter Features

Full access to process, diagnostic, and verification data
Freely configurable and combinable I/O functionality
Reduced system complexity through flexible I/O configuration
Integrated Heartbeat Technology
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Optional remote display

Technical Specifications

Nominal Diameter Range

DN 25 to DN 3000 (1" to 120")

Measured Variables

Volume flow
Conductivity
Mass flow

Measuring Range

0.5 m³/h to 263,000 m³/h
(2.5 gal/min to 1,665 Mgal/day)

Measurement Accuracy

Standard: ±0.5 % of reading ± 1 mm/s (0.04 in/s)
Optional (Flat Spec): ±0.2 % of reading ± 2 mm/s (0.08 in/s)

Wetted Materials

Liner: Polyurethane, Hard Rubber, PTFE
Electrodes:
- 1.4435 (316L)
- Alloy C22 / 2.4602 (UNS N06022)
- Tantalum

Process Conditions

Medium Temperature Range

Hard rubber liner: 0 to +80 °C (+32 to +176 °F)
Polyurethane liner: –20 to +50 °C (–4 to +122 °F)
PTFE liner: –20 to +90 °C (–4 to +194 °F)

Maximum Process Pressure

PN 40
Class 300
JIS 20K

Ambient Temperature Range

Carbon steel flange: –10 to +60 °C (+14 to +140 °F)
Stainless steel flange: –40 to +60 °C (–40 to +140 °F)

Housing Materials

Sensor Housing

DN 25 to 300: AlSi10Mg, coated
DN 25 to 2400: Carbon steel with protective varnish
Sensor connection housing (standard): AlSi10Mg, coated
Sensor connection housing (option): Polycarbonate or 1.4409 (CF3M, equivalent to 316L)

Transmitter Housing
