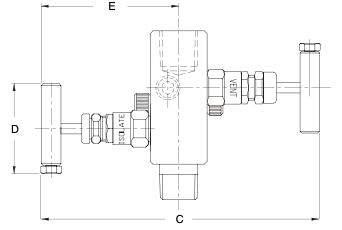

ALCO VALVES – 2VG Series In-Line 2 Valve Manifold

ALCO VALVES – 2VG Series In-Line 2 Valve Manifold

The ALCO VALVES 2VG Series is a compact and robust in-line 2-valve gauge manifold engineered for reliable process isolation and controlled venting in high-pressure instrumentation applications. Designed for demanding industrial environments, the 2VG Series delivers exceptional sealing performance, extended service life, and enhanced operational safety.

General Description

The 2VG Series provides single process isolation combined with venting capability in a slim-line manifold design. Unlike the 2VR Series, the 2VG configuration can be supplied with male inlet and female outlet connections, offering greater installation flexibility.

Manufactured with precision-engineered metal-to-metal seating and body-to-bonnet sealing technology, the manifold ensures bubble-tight shut-off performance under both extreme pressure and temperature conditions. The non-rotating hardened valve tip design minimizes wear and extends operational life.

An integrated anti-vibration cam locking mechanism at the bonnet connection enhances safety and prevents loosening during service in high-vibration applications.

Key Features

• Available pressure ratings:

  • 6,000 psi

  • 10,000 psi

• Compact and slim-line manifold design

• Single isolation and vent valve configuration

• Metal-to-metal seat and bonnet sealing for high-integrity shut-off

• Non-rotating hardened valve tips for reduced wear and longer service life

• Positive no-slack stem action

• Anti-vibration bonnet locking cam safety device

• Vent port supplied plugged as standard

• Ingress seals fitted as standard

• Full material traceability

• 100% hydrostatic pressure tested

• Optional handwheels and locking devices available

• Repair and maintenance kits available for extended field service life

Temperature Ratings

• Standard operating temperature:

  • -50°C to +230°C

• Optional GP packing:

  • Up to +570°C at reduced pressure ratings

Materials and Construction

• Standard valve tips manufactured from hardened 17-4PH stainless steel

• Two-piece non-rotating tip design for bubble-tight shut-off

• Metal-to-metal body-to-bonnet sealing suitable for high-pressure and high-temperature service

• Materials available in compliance with NACE MR-01-75 latest revision for sour gas applications

Vent Connection

• Standard vent port:

  • 1/4” NPT

  • Supplied plugged as standard for safety

Optional Extended Versions

Extended bonnet configurations are available for high-temperature insulation or accessibility requirements:

• 2” Extended Version

  • Example: 2VG4NS – EXT. 2"

• 4” Extended Version

  • Example: 2VG4NS – EXT. 4"

Typical Applications

• Pressure gauge isolation

• Instrumentation systems

• Oil & gas processing

• Petrochemical facilities

• Power generation plants

• High-pressure process control systems
