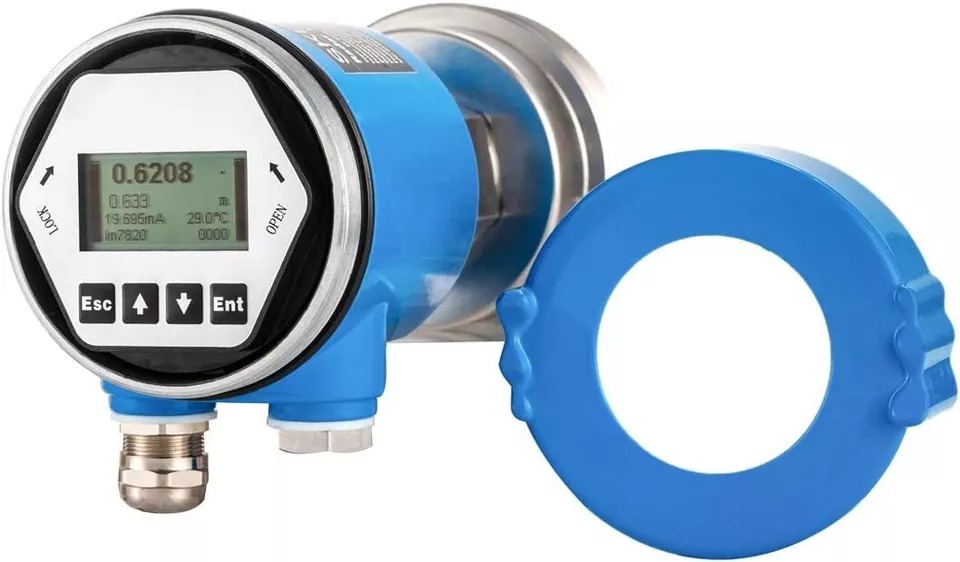

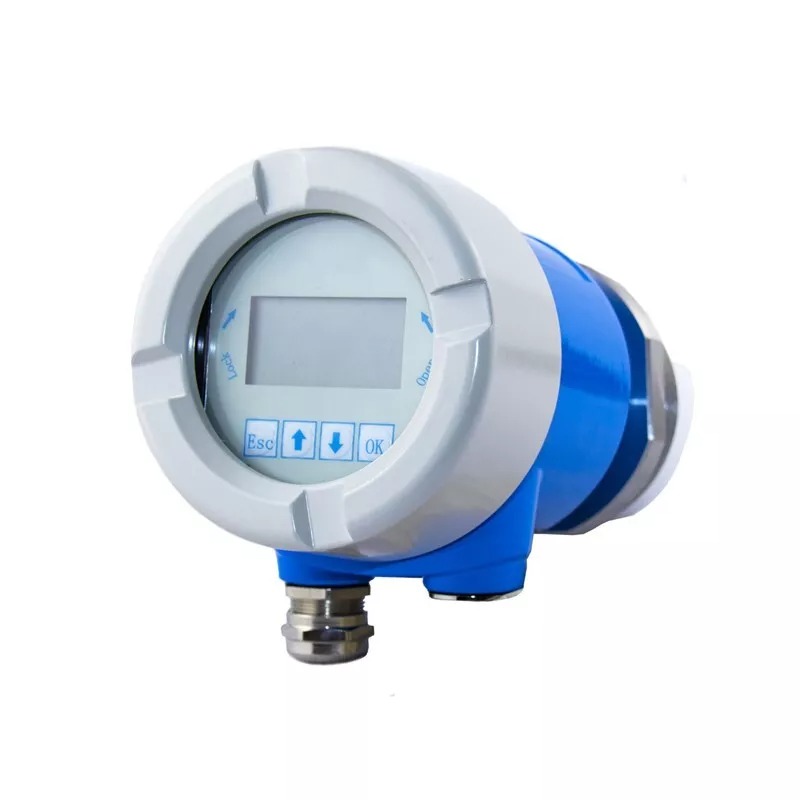

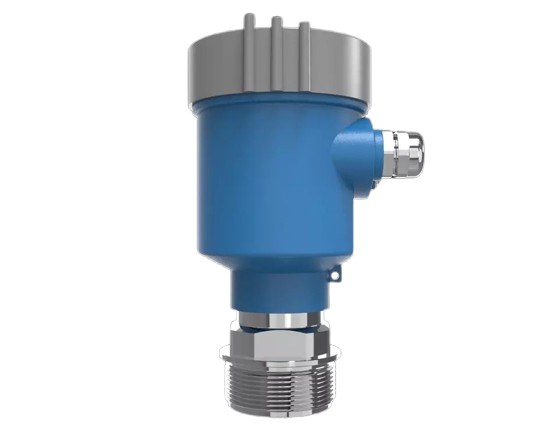

SKE 80G Radar Level Transmitter - Water, Liquid, Oil Sensor with 4-20mA Modbus+HART Output
Rp123000.00
The SKE 80G Radar Level Transmitter is a cutting-edge device designed for precise and reliable level measurement in various applications, including water, liquid, and oil tanks. It utilizes radar technology to provide accurate, continuous, and non-contact level measurement for both liquids and solids, making it ideal for industrial processes. The transmitter supports a variety of communication protocols, including 4-20mA, Modbus, and HART, allowing easy integration with control systems and ensuring a high degree of compatibility with existing setups.
Product Features
Non-Contact Radar Measurement: The SKE 80G uses radar waves to measure the level of liquids or solids without making direct contact with the medium, ensuring no wear and tear, and preventing contamination or damage to the sensor.
High Accuracy: The device provides precise level measurement, even under challenging conditions such as foam, agitation, or vapors. The radar technology is unaffected by changes in temperature, pressure, or density, ensuring consistent and reliable readings.
Wide Measurement Range: Capable of measuring levels from 0 to 30 meters, the SKE 80G is suitable for a variety of applications in water treatment, chemical processing, and oil storage.
Flexible Output Options: With support for 4-20mA, Modbus, and HART communication protocols, the transmitter allows for easy integration into control systems for real-time monitoring and remote access to data.
Versatile Applications: The radar level transmitter can be used in various industries, including water, oil, chemical, and food processing, making it highly versatile for different types of liquids and solids.
User-Friendly Interface: The SKE 80G is equipped with an easy-to-read display and a simple configuration interface, allowing operators to set up and calibrate the device with minimal effort.
Built for Harsh Environments: Constructed from durable materials, the sensor is designed to withstand high temperatures and pressures, as well as the chemical aggressiveness of certain substances. Its robust design ensures longevity in even the most demanding conditions.
Reliable Communication: With Modbus and HART protocols, the SKE 80G ensures efficient data transmission and easy diagnostics for system integration and maintenance.
Specifications
Model: SKE 80G Radar Level Transmitter
Measurement Principle: Radar (non-contact level measurement)
Measurement Range: 0-30 meters (depending on application)
Accuracy: ±3mm or better
Output Signal: 4-20mA, Modbus RTU, HART
Power Supply: 24V DC (Nominal)
Ambient Temperature: -40°C to +80°C (-40°F to +176°F)
Process Temperature: -40°C to +200°C (-40°F to +392°F)
Process Pressure: Up to 40 bar (580 psi)
Display: Optional LCD display for local monitoring
Enclosure Rating: IP67, suitable for outdoor and harsh environment use
Mounting: Top or side mounting options available
Material: Stainless Steel (316L) for sensor and housing
Connection: Flange or threaded connection (various options)
Approval Standards: CE, ATEX, IECEx (for hazardous areas)
Protection Class: IP67 (dust-tight and waterproof)
Calibration: Fully configurable for different media and installation conditions
Applications
Water Treatment: Monitoring water levels in treatment tanks, reservoirs, or storage basins.
Oil and Gas: Measurement of oil levels in storage tanks, separators, and pipelines.
Chemical Industry: Precise level measurement in chemical reactors, distillation columns, and storage tanks.
Food and Beverage: Used for inventory and level measurement in food processing and storage tanks.
Power Generation: Level measurement in cooling water tanks, boilers, and condensers.
