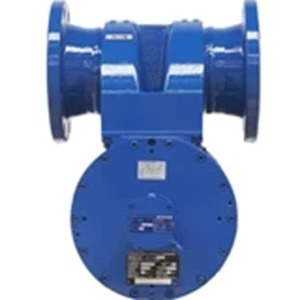

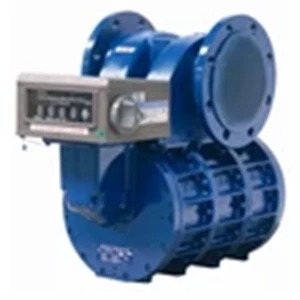

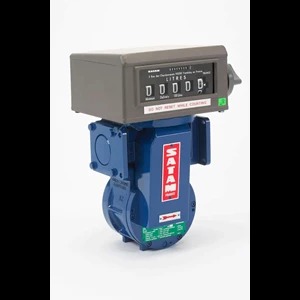

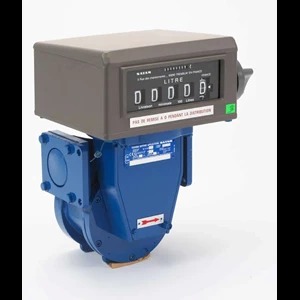

SATAM Positive Displacement Meter
SATAM Positive Displacement Meter
Rp123000.00
Product Description:
The SATAM Positive Displacement Meter is a sophisticated metering system engineered to accurately measure white petroleum products, including fuels, bio-fuels, and refined liquid hydrocarbons. Featuring a robust design with two pairs of freely-moving blades and a single moving rotor, this meter ensures high precision and stability in flow measurement. Its durable construction and modular design result in low maintenance costs and reliable performance over extended periods. The SATAM meter is well-suited for use in oil depots, hydrocarbon transportation, aircraft refueling, military operations, marine, transport companies, and mining, thriving in diverse and demanding environments. Its reduced pressure loss and customizable design make it a versatile choice for various measurement needs.
Specifications:
Volume Accuracy: < 0.15% (Option for < 0.10%)
Repeatability: < 0.02%
Reduced Pressure Loss: 0.3 to 0.5 bar at maximum flow rate
Models and Measuring Range:
ZC17-12: DN50, 1.2 to 12 m³/h
ZC17-24: DN50, 2.4 to 24 m³/h
ZC17-48: DN50, 4.8 to 48 m³/h
ZC17-80: DN80, 8 to 80 m³/h
ZC17-150: DN100, 15 to 150 m³/h
ZC17-250: DN150, 25 to 250 m³/h
ZC17-330: DN200, 33 to 330 m³/h
This detailed overview highlights the SATAM Positive Displacement Meter's precision, versatility, and application suitability, providing essential information for evaluating its performance in various industrial settings.
