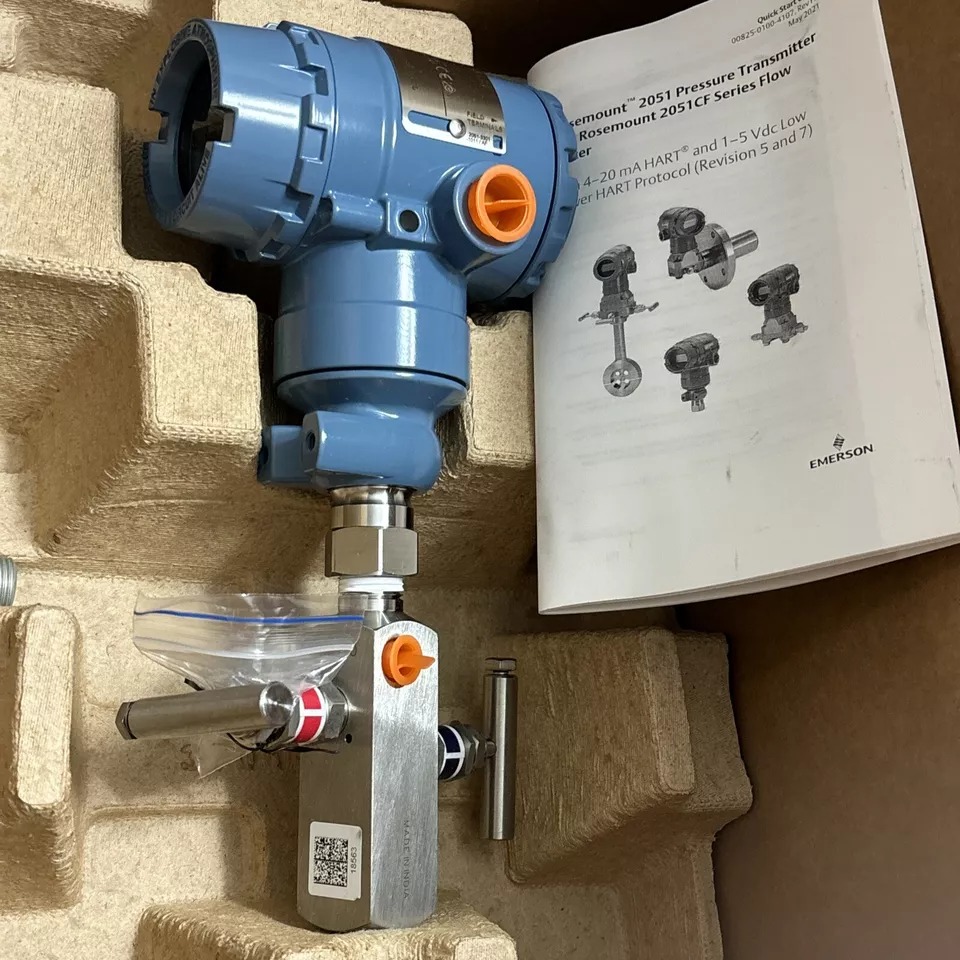

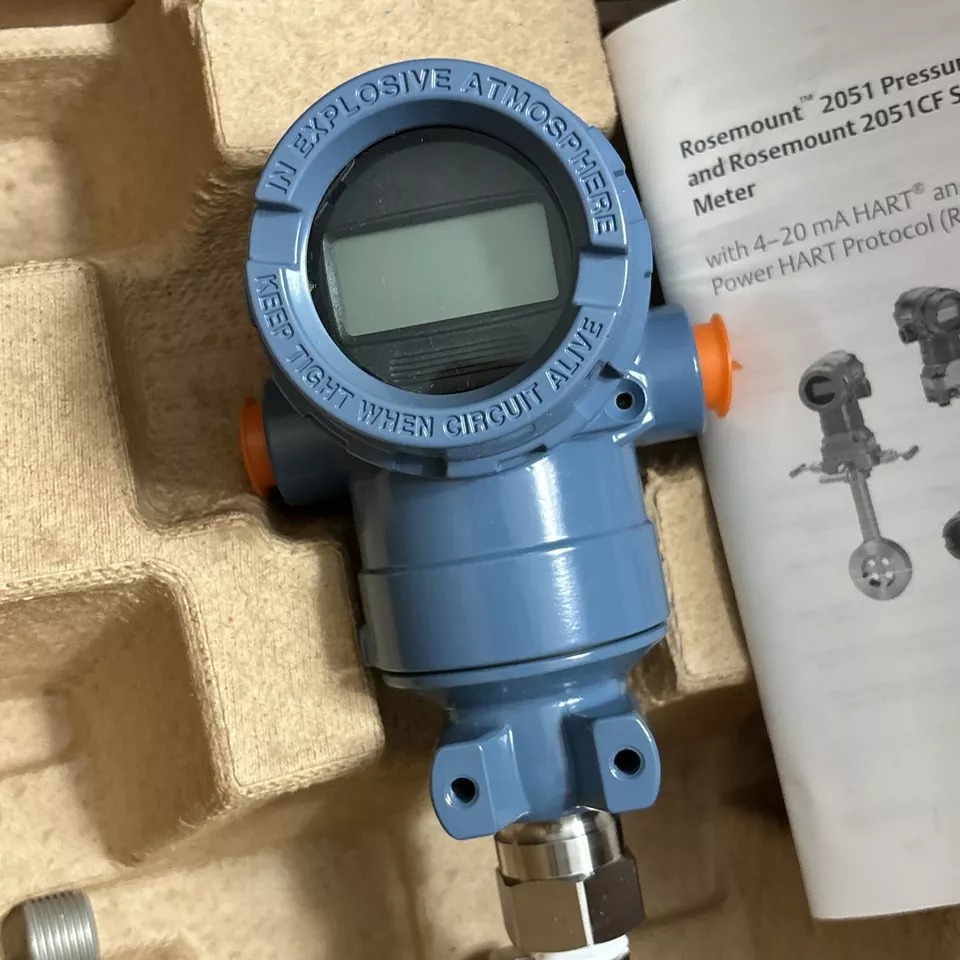

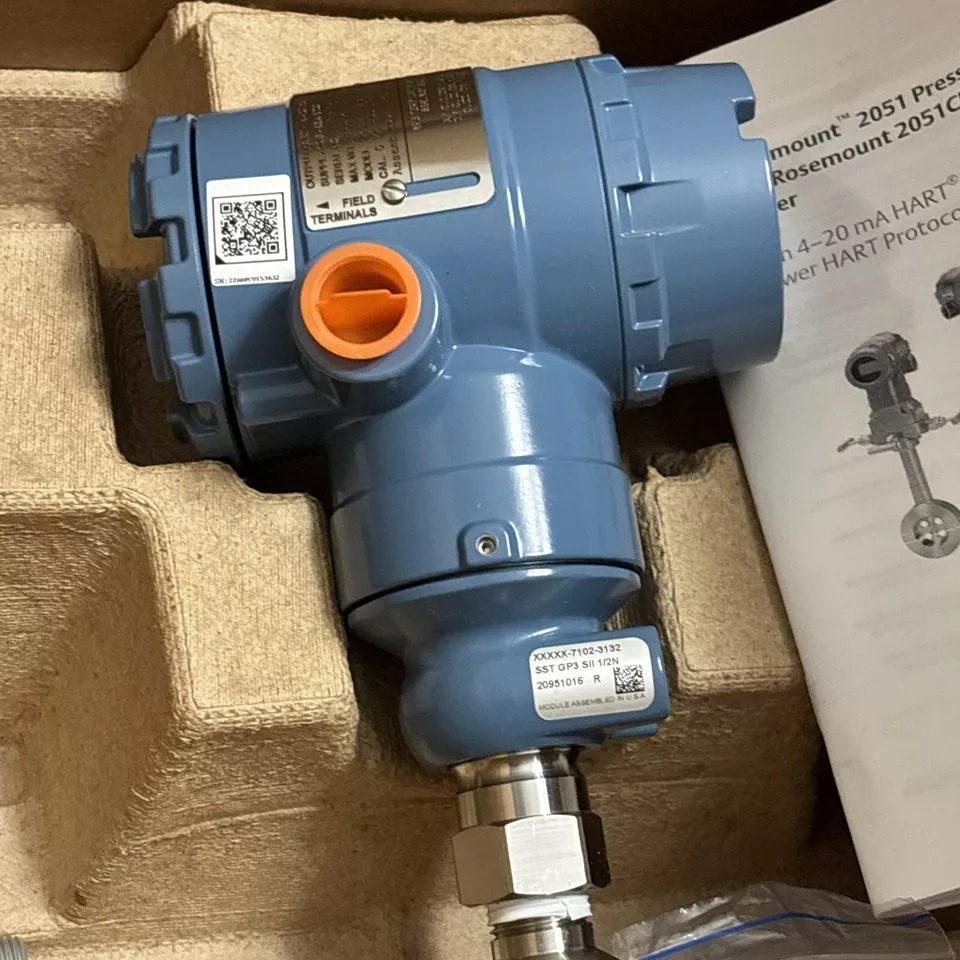

Rosemount , Emerson Pressure Transmitter 2051TG3 , 2051 TG 3, Hart 4-20 mA

Description:
The Rosemount 2051TG3 Pressure Transmitter from Emerson is a high-performance device designed for measuring process pressure with exceptional accuracy and long-term reliability. It utilizes the advanced HART communication protocol, allowing for remote configuration and diagnostic capabilities for better maintenance and operation. Suitable for a wide range of industries, including oil & gas, chemical, water treatment, and power generation, the Rosemount 2051TG3 offers versatility, ease of integration, and robust performance in harsh environments.

This transmitter is engineered to offer long-term stability, high accuracy, and reduced downtime. It is highly compatible with existing control systems and is known for its ease of use and fast installation. The 4-20 mA output allows it to interface seamlessly with a wide variety of control systems and process monitoring devices.

Key Features:

• Advanced HART Communication: Provides 4-20 mA analog output and HART digital communication for easy configuration and diagnostics.

• High Accuracy: Delivers ±0.075% of span accuracy, ensuring precise pressure measurements for critical processes.

• Flexible Mounting Options: Available with direct or remote mounting for easy installation in various applications.

• Wide Operating Range: Operates within a wide range of pressure and temperature conditions, suitable for different process requirements.

• Low Power Consumption: Designed for efficient operation, reducing energy consumption in industrial applications.

• Enhanced Diagnostics: Offers built-in diagnostics to help prevent unplanned downtime and optimize process efficiency.

• Robust and Reliable: Constructed for reliable, long-lasting operation in harsh environments.

• Approvals and Certifications: Meets multiple industry standards and certifications, such as ATEX, FM, CSA, and CE.

Technical Specifications:

• Model: Rosemount 2051TG3 Pressure Transmitter

• Output: 4-20 mA with HART Communication Protocol

• Accuracy: ±0.075% of span

• Power Supply: 12-42 VDC

• Process Temperature: -40°C to +85°C (-40°F to +185°F)

• Pressure Range: Up to 5000 psi (configurable based on application)

• Process Connections: Available in a range of options (threaded, flanged, sanitary)

• Communication Protocol: HART (Highway Addressable Remote Transducer)

• Enclosure Rating: IP66/67 for protection against dust and water ingress

• Display: Optional local display for process monitoring

• Mounting: Available in both direct and remote mounting configurations

• Certifications: CE, ATEX, FM, CSA, and other global certifications

• Materials: Stainless steel housing, optional materials for corrosive environments.

Applications:

• Oil & Gas: Pressure measurement in wells, pipelines, separators, and storage systems.

• Chemical and Petrochemical: Accurate monitoring of process pressure in reactors, distillation columns, and pipelines.

• Water and Wastewater Treatment: Used in pumps, filtration, and distribution systems.

• Power Generation: For monitoring pressure in turbines, steam drums, and condensers.

• Pharmaceutical: Pressure control in cleanroom environments and critical process operations.
