Rosemount 8800 Reducer Vortex Flow Meter

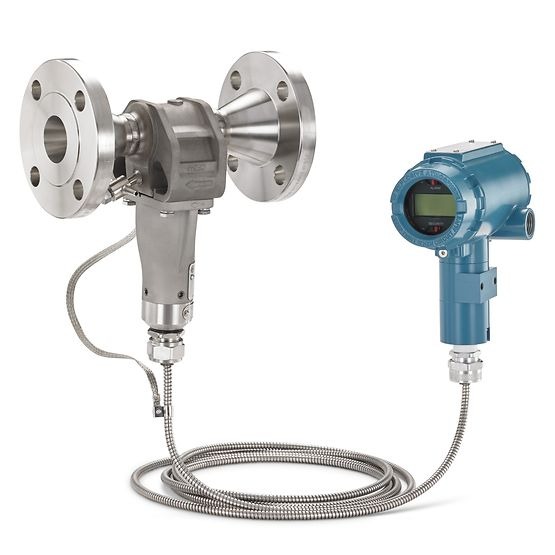

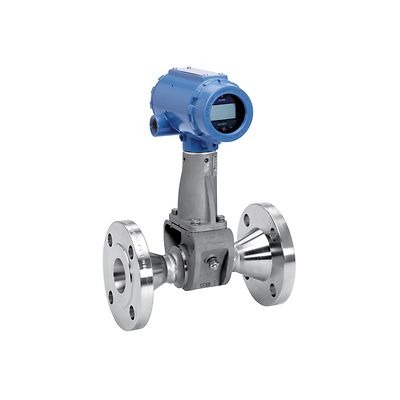

The Rosemount 8800 Reducer Vortex Flow Meter combines the reliable electronics, sensor, and meter body of the renowned Rosemount 8800 Series with integral reducers, offering accurate flow measurement at lower flow rates. This smart design eliminates the need for field assembly and welding of separate reducers and piping, reducing installation costs and project risks. Additionally, the face-to-face dimensions of the Rosemount 8800 Reducer match those of the traditional 8800 Series, providing unparalleled versatility for a wide range of applications.

Specifications

• Accuracy:

  • ±0.70% of mass flow rate in water with the 8800 MultiVariable (MTA/MCA option)

  • ±2% of mass flow in steam with the 8800 MultiVariable (MTA/MCA option)

  • ±1.3% of rate at 30 psia through 2,000 psia in steam with the 8800 MultiVariable (MPA option)

  • ±1.2% of rate at 150 psia in steam with the 8800 MultiVariable (MCA option)

  • ±1.3% of rate at 300 psia in steam with the 8800 MultiVariable (MCA option)

  • ±1.6% of rate at 800 psia in steam with the 8800 MultiVariable (MCA option)

  • ±2.5% of rate at 2,000 psia in steam with the 8800 MultiVariable (MCA option)

  • ±0.65% of volumetric rate for liquids (uncompensated)

  • ±1% of volumetric rate for gas and steam (uncompensated)

• Turndown: 38:1

• Output Options:

  • 4-20 mA with HART® 5 or 7

  • 4-20 mA with HART® 5 or 7 and scalable pulse output

  • FOUNDATION fieldbus ITK6 with 2 Analog Input blocks, 1 Backup Link Active Scheduler function block, 1 Integrator function block, and 1 PID function block

  • Modbus RS-485 with device status and 4 variables

• Wetted Material:

  • Stainless Steel; 316 / 316L and CF3M

  • Nickel Alloy; C-22 and CW2M

  • High Temp Carbon Steel; A105 and WCB

  • Low Temp Carbon Steel; LF2 and LCC

  • Duplex; UNS S32760 and 6A

  • Consult factory for additional wetted materials

• Flange Options:

  • ANSI Class 150 to 1500

  • DIN PN 10 to PN 160

  • JIS 10K to 40K

  • Available in a variety of facings

  • Consult factory for additional flange ratings

• Operating Temperature Range: -330°F to 800°F (-200°C to 427°C)

• Line Size: 1" - 14" (25 - 350 mm)


Key Features

• Improve low flow rate measurement performance with an integrated reducer design.

• Simplify installation and reduce project risks with built-in reducers that eliminate field assembly and welding.

• Maintain flexibility in installation with the same face-to-face dimensions as the traditional Rosemount 8800 meters, allowing easy meter sizing without changing piping.

• Enable online sensor replacement without breaking the process seal with an isolated sensor.

• Enhance plant availability and reduce potential leak points with a unique gasket-free meter body design.

• Ensure additional safety with the CriticalProcess valve (CPA option), which allows verification of secondary containment integrity.

• Achieve vibration immunity with a mass-balanced sensor and Adaptive Digital Signal Processing with visual filtering.

• Simplify electronics verification with a standard internal signal generator included in every meter.

• Reduce maintenance costs and downtime with no moving parts that require repair or replacement.
