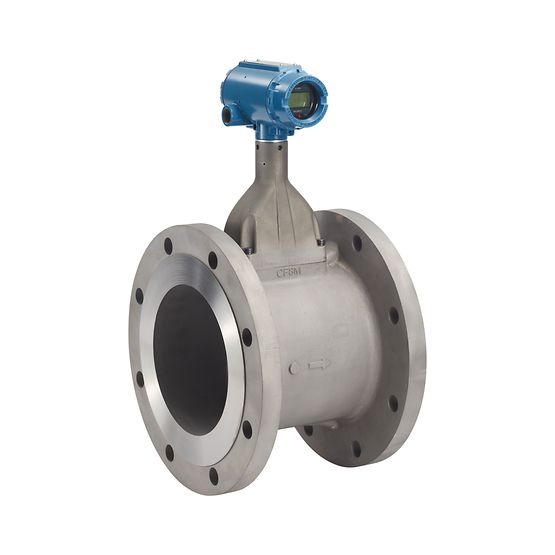

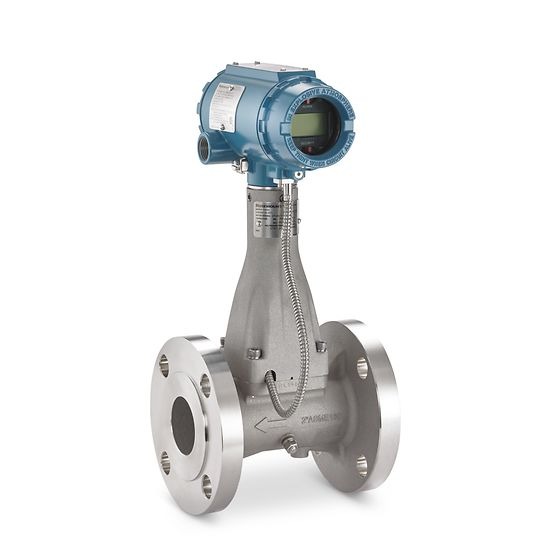

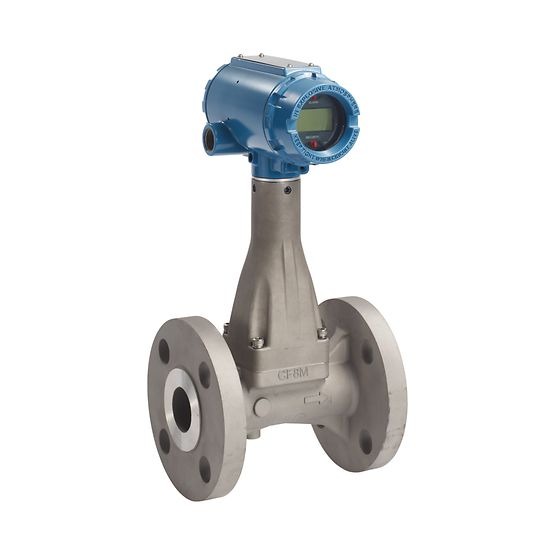

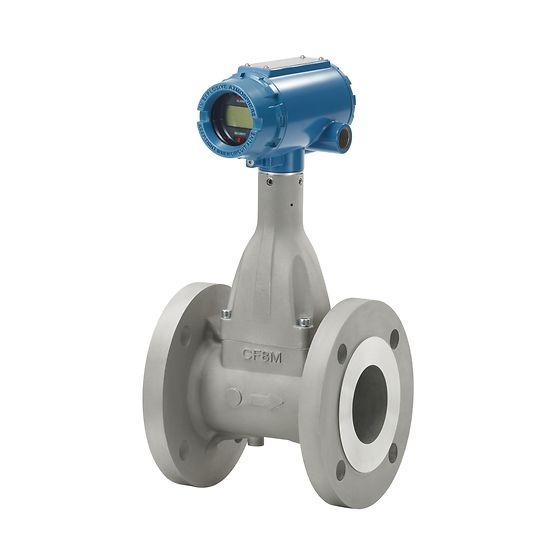

Rosemount 8600 Utility Vortex Flow Meter

The Rosemount 8600 Utility Vortex Flow Meter is engineered for accurate and reliable flow measurement in general-purpose and utility applications, including clean fluids and steam. This flow meter delivers superior performance with its vibration-resistant design and no moving parts, ensuring long-term reliability and minimal maintenance. The easy installation process requires no impulse lines, zeroing, or field calibration, while built-in electronics and sensor verification provide enhanced process insights for improved operational efficiency.

Specifications

• Accuracy:

  • ±0.75% of volumetric rate for liquids

  • ±1% of volumetric rate for gas and steam

  • ±2% of rate for mass flow on steam with the MultiVariable (MTA) option

• Turndown Ratio: 30:1

• Output Options:

  • 4-20 mA with HART® 5

  • 4-20 mA with HART® 5 and scalable pulse output

• Wetted Material: Stainless Steel – CF3M and CF8M

• Flange Options: ANSI Class 150 and 300, DIN PN 10 and PN 40

• Process Temperature Limits: -58°F to 482°F (-50°C to 250°C)

• Temperature Sensor Range (MultiVariable option): -40°F to 800°F (-40°C to 427°C)

• Line Size: 1 to 8 inches (25 to 200 mm)


Key Features

• Reliable and maintenance-free operation: No moving parts eliminate the need for repairs and reduce long-term maintenance costs.

• Inline technology: Prevents impulse line plugging, simplifying operations and enhancing reliability.

• Easy installation: Requires no impulse lines, field calibration, or zeroing, streamlining the setup process.

• Wide flow range: Offers broad flow rate measurement capability with a high turndown ratio.

• Simplified troubleshooting: Integrated electronics verification reduces downtime and enhances maintenance efficiency.

• Replaceable sensors: Enable easy maintenance without disrupting the process.

• Remote electronics mounting: Allows convenient access for installation in challenging environments.
