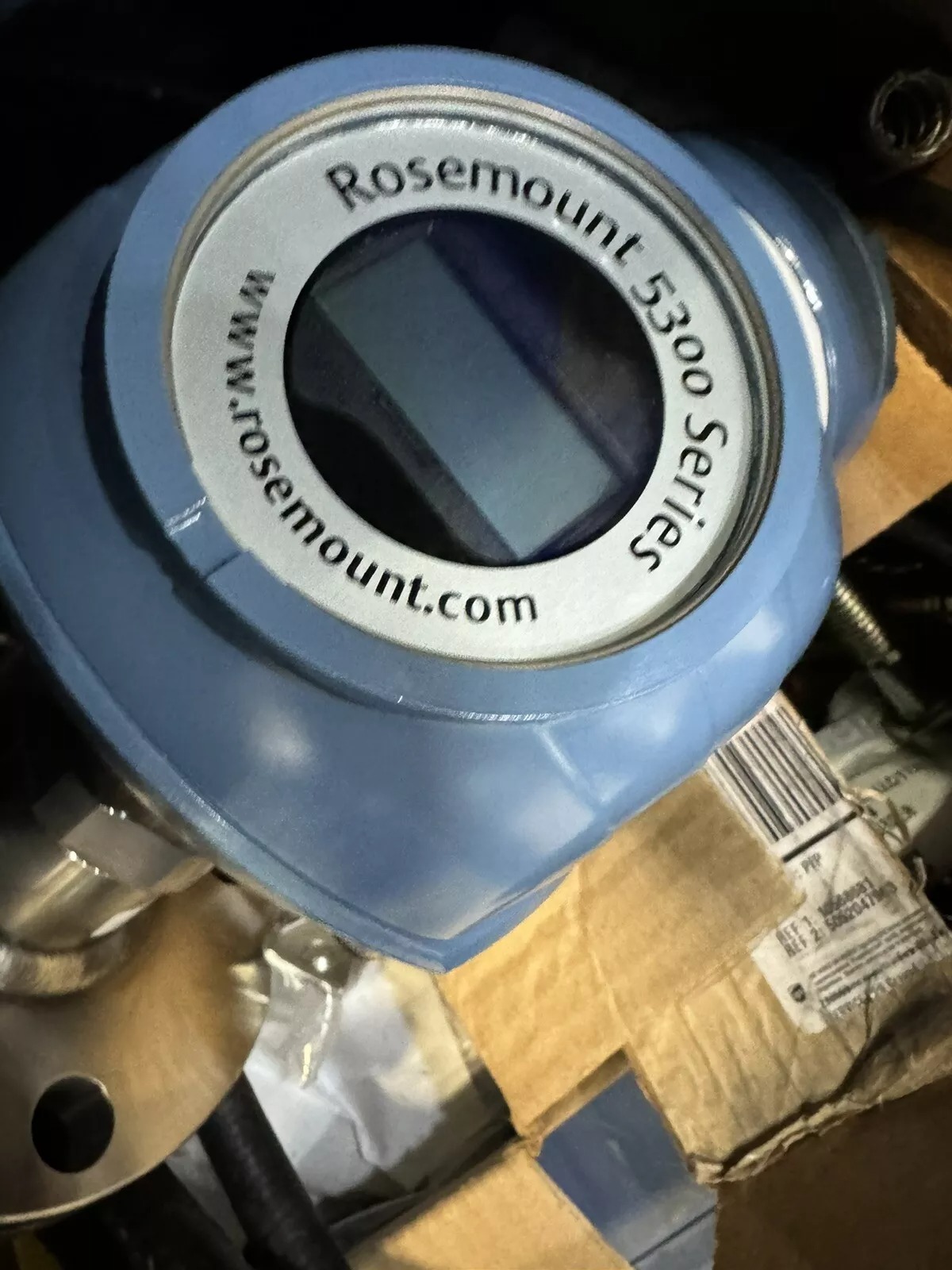

Rosemount 5300 Series Guided Wave Radar Transmitter
Rp123000.00
Description:
The Rosemount 5300 Series Guided Wave Radar Transmitter is a state-of-the-art level measurement instrument designed to provide accurate and reliable measurement of liquid and solid levels in a wide range of applications. Featuring guided wave radar (GWR) technology, it delivers superior performance in challenging process environments, including extreme temperatures, high pressure, and the presence of vapors or foam. The 5300 Series is particularly well-suited for industries such as chemical, oil and gas, food and beverage, and water treatment.
The Rosemount 5300 utilizes a single probe design to measure the level of various materials, offering superior performance and accuracy over a broad range of applications. The transmitter is known for its easy-to-use interface, low maintenance requirements, and robust build, ensuring long-term reliability and performance in demanding industrial environments.
Key Features:
Guided Wave Radar Technology: Provides precise level measurement, even in the presence of foam, vapor, and varying process conditions.
Wide Application Range: Capable of measuring levels in both liquids and solids, making it versatile across a wide variety of processes.
Non-contact Measurement: Unlike traditional level measurement devices, it does not require physical contact with the measured material, minimizing maintenance and wear.
High Accuracy: Offers ±2 mm accuracy for precise level measurement.
Remote Configuration and Monitoring: Configurable and programmable via HART communication or Fieldbus protocols.
Built-in Diagnostics: Features advanced diagnostic tools for proactive maintenance and fault detection, reducing downtime.
Robust Design: Built to withstand harsh process conditions, including extreme temperatures, pressure, and hazardous environments.
User-friendly Interface: Offers a simple setup and operation through an intuitive display and user-friendly configuration tools.
Technical Specifications:
Measurement Principle: Guided Wave Radar (GWR)
Output Signal: 4-20 mA with HART communication or Fieldbus
Accuracy: ±2 mm for liquid and solid level measurement
Range: Up to 40 meters (depending on model and application)
Process Temperature: -200°C to +400°C (-328°F to +752°F) (depending on probe type and process conditions)
Process Pressure: Up to 400 bar (5800 psi) (depending on model)
Communication Protocols: HART, Fieldbus, or Modbus for integration with control systems
Power Supply: 24 VDC (standard), with options for loop-powered systems
Enclosure Rating: IP66/IP67 (dust and water ingress protection)
Probe Materials: Stainless steel, PTFE, and other materials for corrosive environments
Display: Local display for real-time monitoring (optional depending on model)
Mounting Options: Flanged, threaded, and hygienic mounting options available
Certifications: CE, ATEX, FM, and others depending on the model
Diagnostic Features: Includes built-in self-diagnostics and health monitoring for proactive maintenance
Applications:
Chemical & Petrochemical: Level measurement in reactors, storage tanks, and separators.
Oil & Gas: Monitoring tank levels, separators, and crude storage vessels.
Food & Beverage: Monitoring level in tanks, silos, and food processing equipment.
Water & Wastewater: Measuring level in tanks, ponds, and reservoirs for water treatment.
Pharmaceutical: Used in cleanrooms and critical process measurements.
Power Generation: Level measurement in steam generators, condensate tanks, and fuel tanks.
