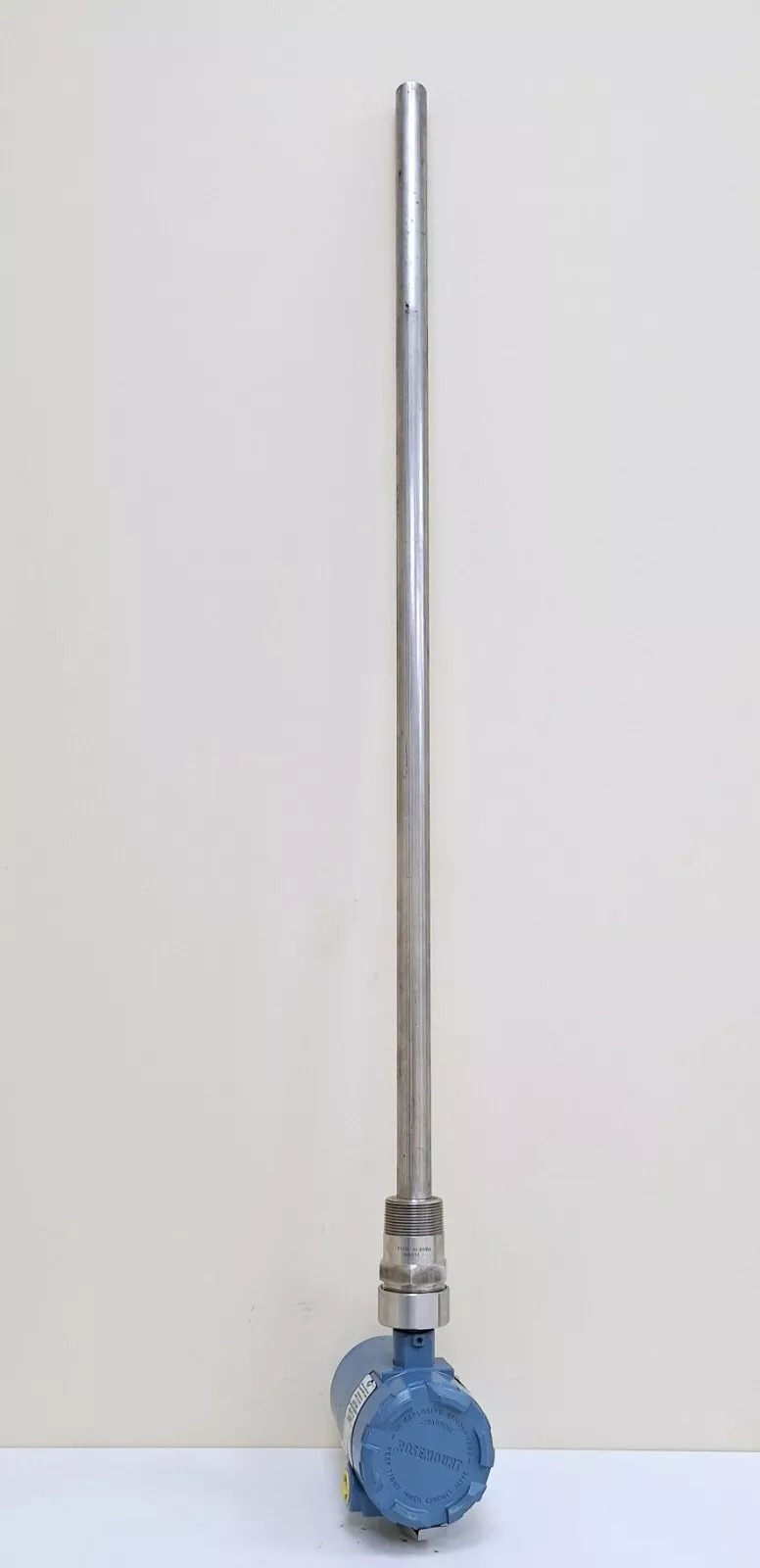

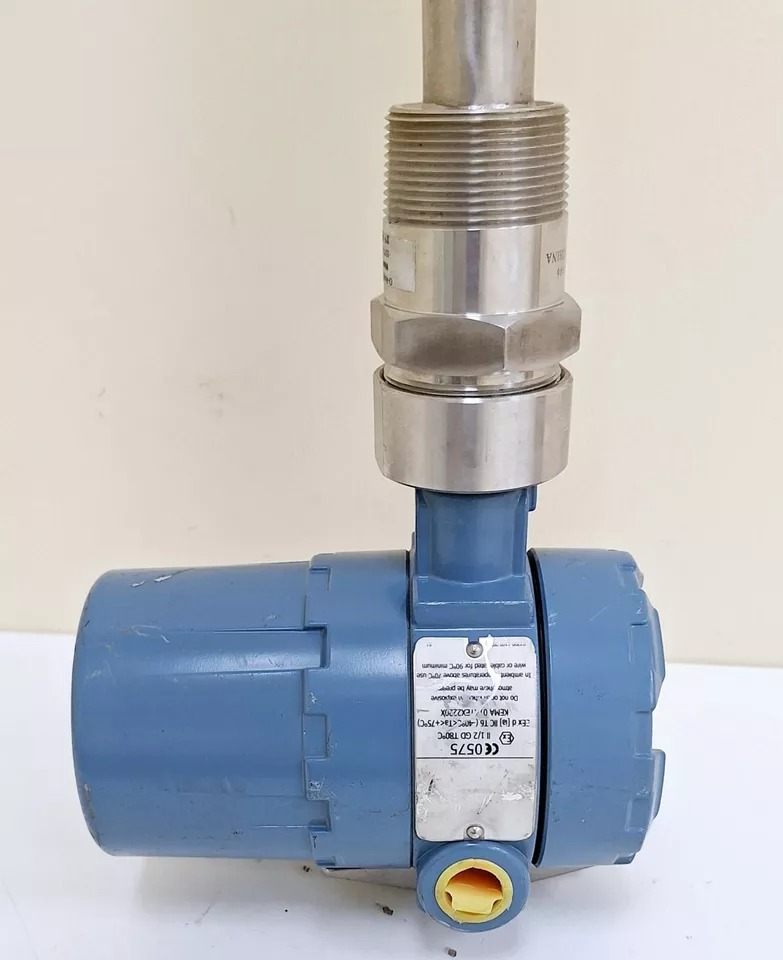

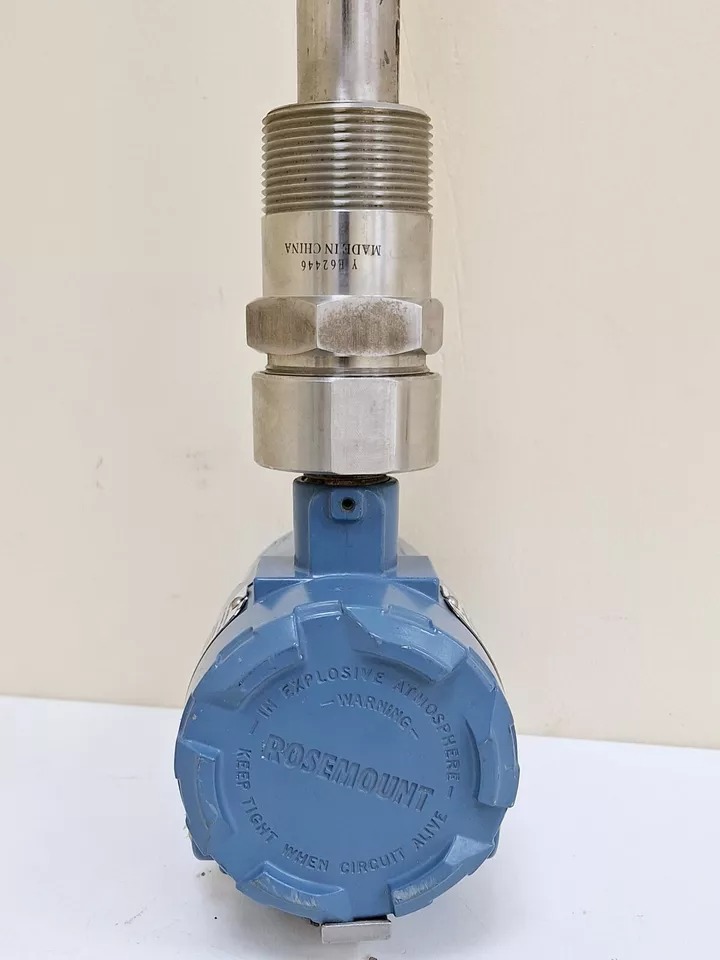

Rosemount 3301HA1S1V3AE0302RAE1M1C1 Guided Wave Radar Level Transmitter

Description:

The Rosemount 3301HA1S1V3AE0302RAE1M1C1 Guided Wave Radar Level Transmitter is a high-performance instrument designed for continuous level measurement of liquids, slurries, and solids in challenging process environments. Utilizing guided wave radar (GWR) technology, this level transmitter offers high accuracy and reliability, making it ideal for use in industries such as oil and gas, chemical processing, water treatment, and food and beverage.

The guided wave radar technology works by emitting electromagnetic pulses along a probe, which reflects back from the surface of the material being measured. The time it takes for the pulse to return is directly proportional to the distance to the surface, enabling precise level measurement. This transmitter is particularly suitable for applications with varying dielectric properties, high pressures, and temperatures.

The Rosemount 3301 is known for its robust design and minimal maintenance requirements, ensuring long-term performance and operational stability. It provides real-time monitoring with high sensitivity, even in harsh environments, and is ideal for non-contact level measurement.

Key Features:

• Guided Wave Radar Technology: Provides highly accurate level measurement with minimal signal loss, even in complex process conditions.

• Versatile Application: Suitable for liquid, slurry, and solid level measurement in industries like oil and gas, chemical, food and beverage, and water treatment.

• High-Performance Design: Works effectively in high-pressure, high-temperature, and challenging environments, making it ideal for a wide range of applications.

• Non-Contact Measurement: Prevents any physical contact with the medium, making it suitable for hazardous and corrosive materials.

• User-Friendly Interface: Easy-to-install and calibrate, with an intuitive setup process and built-in diagnostics for enhanced reliability.

• Reliable Performance: Features high accuracy with repeatable and stable measurements over long periods.

• Minimal Maintenance: Designed for low maintenance needs, reducing downtime and overall cost of ownership.

Technical Specifications:

• Measurement Technology: Guided Wave Radar (GWR)

• Measuring Range: Up to 30 meters (100 feet), depending on specific configuration and application

• Medium Compatibility: Suitable for liquids, slurries, and solids, including non-conductive media

• Process Temperature: From -40°C to 400°C (-40°F to 752°F), depending on probe material and application

• Process Pressure: Up to 400 bar (5800 psi), with variations based on configuration and material selection

• Output Signal: 4-20 mA analog signal, HART communication for advanced diagnostics

• Power Supply: Typically 24 VDC, with variations depending on the specific setup

• Probe Material: Stainless steel, Hastelloy, and other materials suitable for harsh environments and chemical resistance

• Probe Types: Available with a variety of probes, including single, twin, and coaxial configurations

• Display: Local display options available, allowing for real-time data visualization

• Accuracy: High accuracy with a typical range of ±5 mm (0.2 inches), depending on the application

• Enclosure Rating: IP66/IP67 for protection against dust and water ingress, ensuring reliability in harsh environments

• Approvals: ATEX, IECEx, FM, and other relevant safety certifications for hazardous environments

Applications:

• Oil and Gas: Used for measuring level in separators, storage tanks, and vessels in upstream and downstream operations.

• Chemical Processing: Ideal for level measurement in reactors, mixing tanks, and storage vessels, especially when dealing with corrosive or hazardous chemicals.

• Water Treatment: Measures levels in clarifiers, reservoirs, and effluent tanks in water and wastewater treatment plants.

• Food and Beverage: Monitors levels in tanks, silos, and hoppers in food and beverage manufacturing processes.

• Mining and Minerals: Suitable for measuring slurry levels in mining and mineral processing applications.

• Power Generation: Measures level in boiler feedwater, condensate tanks, and other power plant systems.
