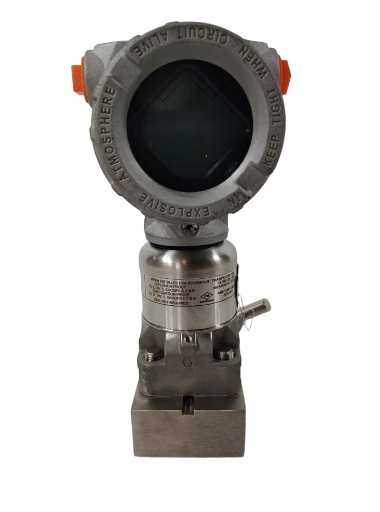

Rosemount Stainless Steel Smart Pressure Transmitter 3051S

Product Description
The Rosemount 3051S Series Smart Pressure Transmitter is a high-performance device engineered for precise pressure measurement in demanding industrial applications. Constructed with a stainless steel housing, this model features advanced diagnostics, high accuracy, and reliability under extreme process conditions. It includes an integral Monel manifold and supports HART communication, ensuring seamless integration into modern control systems.

Technical Specifications

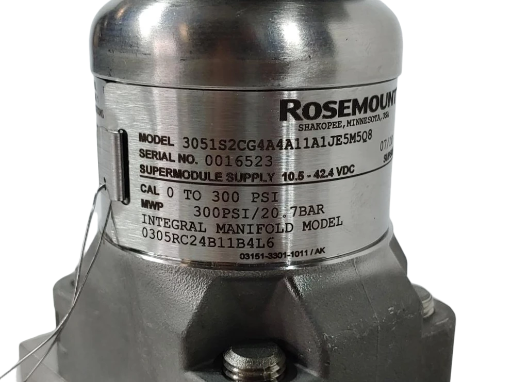

• Model: Rosemount 3051S2CG4A4A11A1JE5M5Q8

• Calibration Range: 0 to 300 PSI

• Maximum Working Pressure (MWP): 300 PSI (20.7 bar)

• Communication Protocol: HART

• Transmitter Housing:

  • Model: 300S1JAE5M5

  • Material: Stainless Steel

• Integral Manifold:

  • Model: 0305RC24B11B4L6

  • Part Number: C30511-1144-0000

  • Body Material: Monel 400

  • Pressure Rating:

    • 6092 PSI at 200°F (420 bar @ 93°C)

    • 4000 PSI at 400°F (276 bar @ 204°C)

  • Connection Size: 1/2" FNPT x 1/4" FNPT

Model: 3051S2CG4A4A11A1JE5M5Q8
Manufacturer: Emerson

Integral Manifold
