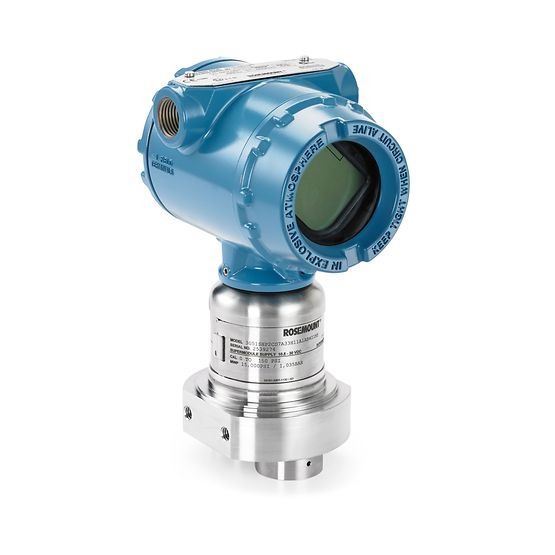

Rosemount 3051S High Static DP Transmitter
Rp123000.00
The Rosemount 3051S High Static Differential Pressure (DP) Transmitter is specifically engineered to endure static pressures up to 15,000 psi (1,034 bar). Featuring a compact SuperModule™ design, it excels in harsh production environments while delivering superior differential pressure and temperature measurements. The transmitter's innovative Rosemount Coplanar™ technology reduces installation weight and incorporates a coned and threaded direct connection, making it an ideal choice for high-pressure applications.
Key Features
Unmatched High-Pressure Performance: Withstands static line pressures up to 15,000 psi (1,034 bar).
Multivariable Measurement Capability: Provides both differential pressure and temperature measurements.
Compact and Lightweight Design: The Coplanar™ platform reduces weight by up to 60% compared to conventional high-pressure transmitters.
Robust Accuracy and Stability: The all-welded, hermetic SuperModule™ design ensures 0.055% accuracy, resists overpressure, and offers 10-year stability.
Advanced Communication Protocols: Integrates seamlessly with 4-20 mA HART®, WirelessHART®, and FOUNDATION™ Fieldbus for versatile applications.
Comprehensive Diagnostics: Equipped with advanced diagnostics, including loop integrity, process intelligence, and plugged impulse line detection.
Safety Certified: SIL 2/3 certified to IEC 61508 by an independent third party, with prior-use certification for safety installations.
Specifications
Warranty: Up to 15-year limited warranty.
Rangedown: Up to 150:1.
Communication Protocols: 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus.
Measurement Range: Differential pressure up to 150 psi (10.34 bar) with a maximum working pressure of 15,000 psi (1,034 bar).
Process Wetted Materials: Alloy C-276.
Diagnostics: Basic diagnostics, loop integrity, process intelligence, and plugged impulse line detection.
Certifications/Approvals: SIL 2/3 certification, NACE compliance, hazardous location approvals, and additional certifications available upon request.
