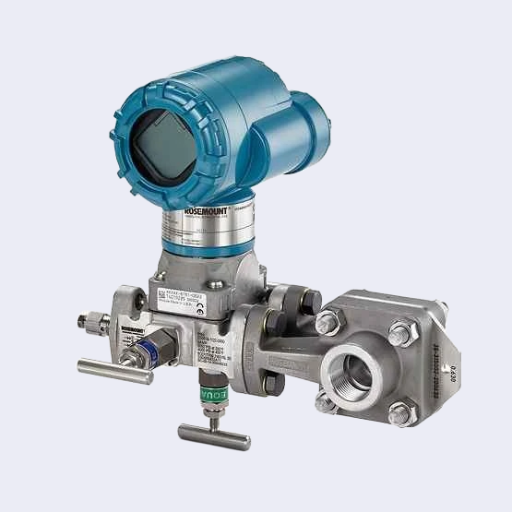

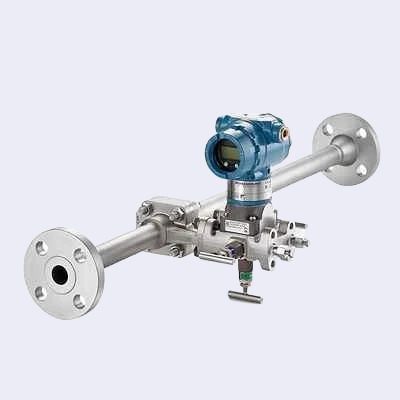

Rosemount 3051CFP Integral Orifice Flow Meter
Rp123000.00
The Rosemount 3051CFP Integral Orifice Flow Meter is a precision flow measurement device that integrates the orifice plate and differential pressure transmitter into a single, compact unit. Designed for a wide variety of applications, the 3051CFP provides highly accurate flow measurements for both liquid and gas applications in industries such as oil & gas, chemical processing, power generation, and water treatment. By integrating the orifice plate with the transmitter, this flow meter simplifies installation, reduces the number of components, and enhances reliability, making it an ideal solution for challenging flow measurement tasks.
Utilizing advanced differential pressure technology, the Rosemount 3051CFP delivers real-time flow data with exceptional accuracy and minimal maintenance requirements. The flow meter’s high rangeability and flexible configuration options ensure optimal performance in both standard and customized installations, making it ideal for a wide range of process conditions.
Key Features:
Integrated Design: Combines an orifice plate with a differential pressure transmitter in one device, reducing the number of components and simplifying installation.
Accurate Flow Measurement: Provides reliable and highly accurate flow measurements for both gas and liquid applications, even in challenging conditions.
Wide Rangeability: Supports a wide range of flow conditions, offering high flexibility for different process requirements.
Easy Installation and Maintenance: The integral design reduces installation complexity and minimizes the need for maintenance, lowering operational costs.
Advanced Diagnostics: The transmitter includes built-in diagnostics for proactive maintenance, helping to identify potential issues before they affect operation.
Multiple Applications: Ideal for use in various industries, including chemical, power generation, oil & gas, water & wastewater, and pulp & paper.
Durable and Reliable: Designed for long-term performance in harsh industrial environments with minimal drift and exceptional stability.
High Turndown Ratio: The Rosemount 3051CFP offers an excellent turndown ratio, making it highly effective across a wide range of flow rates and process conditions.
Specifications:
Measurement Principle: Differential Pressure Flow Measurement (with integrated orifice plate)
Flow Range: Up to 10,000:1 turndown ratio
Accuracy: ±0.075% of span (depending on installation and process conditions)
Process Temperature: -40 to +150°C (-40 to +302°F)
Process Pressure: Up to 40 MPa (5800 psi) depending on configuration
Output Signal: 4-20 mA with HART® communication protocol, optional FOUNDATION™ Fieldbus or Profibus DP
Power Supply: 24 V DC (standard)
Materials of Construction: Stainless steel, carbon steel, and other materials depending on process compatibility
Orifice Plate: Available in various sizes and materials to suit different applications (ANSI, DIN, JIS, and other standards)
Certifications: ATEX, FM, CSA, IECEx (depending on model and application)
Display: Local display option (optional) for monitoring flow data
Connection Type: Flanged, threaded, and other configurations depending on the application
Diagnostics: Advanced diagnostics to monitor sensor health, alerting to potential issues such as clogging, leakage, or calibration drift.
Applications:
Liquid Flow Measurement: Ideal for process industries like chemical, petrochemical, and water treatment.
Gas Flow Measurement: Suited for natural gas, steam, and other gas flow applications in industries like oil & gas and power generation.
Custody Transfer: For accurate measurement of flow in critical custody transfer applications.
