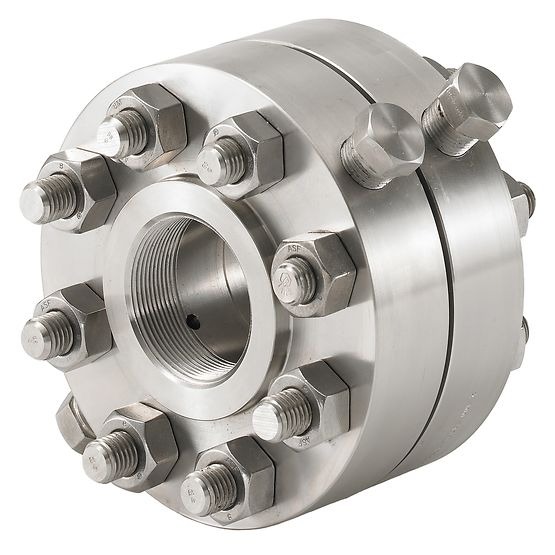

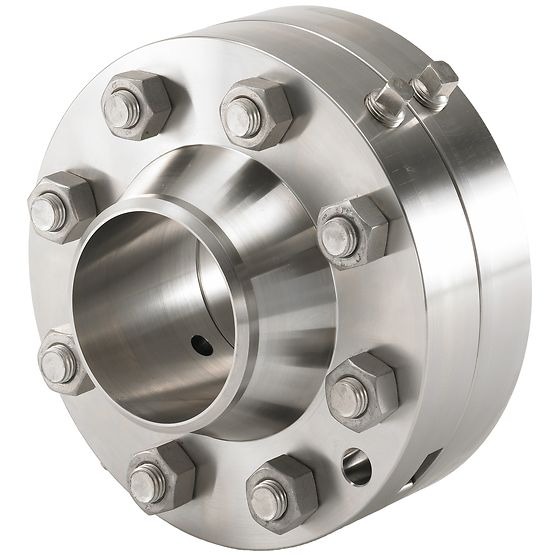

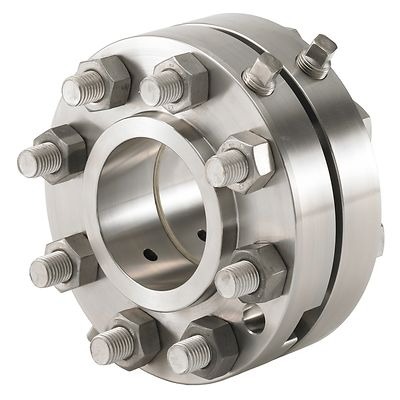

Rosemount 1496 Orifice Flange Union
Rp123000.00
The Rosemount 1496 Orifice Flange Union is designed to securely hold orifice plates in place, ensuring reliable flow measurement in various industrial applications. With a threaded tap connection and a robust design that can withstand high temperatures and pressures up to ANSI Class 2500#, this flange union offers an easy, reliable solution for flow measurement without the need for on-site drilling.
Key Features
Precise Positioning: Accurately positions orifice plates to ensure reliable flow measurement.
Easy Installation: The threaded tap connection eliminates the need for on-site drilling, making installation straightforward and efficient.
Complete Assembly: Supplied with all necessary hardware, including studs, nuts, jack screws, gaskets, and pipe plugs, for a quick and hassle-free setup.
Wide Range of Sizes: Available in standard line sizes up to 24 inches (600 mm) or custom sizes to suit your specific needs.
High Pressure and Temperature Resistance: Built to withstand high pressures and temperatures, up to ANSI Class 2500#, ensuring durability in demanding environments.
Compliant with Standards: Meets ASME B16.36 and DIN 19214 part 1 specifications for performance and reliability.
Specifications
Fluid Types: Liquid, gas, steam
Process Wetted Materials: 304/304L SST, 316/316L SST, DIN 1.4571 (316Ti SST), Alloy C-276, Alloy 400, Carbon Steel
Warranty: Up to a 5-year limited warranty
The Rosemount 1496 Orifice Flange Union is ideal for applications requiring reliable, high-pressure flow measurement, and is compatible with various materials and fluids.
