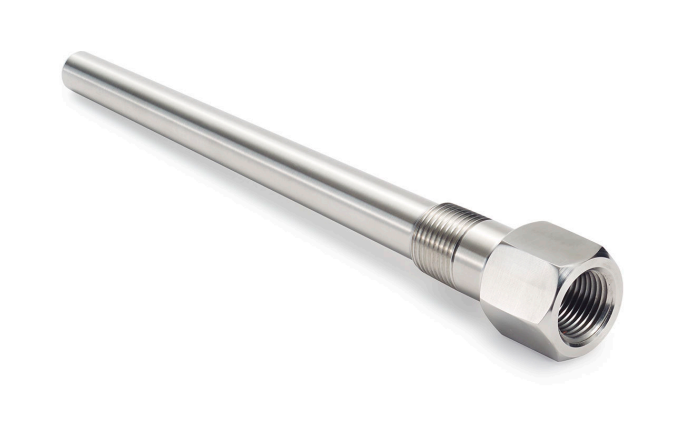

Rosemount 114C Threaded Thermowell
Product Description
The Rosemount 114C Threaded Thermowell is a robust and reliable temperature protection device designed to safeguard RTDs and thermocouples from harsh process environments. Engineered for demanding industrial applications, this thermowell ensures safe sensor removal without interrupting operations, while providing accurate and stable temperature measurement. Its threaded process connection allows easy installation into piping and process equipment, making it suitable for oil & gas, petrochemical, power generation, and general industrial processes.
Technical Specifications
1. Thermowell Type
Threaded thermowell for direct process installation
Suitable for use with Rosemount temperature assemblies and standard sensor diameters
Designed for high-pressure and high-temperature service environments

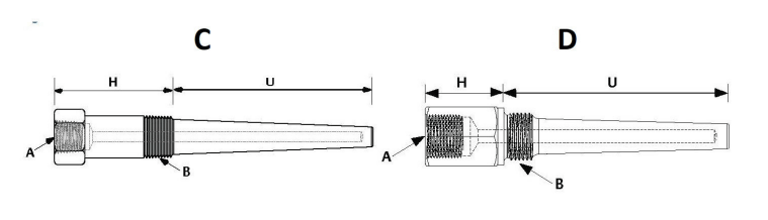

2. Stem Style Options (Based on Attached Image)
★ Stem Style 1 – Straight
Description: Straight cylindrical stem
Minimum Immersion Length:
1 in. (25 mm) – for tapered threads
1.75 in. (45 mm) – for parallel threads
Characteristics:
General-purpose design
Ideal for moderate flow and standard applications
★ Stem Style 2 – Tapered
Description: Stem gradually narrows toward the tip
Minimum Immersion Length:
1 in. (25 mm) – for tapered threads
1.75 in. (45 mm) – for parallel threads
Characteristics:
Faster response time
Reduced drag and improved strength under flow conditions
★ Stem Style 3 – Stepped
Description: Step-down stem with reduced tip diameter
Minimum Immersion Length:
3 in. (75 mm) – for tapered threads
3.75 in. (95 mm) – for parallel threads
Characteristics:
Fastest temperature response
Ideal for applications requiring rapid measurement and minimal thermal lag
3. Additional Thermowell Specifications
Process Connection: Threaded (NPT standard, others available upon request)
Material Options:
304 Stainless Steel
316/316L Stainless Steel
Optional high-alloy materials for corrosive service
Bore Diameter: Compatible with standard RTD and thermocouple sheath sizes
Insertion Length (U-Length): Available in multiple lengths to fit pipe diameters and required immersion depth
Operating Conditions:
Suitable for high-pressure lines
Designed to withstand flow-induced vibration and mechanical stress
Applications:
Oil & Gas pipeline and processing systems
Petrochemical plants
Power generation units
Refinery and chemical manufacturing
General industrial temperature monitoring
As a leading Supplier Thermowell Rosemount and trusted Supplier Rosemount in Indonesia, we provide authentic and high-quality Thermowell 114C solutions for oil & gas, petrochemical, and industrial process applications. Our commitment is to deliver reliable Rosemount products that ensure accurate temperature measurement and long-term durability in the toughest environments.
