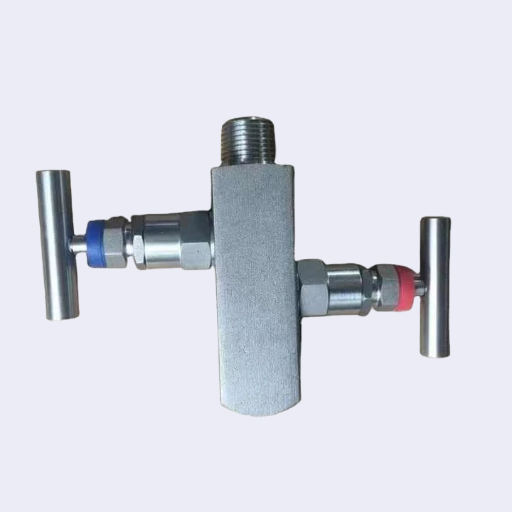

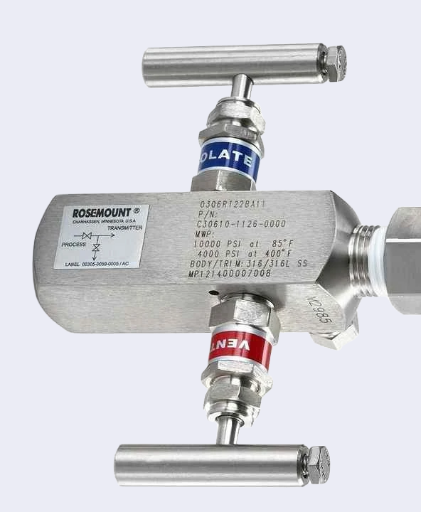

Rosemount 0306RT22BA11 2-Way Manifold Valve for Pressure Transmitter
Rp123000.00
The Rosemount 0306RT22BA11 2-Way Manifold Valve is a high-quality, durable valve designed to connect pressure transmitters to the process, offering reliable isolation and venting functions. This manifold valve is specifically engineered to work with Rosemount pressure transmitters, ensuring optimal performance and ease of integration within pressure measurement systems. The 2-way manifold valve provides a compact, efficient solution for isolating the transmitter from the process, enabling safe maintenance and calibration without interrupting the system.
Constructed from corrosion-resistant materials, the Rosemount 0306RT22BA11 is built to withstand harsh industrial environments and demanding applications. It is commonly used in industries such as oil & gas, chemical processing, power generation, and water treatment.
Key Features:
2-Way Design: Provides isolation and venting for pressure transmitters, ensuring safe and easy maintenance of the measurement system.
Durability: Made from high-quality materials, the manifold valve is designed to withstand high pressures, temperatures, and corrosive environments.
Leak-Free Performance: Ensures reliable, leak-free performance, preventing contamination of the process and ensuring the safety of the system.
Ease of Installation: Simple to install and configure, the manifold valve ensures quick integration with pressure transmitters and other system components.
Corrosion-Resistant Construction: Built from materials resistant to corrosion, making it suitable for use in harsh environments and with aggressive chemicals.
Compatibility: Designed for use with Rosemount pressure transmitters, ensuring seamless operation and performance within the Rosemount product family.
Vibration Resistance: Can tolerate vibration in industrial settings, ensuring reliable operation even in dynamic environments.
Specifications:
Valve Type: 2-Way Manifold Valve
Material: Stainless steel (other material options may be available depending on process compatibility)
Process Connection: Standard connections such as NPT, BSP, or flanged connections, depending on the installation requirements
Temperature Range: -40°C to +150°C (-40°F to +302°F)
Pressure Rating: Rated for high-pressure applications (up to 2500 psi or higher depending on specific model configuration)
Connection Size: Typically available in 1/4-inch, 1/2-inch, and other sizes to suit specific applications
Leakage: Designed to provide minimal leakage, ensuring safety and accurate pressure measurement
Flow Capacity: Optimized flow capacity for use in pressure transmitter systems, ensuring minimal pressure drop

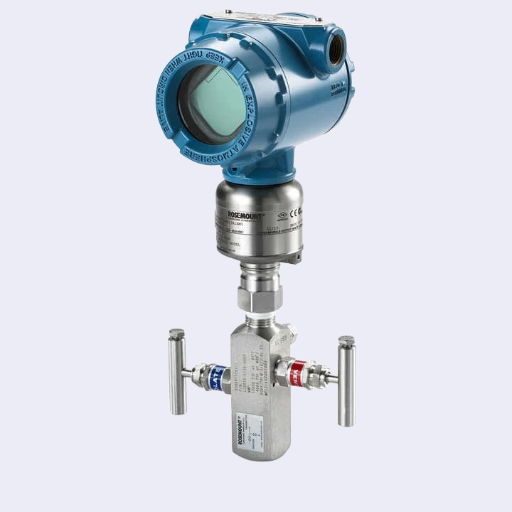

Mounting: Manifold valve mounts easily to pressure transmitters for seamless operation
Approvals and Certifications: Designed to meet various safety standards, including those for hazardous areas (ATEX, FM, CSA) depending on the model configuration
Applications:
Pressure Transmitter Isolation: The Rosemount 0306RT22BA11 is used in pressure measurement systems to isolate pressure transmitters during maintenance or calibration, preventing process interruptions.
Safe Pressure Measurement Systems: Commonly used in industries such as chemical, oil and gas, and power generation, where accurate and safe pressure measurements are crucial.
Flow and Pressure Monitoring: Ideal for use in systems where accurate pressure readings are necessary for flow control, filtration, or pressure relief.
