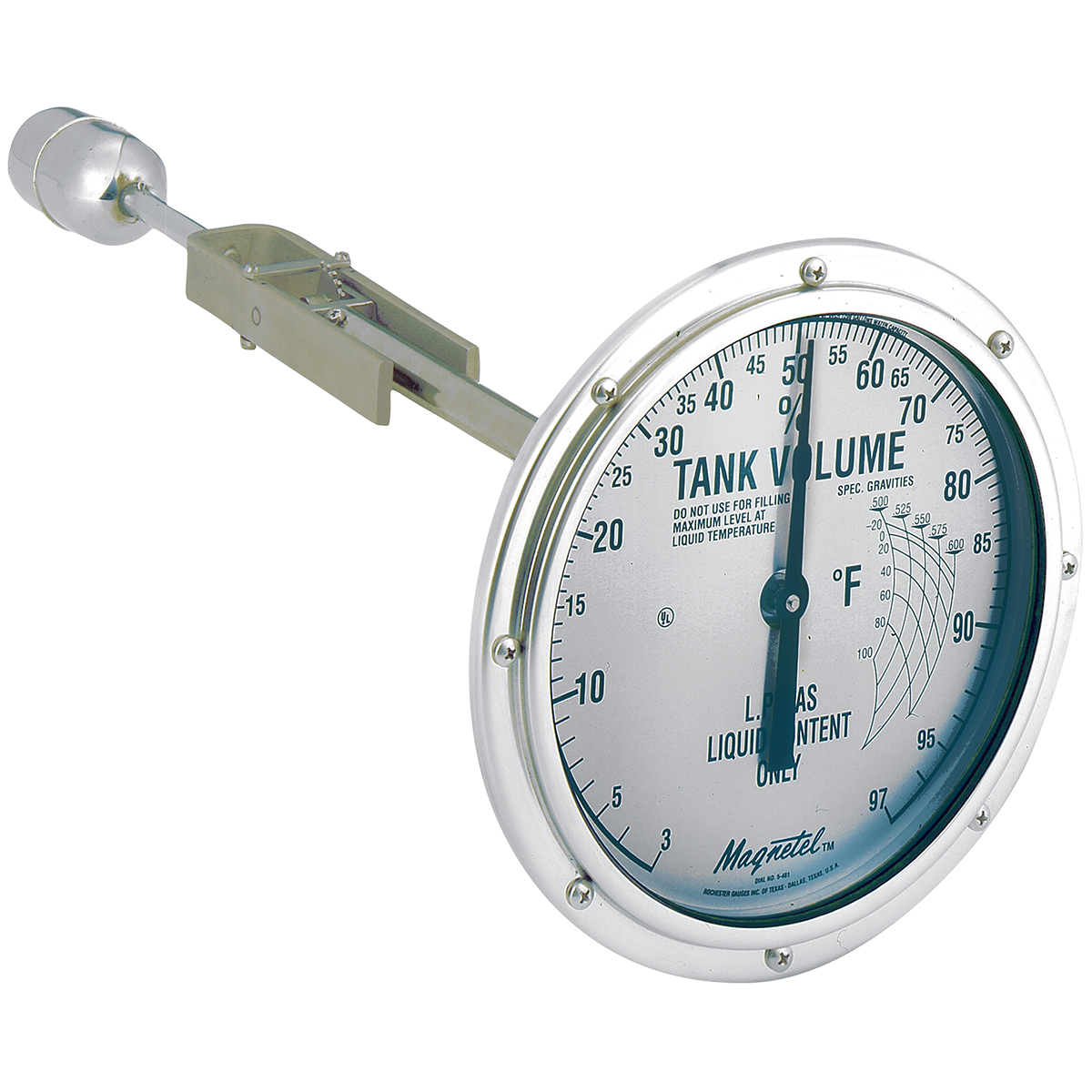

Rochester 6300 Series Magnetel Gauge for Bulk Storage Tanks
Rp123000.00
Product Description
The Rochester 6300 Series Magnetel Gauges are designed for accurate percentage-volume measurement in fixed bulk storage tanks. UL-listed for LPG and ammonia service, these gauges deliver reliable performance across a wide range of industrial applications.
Each gauge is equipped with a large, easy-to-read dial that can be quickly removed or replaced for maintenance. Materials of construction are selected based on fluid compatibility, ensuring durability and long service life in demanding conditions.
The 6300 Series supports operating pressures from atmospheric levels up to 450 psig (31 bar). Multiple configuration options are available, allowing users to select the appropriate model for specific installation and operational needs.
General Features – 6300 Series
The 6300 Series Magnetel® Gauges are available in four standard models:
Model 6336 – 4" (100 mm) dial; designed for top-mount installation
Model 6360 – 8" (200 mm) dial; for top-mount tank applications
Model 6339 – 4" (100 mm) dial; suitable for side, end, or angled mounting
Model 6342 – 8" (200 mm) dial; for side, end, or angled mounting
