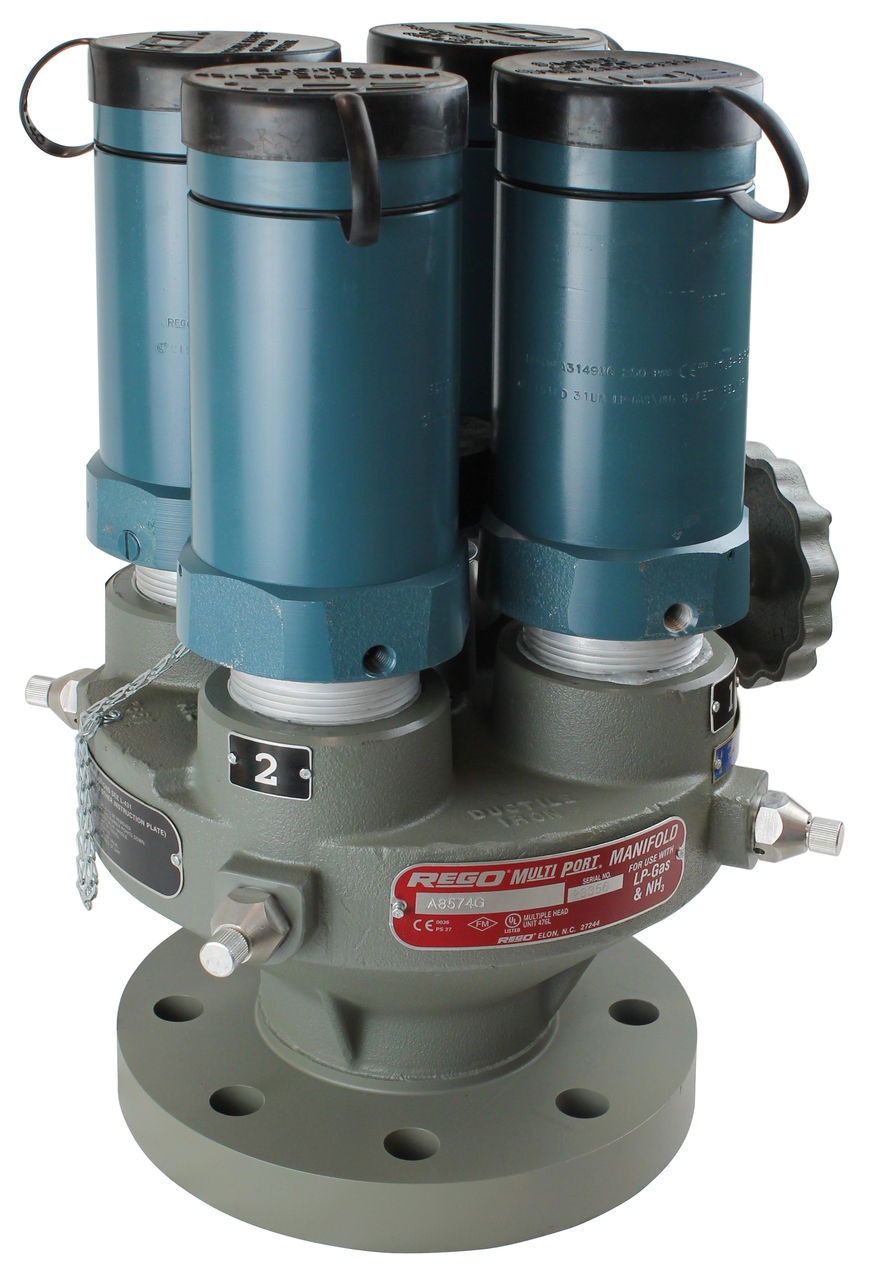

Rego Pressure Relief Valve Manifold - A8570 Series (250 PSIG)

Rp123000.00

The Rego A8570 Series Pressure Relief Valve Manifold is a high-performance solution designed to provide pressure relief and protection for bulk storage systems in agriculture, energy, and power industries. The manifold system is engineered to handle excess pressure safely and efficiently, ensuring the safety of storage tanks and pipelines. It integrates multiple pressure relief valves into a single, compact manifold, facilitating streamlined installation and operation for systems with high flow capacities.

This manifold is ideal for applications in bulk storage where the prevention of overpressure is critical to maintaining the integrity of storage vessels and related equipment. Its robust construction and high flow capacity make it suitable for a range of industrial applications where safety and reliability are paramount.

Key Features:

  • Multiport Design: Integrates multiple relief valves into a single manifold, optimizing space and simplifying installation.

  • High Pressure Rating: Designed to operate at up to 250 PSIG, ensuring safety and reliability in high-pressure environments.

  • Heavy Duty Construction: Made from durable materials to withstand demanding environments and long-term use.

  • Wide Range of Applications: Ideal for bulk storage, agriculture, and energy and power industries.

  • Multiple Inlet and Outlet Options: Provides flexibility in connection and installation.

  • Flow Capacity: High flow capacity at 120° F set pressure, capable of handling significant volumes of gas or vapor.

Specifications:

  • Part Numbers:

    • A8574G, A8574AG, A8573G, A8573AG

  • Relief Valve Quantity:

    • 4 valves (A8574G, A8574AG) or 3 valves (A8573G, A8573AG)

  • Valve Inlet Connection:

    • 2 1/2" M. NPT (Male NPT threaded inlet)

  • Valve Outlet Connection:

    • 2” F. NPT (Female NPT threaded outlet)

  • Flow Capacity:

    • 27,750 SCFM (Standard Cubic Feet per Minute) at 120°F of set pressure (for 4-valve models)

    • 18,500 SCFM at 120°F of set pressure (for 3-valve models)

  • UL Rating:

    • Not applicable to all models.

  • ASME Rating:

    • 27,459 SCFM (for A8574G model)

    • 18,300 SCFM (for A8573G model)

  • Relief Valve Part Numbers:

    • A3149MG (for models A8574G and A8573G)

    • A3149G (for models A8574AG and A8573AG)

  • Accessories:

    • Studs and Nuts for Welded Neck Flange: Available for easy mounting and securing to the system.

    • Studs and Nuts for Manhole Cover: Optional for additional secure attachment of the relief valve manifold.

    • Pipeaway Adaptors: Provides flexible piping options for directing vented gases away from the system.

Applications:

  • Bulk Storage Systems: For protection of storage tanks in industrial applications where pressure control is critical.

  • Agriculture: Safe handling and storage of LPG and other gases used in agricultural applications.

  • Energy & Power: Used in energy facilities for pressure relief in bulk storage of fuel and other industrial gases.

Benefits:

  • Safety: Designed to protect against overpressure, preventing damage to equipment and potential safety hazards.

  • High Flow Capacity: Ideal for high-volume systems where quick and efficient pressure release is required.

  • Flexible Installation: Can be configured to suit a variety of system layouts and connection requirements.

  • Durability: Constructed from high-quality materials for long-term performance in harsh industrial environments.
