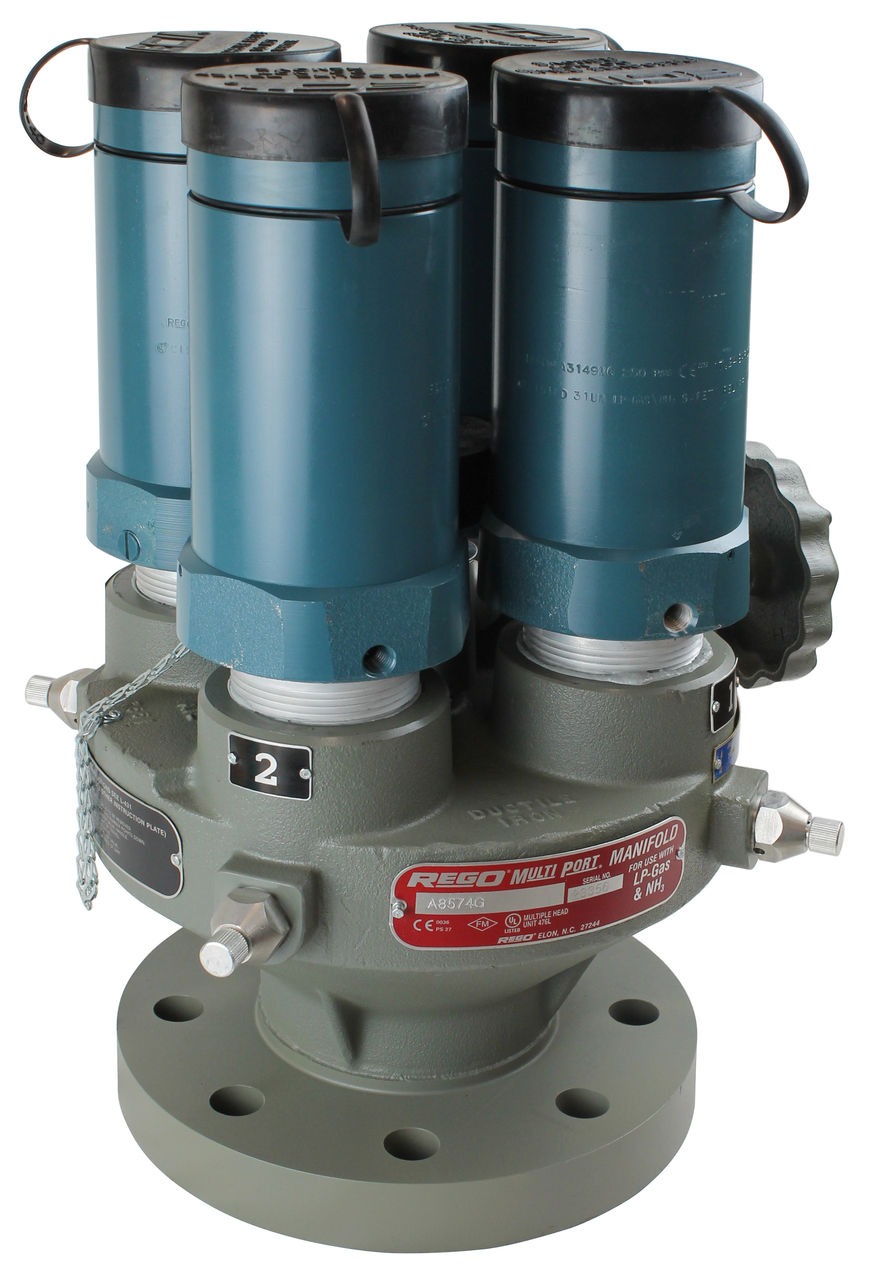

Rego Pressure Relief Valve Manifold - A8560 Series
Rp123000.00
The Rego A8560 Series Pressure Relief Valve Manifold is a robust and versatile assembly designed to provide vapor withdrawal and reliable pressure relief for large storage containers. It features Multiport® technology, enabling continuous gas service without interruptions during container filling. This manifold is specifically engineered to handle the critical safety requirements of vapor pressure management in large-scale applications, particularly for bulk storage in industries such as agriculture, energy, and power.
The Multiport® Pressure Relief Valve Manifold is designed for large storage containers where safety and uninterrupted service are paramount. By utilizing this manifold, operators can perform vapor withdrawal and container filling processes simultaneously, maintaining safety and operational efficiency.
The A8560 Series provides a high level of flexibility in system design and installation, offering multiple relief valve options to handle different system needs. The manifold is available with configurations that suit various connection types, including welding neck flanges, ensuring compatibility with a wide range of applications.
Key Features:
Multiport® Technology: Allows for simultaneous vapor withdrawal and container filling, preventing service interruptions.
Pressure Relief Protection: Ensures safe and efficient operation by maintaining the correct pressure levels in large storage containers.
Flexibility in Design: Compatible with different flange and connection configurations, including welding neck flanges and bolt stud connections.
High Flow Capacity: Suitable for large storage containers that require significant vapor flow and pressure relief.
Specifications:
Part Numbers:
A8564G, A8564AG, A8563G, A8563AG
Container Connection:
Modified 3"-300# and 4"-ANSI 300# Welding Neck Flange
Manifold Accessories:
1-Bolt Stud and Nut
Manhole Cover Plate
Relief Valve Configuration:
8 Ports for multi-valve assemblies
Flow Capacity:
High-capacity flow for large vapor withdrawal and relief requirements, suitable for large storage containers.
Pressure Ratings:
ANSI 300# for robust pressure relief performance.
Applications:
Bulk Storage: Used for large pressurized storage systems in industries where high vapor withdrawal is required.
Energy & Power: Ensures safe and efficient vapor management in large-scale energy production and storage.
Agriculture: Ideal for agricultural storage systems that need reliable vapor management and continuous gas supply during container filling.
Benefits:
Uninterrupted Service: Enables filling and vapor withdrawal without shutting down gas service, maximizing efficiency in critical storage operations.
Safety Compliance: Provides continuous pressure relief and vapor control to prevent overpressure situations in large containers.
Flexible Installation: Supports multiple connection types, including welding neck flanges and bolt stud connections, making it adaptable to various system setups.
High Flow Rate: Ensures effective vapor management for large containers, meeting the needs of demanding industrial applications.
Durability: Designed to handle the rigorous demands of high-pressure applications in bulk storage, agriculture, and energy sectors.
