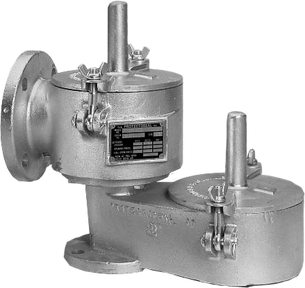

Protectoseal Pipe-Away Pressure/Vacuum Conservation Vent

Product Description

The Protectoseal Series 18540 Pipe-Away Pressure/Vacuum Conservation Vent is specifically designed to provide controlled pressure and vacuum relief while ensuring that hazardous vapors are safely directed away from the environment through a dedicated piping system.

This vent operates with a pallet system housed within the vent body, allowing the intake of ambient air and the release of vapors as the storage tank naturally expands and contracts due to pressure fluctuations. The pallets open and close automatically to maintain pressures within the tank’s safe operating range, preventing potential structural damage.

For enhanced venting efficiency, the relieved vapors are piped away through a flanged outlet connection that is one size larger than the inlet. This design increases the flow capacity, ensuring proper venting while maintaining safety and regulatory compliance.

Available Options

• Flange Connections: Custom drilling patterns available upon request

• Diaphragm Materials: Available in FEP, Viton®, Buna-N, EPDM, Neoprene, with other materials upon request

• Pressure & Vacuum Settings: Non-standard pressure and vacuum relief settings available upon request

• Special Coatings: PROSHIELD™, FEP, Kynar®, and other specialized protective coatings

• Instrumentation: Mechanical or electronic lift indicators for monitoring vent operation

• Material Certifications: Certifications available for cast components

• Clamp-on Steam Jacketing: Available for applications requiring external heating

• Pure-Tech™ Design: Special cleaning and packaging designed for ultrapure liquid storage applications


Technical Specifications

• Size Range: 2" (DN50) to 12"x14" (DN300 x DN350)

• Flange Standards: ANSI, DIN PN16

• Material Options:

  • Metals: Aluminum, Ductile Iron, Cast Steel, Stainless Steel, Alloy C

  • Non-Metallic: Thermoplastic Resin, Fiber-Reinforced Plastic (FRP)
