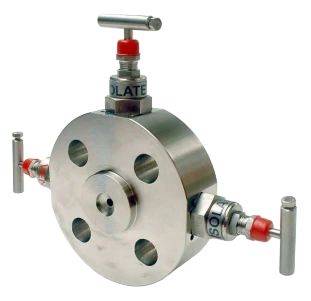

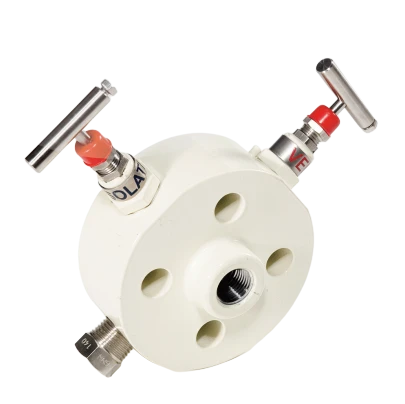

Oliver Gauge Block Monoflange Valves
Rp123000.00
Oliver Gauge Block Monoflange Valves are compact, modular valves designed to provide instrumentation double block and bleed isolation in combination with an existing primary isolate valve. These valves are ideal for horizontal or vertical pipeline pressure measurement applications and are engineered to reduce weight, space, installation time, and leak paths—making them especially suited for offshore and space-constrained environments.

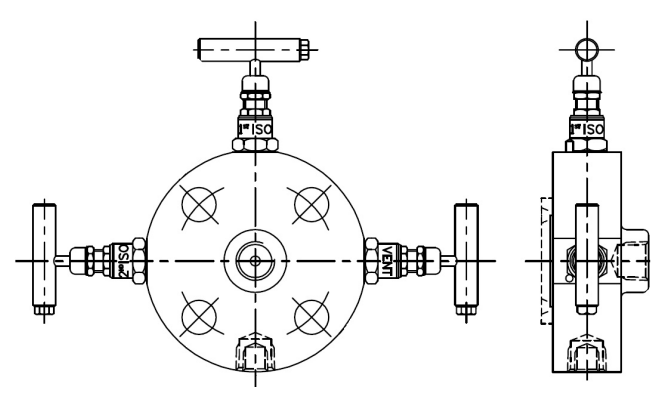

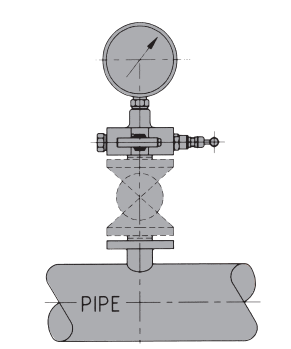

The modular design allows for straightforward installation after a pre-installed block valve, and dual instrument ports support flexible mounting orientations. Available in single block, block and bleed, or double block and bleed configurations, these valves are compatible with ASME B16.5 flange standards and use either standard or heavy-duty needle valves depending on the required pressure rating.
Technical Specifications
Parameter | Specification |
Manufacturer | Oliver Valves |
Model | Gauge Block Monoflange Valve |
Valve Type Options | Single Block / Block & Bleed / Double Block & Bleed |
Construction | Modular, designed for installation after a primary isolate valve |
Body Design | Compact forged or barstock body |
Valve Type | Standard or Heavy Duty Needle Valves |
Mounting Orientation | Suitable for vertical and horizontal line mounting |
Instrument Ports | Dual ports for vertical gauge/instrument installation |
Connection Standard | Compatible with ASME B16.5 flanges |
Size Range | Commonly 1/2” to 2” flange sizes (dependent on configuration) |
Pressure Class Range | Class 150 to 2500 |
Seal & Packing Material | Graphite or PTFE (depending on pressure and temperature requirements) |
Compliance | NACE MR-01-75 (sour service), Firesafe API 607 / API 6FA / BS 6755 Part 2 (optional) |
Advantages | Significant reduction in weight, installation time, and leak paths |
Typical Applications | Pressure measurement, gauge hook-up, venting lines, safety isolation for instruments |
