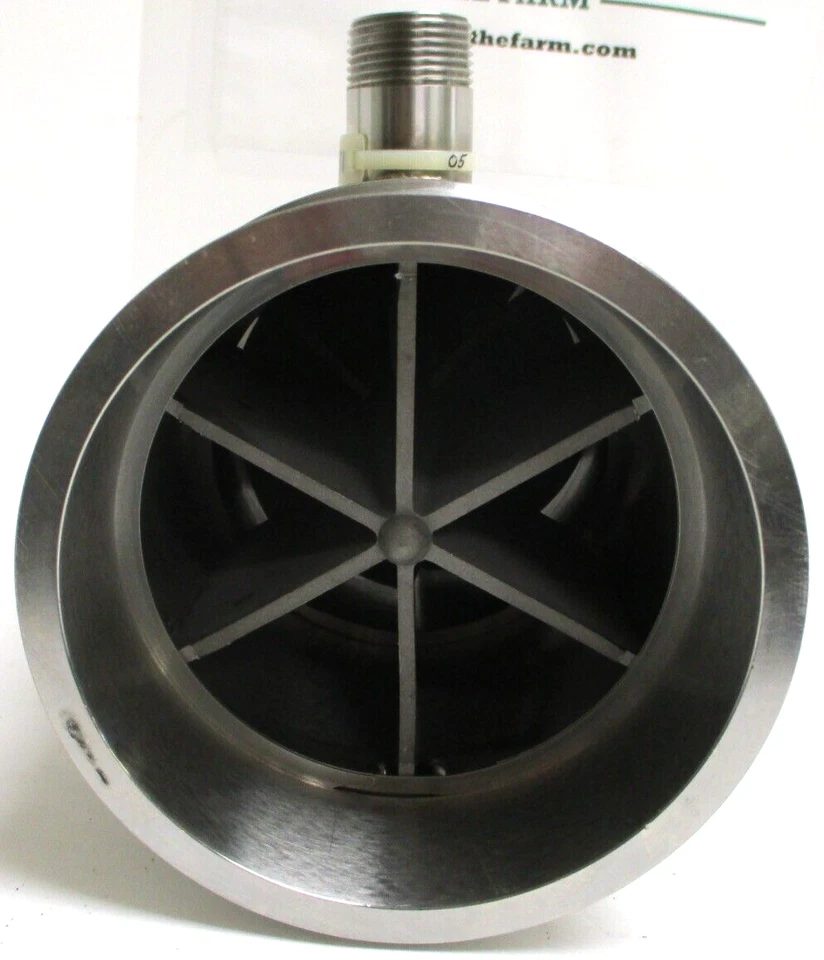

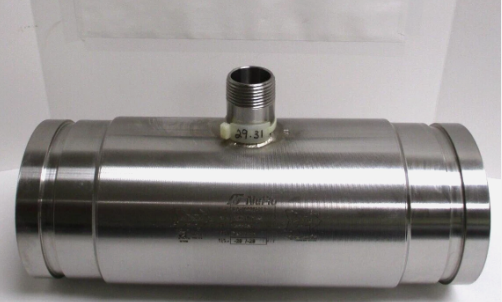

NuFlo Turbine Flow Meter 9A-100012085
Rp123000.00
The Cameron NuFlo Turbine Flow Meter (P/N: 9A-100012085) is a high-capacity, 4-inch axial turbine meter designed for precise volumetric measurement of clean liquid flow in large pipeline systems. With a 12-inch meter body length and between-flange installation design, it provides stable performance in demanding industrial applications. This meter belongs to the proven EZ-IN® Series, offering easy installation and removal, stainless steel construction, and compatibility with NuFlo electronics and flow instrumentation. It is ideal for applications in the oil & gas, water injection, chemical, and general processing industries.
Technical Specifications
Item | Details |
Manufacturer / Brand | Cameron (NuFlo Measurement Systems) |
Part Number | 9A-100012085 |
Series | EZ-IN® Series |
Type | Liquid Turbine Flow Meter |
Meter Size | 4 inch bore, 12 inch body length |
End Connection | Between-flange (ANSI Raised Face or Ring Joint) |
Body Material | Stainless Steel |
Measurement Principle | Axial turbine, velocity-based |
Signal Output | Frequency pulse (magnetic pickup coil) |
Nominal Flow Range | 100 to 1,200 GPM (22.71 to 272.55 m³/h) |
Calibration Factor | ~30 pulses per gallon (typical) |
Max Output Frequency | 600 pulses/sec |
Pressure Drop at Max Flow | 10 psi (69 kPa) |
Working Pressure | Up to 6,170 psi (depends on flange class, e.g., CL2500) |
Temperature Range | -20°F to 450°F (-29°C to 232°C) with appropriate pickup |
Accuracy | ±1.0% of reading (Standard) / ±0.5% (Industrial grade optional) |
Repeatability | ±0.1% |
Pickup Coil Compatibility | 9A-100002077 or 9A-100002076 (temperature-dependent) |
Mounting Orientation | Horizontal or vertical (flow upward) |
Typical Applications | Crude oil, produced water, refined hydrocarbons, chemicals |
Compliance | ASME B31.3, ANSI B16.5, NACE MR0175 / ISO 15156 (as applicable) |
