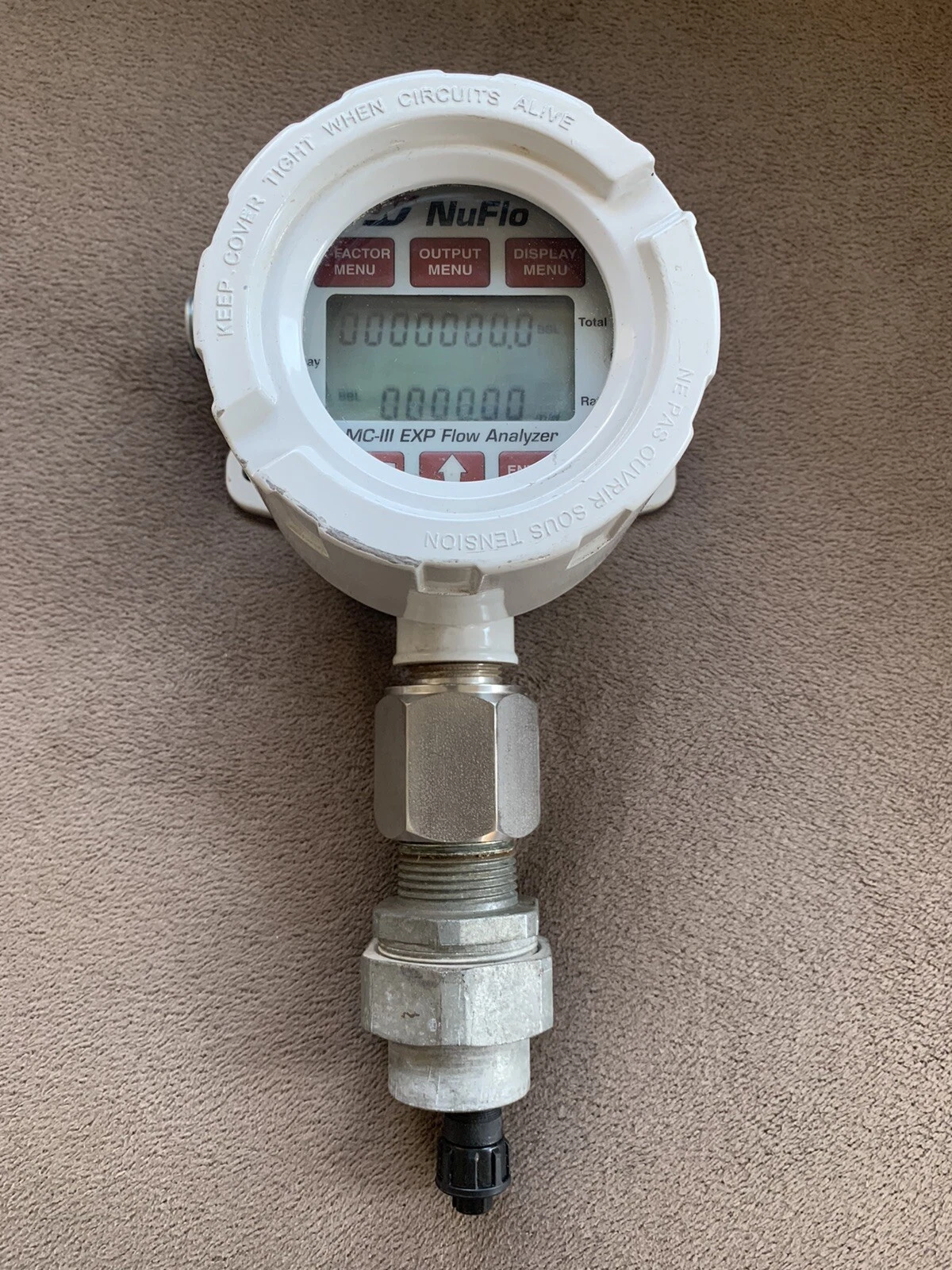

NuFlo MC-III Flow Analyzer
Rp123000.00
The NuFlo MC-III Flow Analyzer is a highly versatile, field-mounted electronic flow totalizer and indicator designed to interface directly with NuFlo turbine flowmeters. Housed in a rugged, explosion-proof enclosure, it is ideal for remote and hazardous locations where local flow monitoring, data logging, and signal transmission are required. The MC-III provides real-time display of flow rate and total, supports multiple flow units, and allows for flexible power and output configurations, including analog, pulse, and serial communications. Its user-friendly interface and advanced diagnostic features make it a preferred choice in oil & gas, water injection, and industrial liquid measurement applications.
Technical Specifications
Item | Details |
Manufacturer / Brand | Cameron (NuFlo Measurement Systems) |
Model | MC-III Flow Analyzer |
Function | Flow rate and totalizer display, data logger, signal output |
Input Signal | Frequency pulse (from turbine flowmeter pickup coil) |
Display | 2-line, 16-character LCD with backlight |
Measurement Units | Gallons, liters, barrels, cubic meters, user-defined |
Accuracy | ±0.02% of reading (electronic measurement) |
Data Logging | Internal non-volatile memory (up to 384 daily logs) |
Power Supply | Battery-powered (internal lithium battery) or external 12–24 VDC |
Outputs | 4–20 mA, scaled pulse, RS-232 / RS-485 Modbus RTU |
Operating Temperature | -40°F to +158°F (-40°C to +70°C) |
Enclosure Rating | Explosion-proof, NEMA 4X / IP66 |
Mounting Options | Direct-mount on turbine flowmeter, or remote wall/panel mount |
Programming Interface | Integral keypad (no PC required) |
Hazardous Area Approvals | Class I, Div 1 & 2, Groups B, C, D (explosion-proof) |
Typical Applications | Oil & gas production, water injection, chemical dosing |
