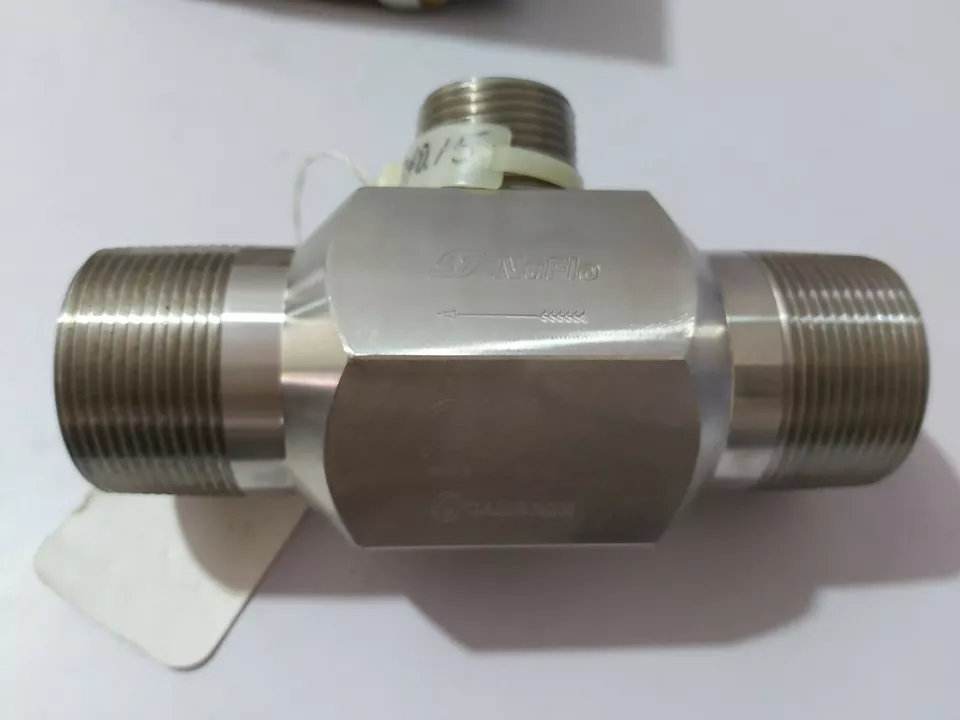

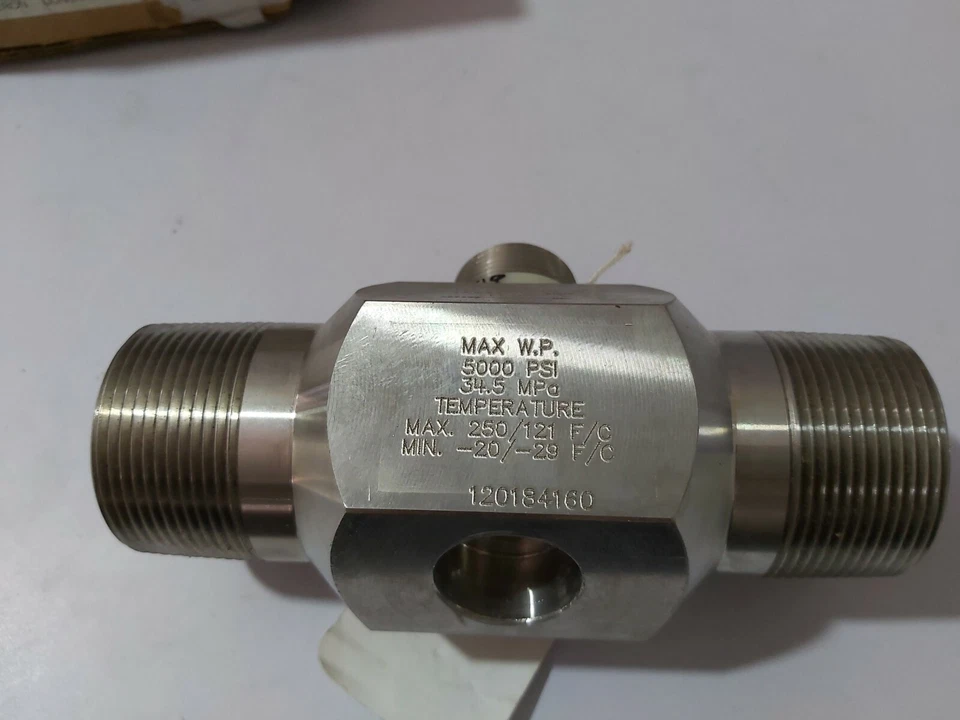

NuFlo Liquid Turbine Flow Meter 2" NPT
Rp123000.00
The NuFlo Liquid Turbine Flow Meter from Cameron is a high-performance device engineered for the accurate and repeatable measurement of liquid flow in demanding industrial environments. Designed with stainless steel construction and rated up to 5000 PSI, this flow meter is ideal for use in high-pressure oil & gas, chemical, and process applications. It features a simple inline design and outputs a frequency signal proportional to flow rate, compatible with various NuFlo electronics and totalizers.
Technical Specifications
Item | Details |
Manufacturer / Brand | Cameron (NuFlo Measurement Systems) |
Type | Liquid Turbine Flow Meter |
Measurement Principle | Axial turbine, velocity-based |
Nominal Size | 2 inch (DN50) |
End Connections | Threaded (Female NPT) |
Body Material | Stainless Steel |
Maximum Operating Pressure | 5000 PSI (345 bar) |
Flow Direction | Indicated by arrow on body |
Flow Range | Depends on calibration — typically 40 to 400 GPM |
Accuracy | ±1.0% of reading |
Repeatability | ±0.1% |
Temperature Range | -150°F to +350°F (-100°C to +177°C) |
Signal Output | Frequency signal (via magnetic pickup coil) |
Electrical Connection | 1 x Pickup coil port |
Applications | Liquid measurement in oil & gas, chemical, and industrial sectors |
Certification Options | May be available with NACE MR0175 or equivalent |
