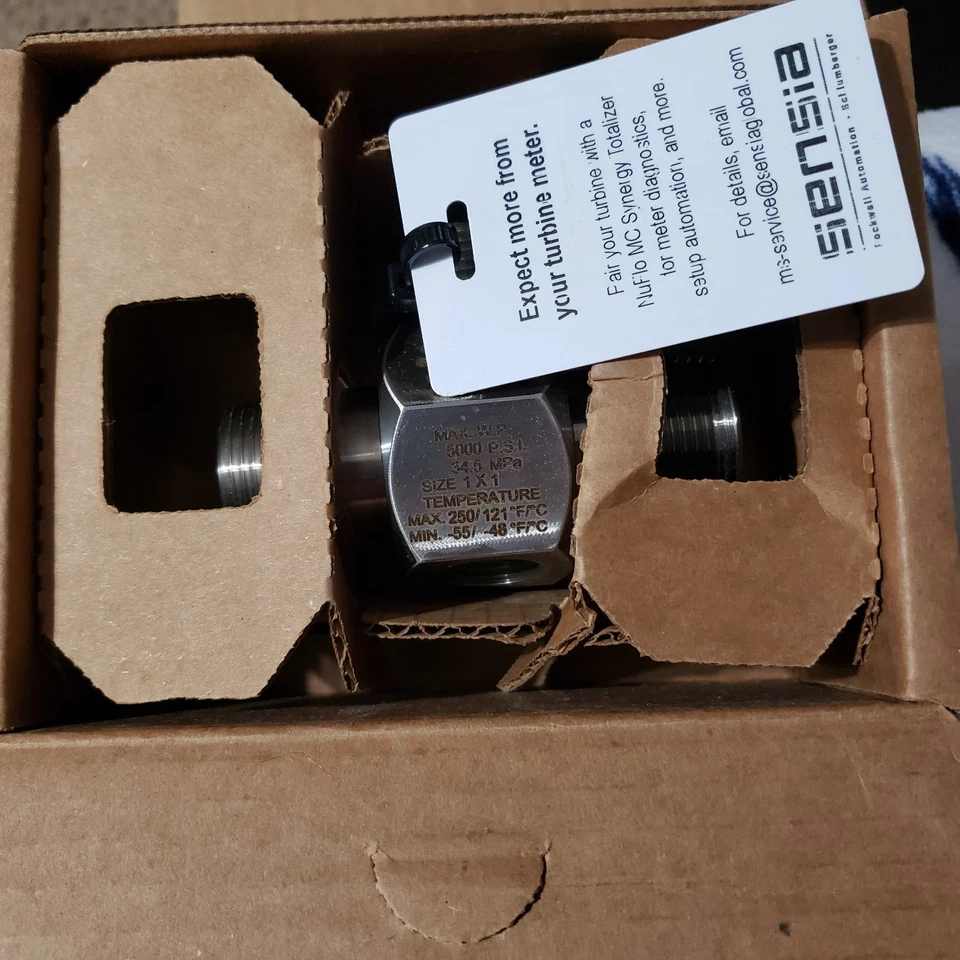

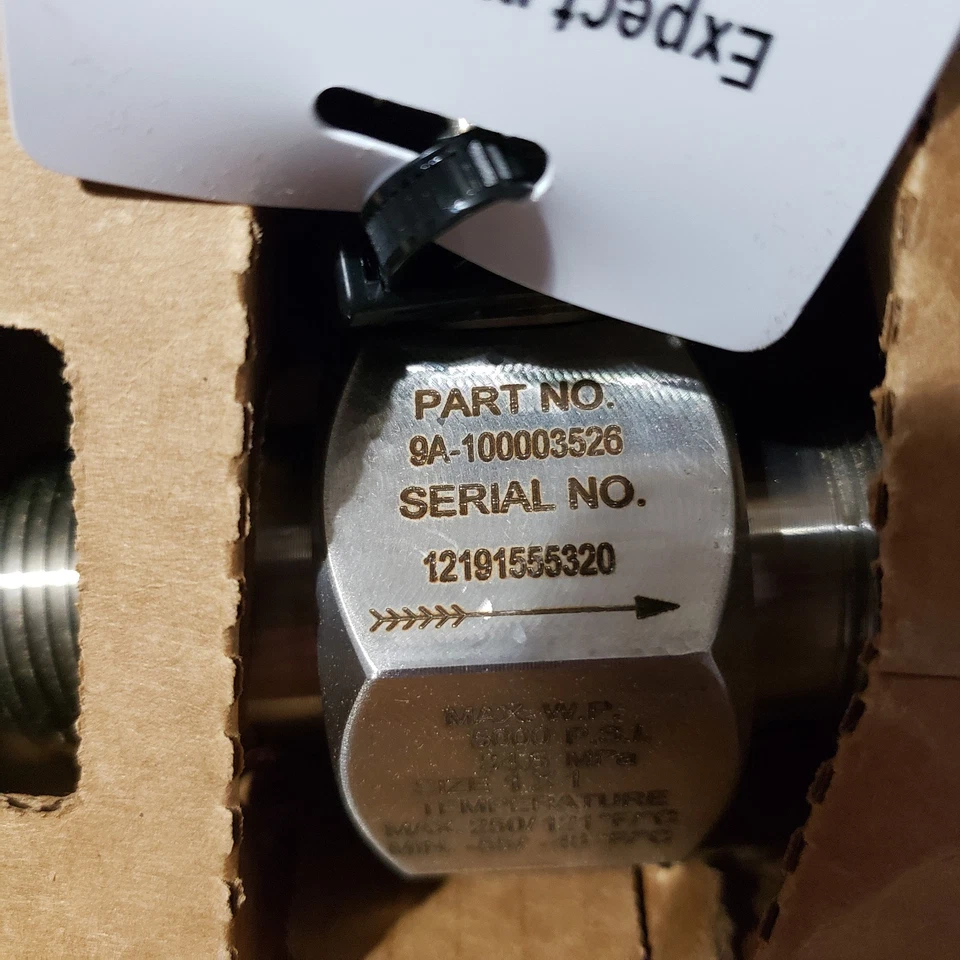

NuFlo 9A Series Liquid Turbine Flow Meter 1" Female NPT
Rp123000.00
The NuFlo 9A Series Liquid Turbine Flow Meter (1-inch, threaded) is a compact, high-performance meter designed to provide accurate and repeatable flow measurement of clean liquids across a wide range of industrial applications. Featuring a rugged stainless steel body and threaded (NPT) end connections, it is ideal for installations where flange mounting is not feasible. The internal turbine rotor spins at a rate proportional to the velocity of the fluid, producing a frequency signal via a magnetic pickup—making it compatible with a variety of flow totalizers and monitoring systems. This meter is widely used in chemical injection, oil & gas, water treatment, and other fluid-handling systems.
Technical Specifications
Item | Details |
Manufacturer / Brand | Cameron (NuFlo Measurement Systems) |
Series | 9A Series |
Type | Liquid Turbine Flow Meter |
Nominal Size | 1 inch |
End Connection | Threaded (Female NPT) |
Body Material | Stainless Steel (typically 316 SS) |
Measurement Principle | Axial turbine, velocity-based |
Signal Output | Frequency pulse (via magnetic pickup coil) |
Flow Range | 5 to 50 GPM (1.14 to 11.36 m³/h) |
Calibration Factor | ~900 pulses per gallon (typical) |
Max Output Frequency | 750 pulses/sec |
Pressure Rating | Up to 5000 psi (based on design and thread class) |
Temperature Range | -20°F to 450°F (-29°C to 232°C), with appropriate pickup |
Accuracy | ±1.0% of reading (Standard Grade) |
Repeatability | ±0.1% |
Pickup Coil Compatibility | 2295367-01 or 2296313-01 (depends on temperature) |
Mounting Orientation | Horizontal or vertical (flow upward) |
Recommended Use | Clean liquid measurement in oil & gas, chemical, and industrial systems |
Compliance | Typically conforms to ASME B31.3 and NACE MR0175 |
