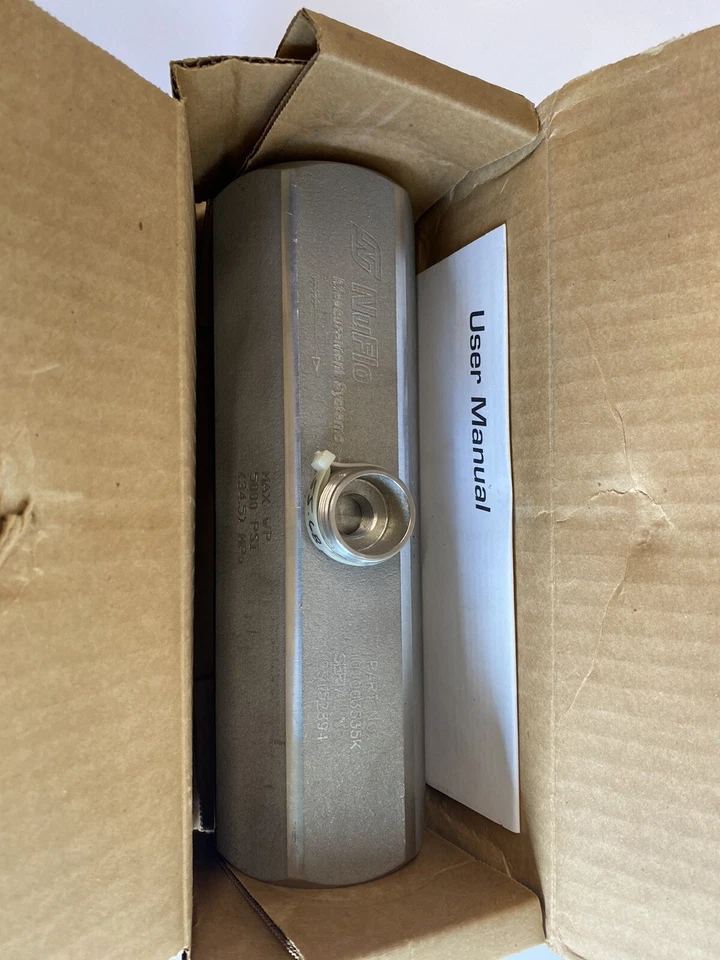

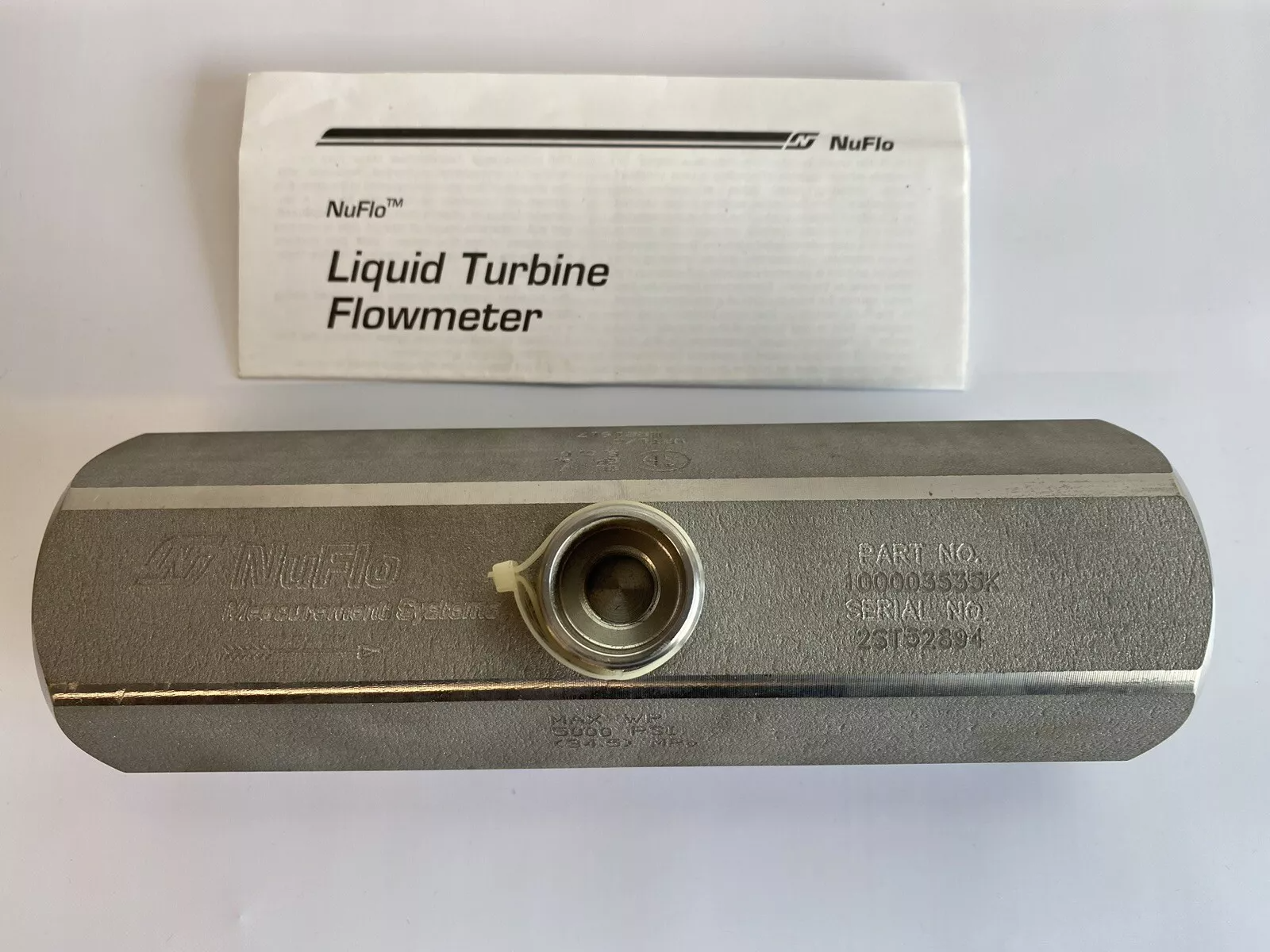

NuFlo 2-inch Liquid Turbine Flowmeter
Rp123000.00

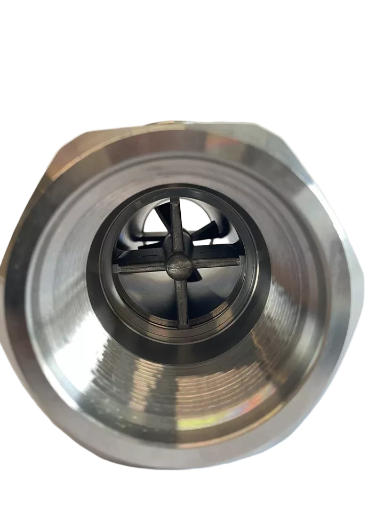

The NuFlo 2-inch Liquid Turbine Flowmeter is a precision flow measurement device designed for accurate and repeatable measurement of liquid flow in a wide range of industrial applications. Manufactured by NuFlo Measurement Systems, this flowmeter utilizes a turbine rotor that spins proportionally to the flow rate, generating a signal that is used for flow monitoring and control. It is commonly used in the oil & gas, petrochemical, and industrial sectors.
Technical Specifications
Item | Details |
Manufacturer / Brand | NuFlo Measurement Systems |
Model | (Not specified on unit — consult manual or vendor) |
Type | Liquid Turbine Flowmeter |
Part Number | 10000535JK |
Serial Number | 28192984 |
Size | 2 inch (DN50) |
Connection Type | Threaded (Female NPT) |
Body Material | Stainless Steel |
Flow Direction | Indicated by arrow on body |
Operating Principle | Turbine (velocity-based) |
Typical Applications | Water, chemicals, light hydrocarbons |
Mounting Orientation | Horizontal or vertical (with flow upwards) |
Signal Output | Frequency output (via pickup coil) |
Operating Pressure | Up to 6000 PSI (verify with datasheet) |
Operating Temperature | -150°F to 350°F / -100°C to 177°C (typical) |
Accuracy | ±1.0% of reading (typical) |
Repeatability | ±0.1% |
Pickup Coil Port | Center-threaded connection |
