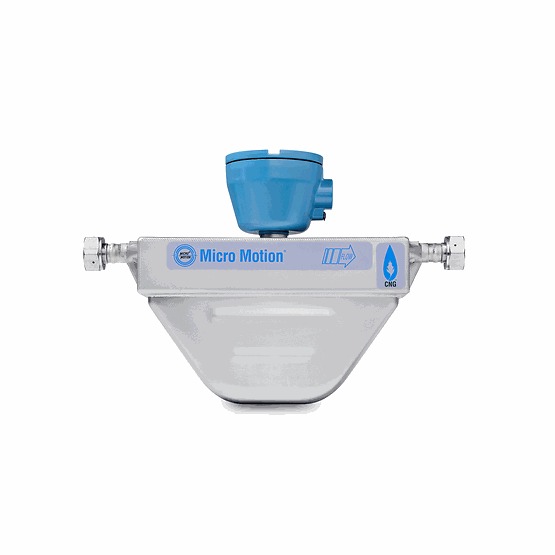

Micro Motion CNG Coriolis Flow Meter
Rp123000.00
The Micro Motion CNG Coriolis Flow Meter is a purpose-built solution designed to meet the challenges of accurately measuring compressed natural gas (CNG) in both light- and heavy-duty vehicle dispensers. It delivers superior performance for custody transfer applications while optimizing fill time through its enhanced flow rate capabilities.
Specifications
Accuracy/Repeatability: ±0.50% of batch (±0.25% of rate)
Line Size: 1/2” to 3/4” (DN15–DN20)
Pressure Range: Up to 5000 psig (345 barg)
Temperature Range: -40°F to 257°F (-40°C to 125°C)
Turndown Ratio: 10:1
Key Features
Optimized for CNG Dispensers: Designed to satisfy the demands of both light- and heavy-duty vehicle applications, offering a single-meter solution tailored to industry needs.
Robust Material Construction: Fabricated with durable 316L stainless steel to handle a variety of fluid types.
Flexible Transmitter Options: Supports a broad range of transmitter configurations, including direct-connect options, to align with dispenser design specifications.
Comprehensive Certifications: Includes a wide array of industry certifications such as CSA (Class 1 Div 1 & Div 2, Class II Div 1), ATEX, NEPSI, IECEx, IP66/67, and NAMUR, ensuring compliance with global standards.
Compact and Maintenance-Free Design: Features a compact form factor with no moving parts, eliminating the need for special mounting or flow conditioning, and minimizing maintenance requirements.
Custody Transfer Certification: Approved for custody transfer applications, ensuring precise and reliable measurement for commercial transactions.
