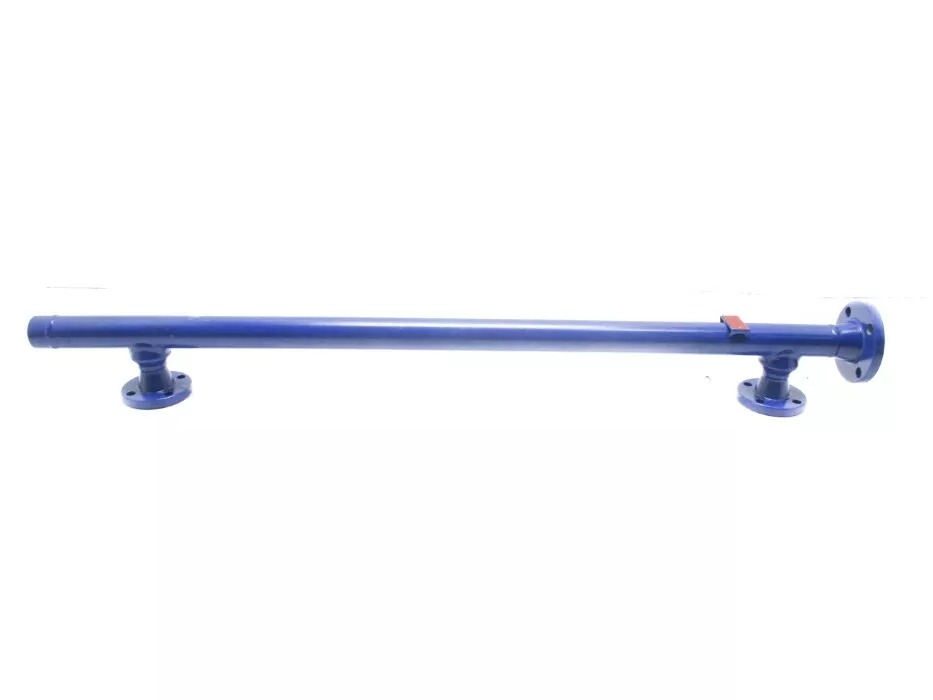

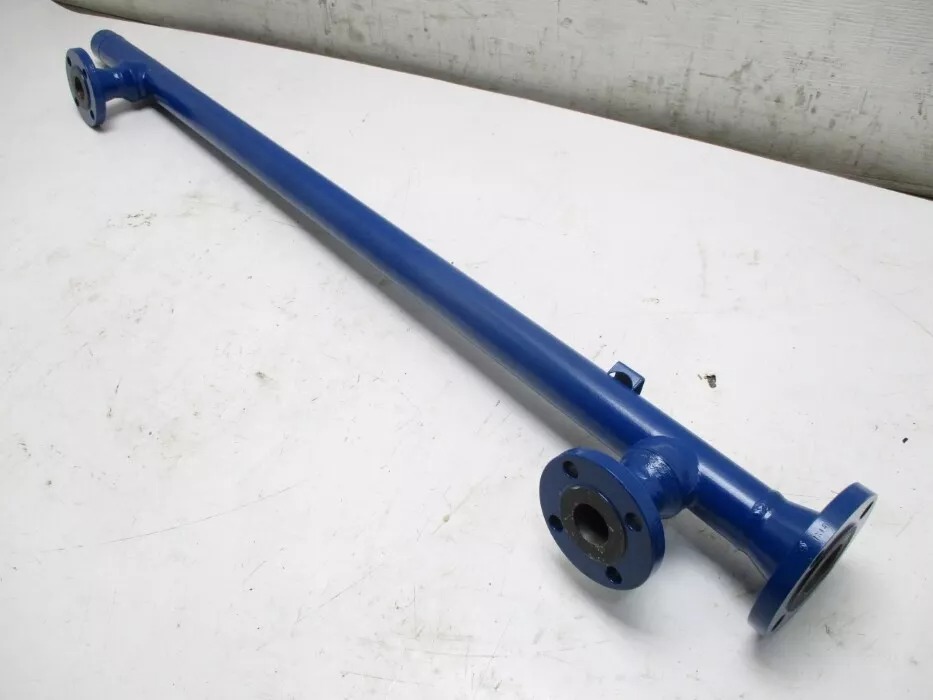

Magnetrol F23-1A3E-046 Displacer Level Switch

Description:

The Magnetrol F23-1A3E-046 is a displacer-operated level switch designed for reliable liquid level detection in industrial applications. This mechanical level switch uses the principle of buoyancy to detect liquid levels, making it ideal for point-level control in tanks, vessels, and other process equipment. It is widely used in industries such as oil & gas, chemical processing, power generation, and water treatment for level monitoring and process control.

The F23-1A3E-046 is engineered for durability, ensuring reliable operation in harsh environments with high pressure and temperature. With a rugged, industrial-grade build, it offers accurate and consistent level detection while requiring minimal maintenance.

Key Features:

• Displacer-Operated Mechanism: Reliable, buoyancy-based level detection.

• Rugged Construction: Designed to operate in harsh industrial environments.

• Versatile Applications: Suitable for detecting liquid levels in tanks, vessels, and sumps.

• High Pressure and Temperature Compatibility: Can withstand demanding process conditions.

• Minimal Maintenance: Mechanical design ensures low operational upkeep.

• Switch Options: Provides options for electrical switches to suit different process requirements.

• Proven Reliability: Ideal for critical applications requiring dependable level monitoring.

Specifications:

• Model: F23-1A3E-046

• Operation Principle: Displacer-based level switch (buoyancy principle)

• Material:

  • Body: Durable materials suited for high-pressure and corrosive environments

  • Displacer: Stainless steel for enhanced durability and chemical resistance

• Power Supply: Typically connected to standard electrical control circuits

• Pressure Rating: Capable of handling high-pressure conditions (up to 1000+ PSI, depending on configuration)

• Temperature Rating: Suitable for operating in elevated process temperatures (up to 450°F / 232°C depending on version)

• Switch Type: SPDT or DPDT (single-pole double-throw, double-pole double-throw) electrical switch

• Mounting Type: Flanged or threaded mounting options for flexible installation

• Enclosure: Industrial-grade housing; weatherproof and explosion-proof options available (per ATEX, IECEx, or similar standards)

• Process Connection: Configurable connections (threaded or flanged) to meet system requirements

• Applications: Point-level detection for liquids, interface monitoring in oil/water or similar systems

Applications:

• Oil & Gas: For level detection in separators, sumps, and storage tanks.

• Chemical & Petrochemical: Ideal for corrosive liquids and interface monitoring.

• Power Generation: Used in boilers, condensers, and feedwater systems.

• Water & Wastewater: Point-level control in reservoirs, clarifiers, and tanks.

• General Industry: Process monitoring and control in various applications requiring accurate level detection.
