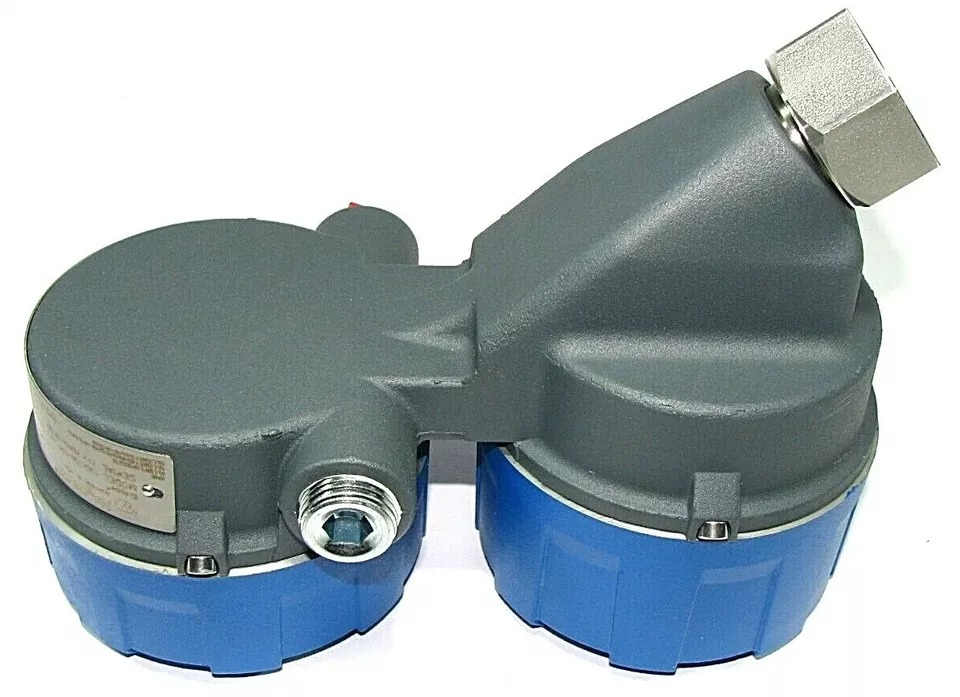

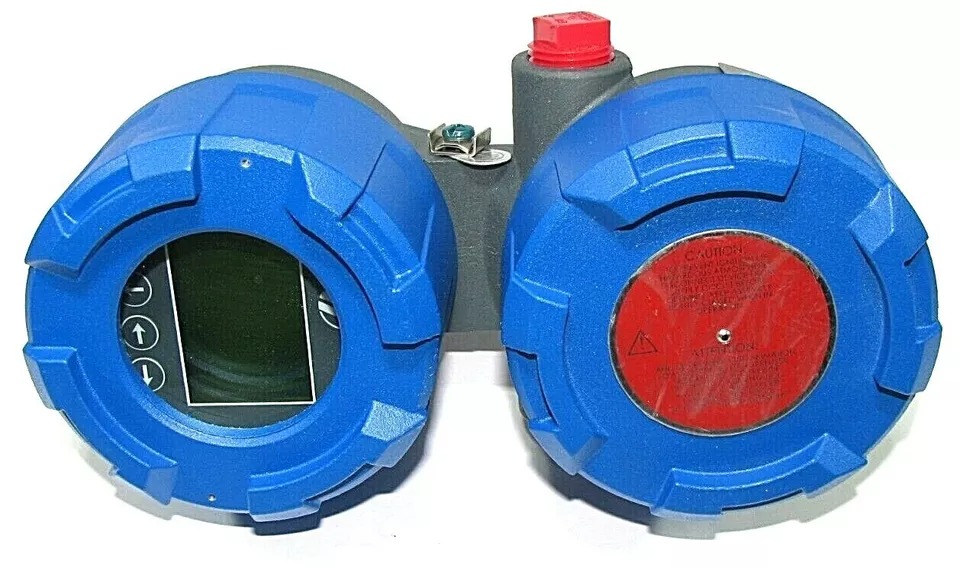

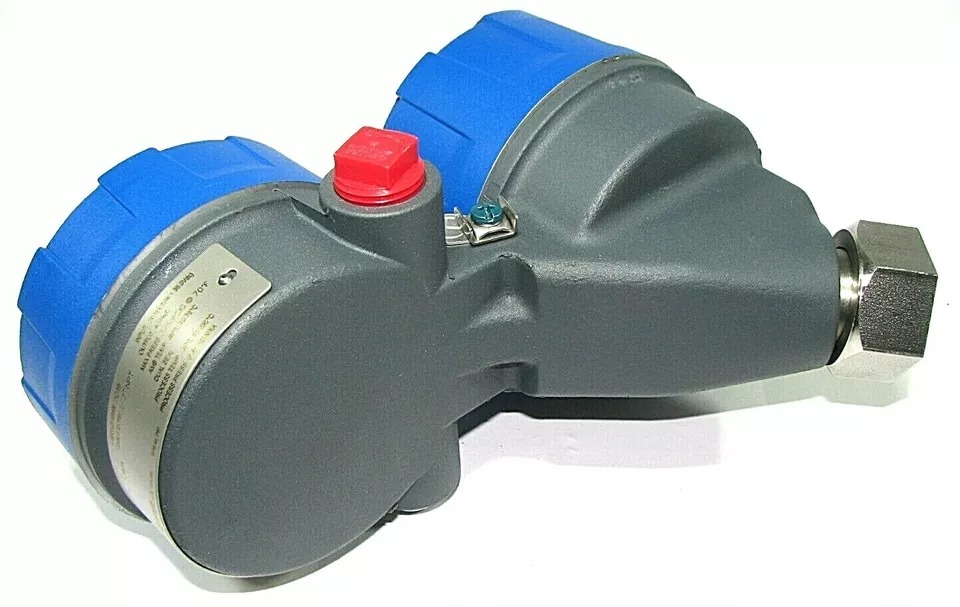

Magnetrol Eclipse 706-511A-310 / 7AT-5300-A10-00-035 Guided Wave Radar Transmitter
Rp123000.00
The Magnetrol Eclipse 706-511A-310 / 7AT-5300-A10-00-035 Guided Wave Radar Transmitter is a high-performance, non-contact level measurement device that utilizes guided wave radar (GWR) technology for accurate and reliable level measurement in various industrial applications. It is designed to handle a wide range of process conditions and provides precise and continuous level measurements in tanks, vessels, and pipes. Ideal for applications involving liquid and solid materials, the Magnetrol Eclipse offers a robust, flexible solution with easy integration and high operational efficiency.
Product Features
Guided Wave Radar Technology: The Eclipse 706 uses guided wave radar (GWR), which sends microwave pulses along a probe (typically a coaxial cable or rod) and measures the time it takes for the pulse to reflect back from the material's surface, offering reliable and accurate level measurements.
High Accuracy and Reliability: With advanced signal processing and precision measurements, the Eclipse ensures continuous and accurate level measurement, even in challenging conditions such as turbulence, foam, and vapor.
Wide Measurement Range: Capable of measuring levels in applications with long measuring distances and varying material properties, the Eclipse 706 provides reliable performance across a broad range of industrial processes.
Multi-Application Versatility: Suitable for a variety of applications, including measuring the level of liquids, solids, and slurry, in industries such as chemical, oil & gas, water treatment, and power generation.
Non-Contact Measurement: The guided wave radar design provides a non-contact measurement, which reduces the risk of contamination, wear, and tear on components, ensuring low maintenance costs and increased system longevity.
Customization Options: The Magnetrol Eclipse 706-511A-310 offers a wide range of probe options (rod, coaxial, or twin rod) to suit different process conditions and tank geometries, allowing for flexible installation.
Advanced Diagnostics: The transmitter comes equipped with advanced diagnostics capabilities to detect potential issues early, improving maintenance scheduling and reducing unexpected downtime.
Integrated Display: The integrated display provides real-time readings and configuration options, simplifying setup and maintenance while allowing for easy monitoring of the measurement process.
HART Communication: Supports HART protocol for seamless communication with control systems, enabling remote configuration, calibration, and troubleshooting.
Robust Construction: The transmitter is designed to withstand extreme conditions, including high pressure, temperature variations, and aggressive chemicals, providing reliable performance even in harsh industrial environments.
Specifications
Model Number: Magnetrol Eclipse 706-511A-310 / 7AT-5300-A10-00-035
Measurement Technology: Guided Wave Radar (GWR)
Process Connection: Flanged or threaded connections (customizable for specific installation needs)
Measuring Range: Typically up to 30 meters (or more, depending on the specific model and configuration)
Frequency Range: 6 GHz
Output Signal: 4-20 mA with HART communication (for integration with control systems)
Accuracy: ±5mm or better, depending on the specific configuration and installation conditions
Response Time: Fast response time, typically within milliseconds for real-time level measurements
Power Supply: 24V DC (typical)
Material Compatibility: Suitable for use in a variety of materials, including water, oils, chemicals, and solids
Process Temperature: Typically up to 150°C (300°F), depending on the probe and configuration
Process Pressure: Up to 40 bar (580 psi) depending on the model
Enclosure Rating: IP66/IP67 (or equivalent) for protection against dust and water ingress
Display: Local display for monitoring, configuration, and diagnostics
Probe Options: Coaxial, rod, or twin-rod probes available based on the application
Installation: Simple setup with automatic calibration capabilities for easy integration into existing systems
Applications
Oil & Gas: Accurate level measurement in upstream and downstream applications such as tanks, separators, and process vessels.
Chemical Processing: Level measurement for tanks containing chemicals, solvents, or corrosive substances.
Water & Wastewater Treatment: Used in clarifiers, sumps, and other water treatment facilities to measure liquid levels.
Power Generation: Measurement of liquid levels in steam drums, condensate tanks, and cooling towers.
Food & Beverage: Reliable level measurement in applications involving liquid ingredients, mixing tanks, or storage silos.
Pharmaceutical: For level measurement in manufacturing processes that require strict quality control and sanitation standards.
