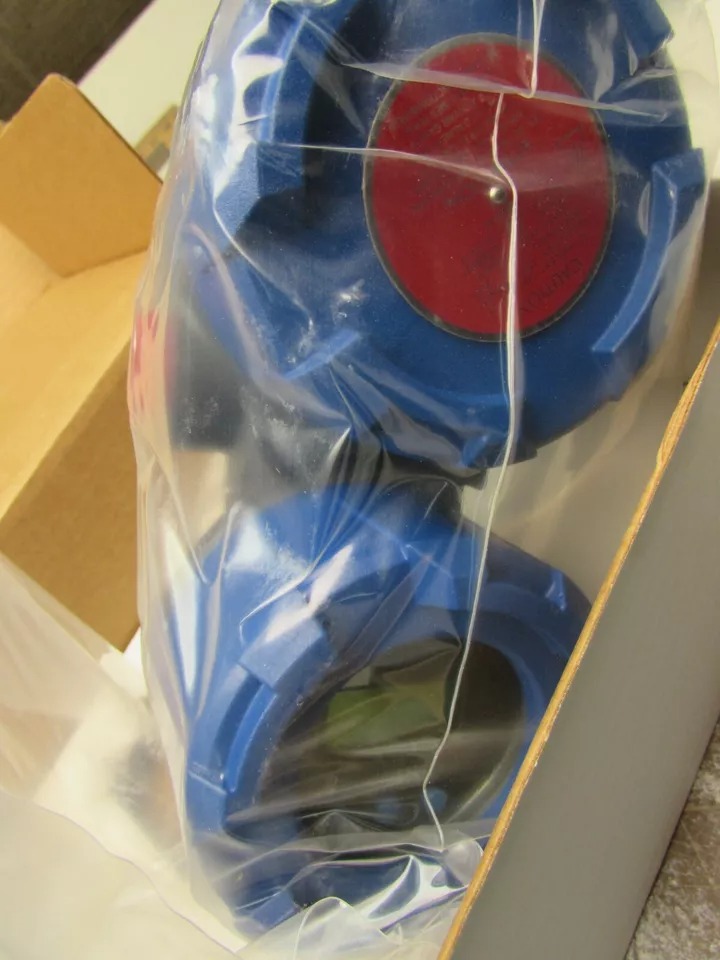

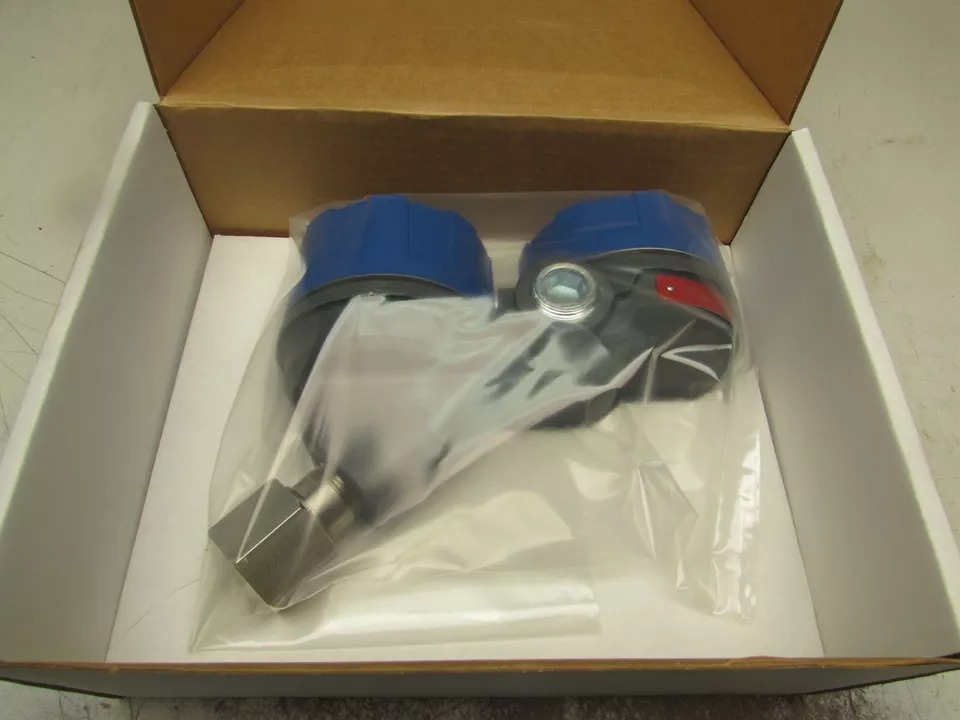

Magnetrol Eclipse 705-510A Guided Wave Radar Level Transmitter
Rp123000.00
The Magnetrol Eclipse 705-510A-310 Guided Wave Radar Level Transmitter is a state-of-the-art level measurement device designed for continuous and accurate measurement of liquid or solid levels in a wide range of applications. Utilizing guided wave radar (GWR) technology, the Eclipse series provides reliable, non-contact level measurement even under challenging conditions such as foam, agitation, or vapor. This model is equipped with a probe for direct interaction with the medium, ensuring precise measurement in confined or complex tank geometries.
Key Features
Guided Wave Radar (GWR) Technology: This level transmitter uses guided wave radar, which sends high-frequency microwave pulses along a probe or cable to measure the level of the medium. This technology provides precise, reliable measurement unaffected by temperature, pressure, or product density.
Versatile Measurement: Suitable for both liquid and solid level applications, including water treatment, chemical, food and beverage, oil and gas, and pharmaceutical industries. The probe is designed for high accuracy even in the presence of foam, vapor, or changing media characteristics.
Easy Installation: The Eclipse 705-510A-310 is equipped with a probe for easy installation into tanks or vessels, even in narrow or challenging spaces. The probe design ensures a robust and reliable measurement in various industrial applications.
No Moving Parts: The absence of moving parts minimizes maintenance requirements and improves reliability, particularly in harsh or high-pressure environments.
Flexible Output Options: The transmitter offers a wide variety of output options, including 4-20mA, HART, Modbus, and Pulse for integration with existing control systems. This allows seamless communication and remote monitoring.
High-Performance Probe: The included probe ensures a direct connection with the material being measured, enabling high accuracy in both liquid and solid-level applications. The probe can withstand high temperatures, pressures, and aggressive chemical environments.
Multi-Configuration Options: The 705-510A-310 is available with customizable probe lengths, material choices, and mounting options to accommodate diverse applications and installation conditions.
Digital Signal Processing (DSP): The device integrates digital signal processing to provide high signal resolution and precise measurement, even in the most difficult or demanding process conditions.
Compact and Robust Design: The device is built to withstand harsh environmental conditions, including high-pressure, high-temperature, and corrosive environments. Its compact design allows for easy installation in confined spaces.
Specifications

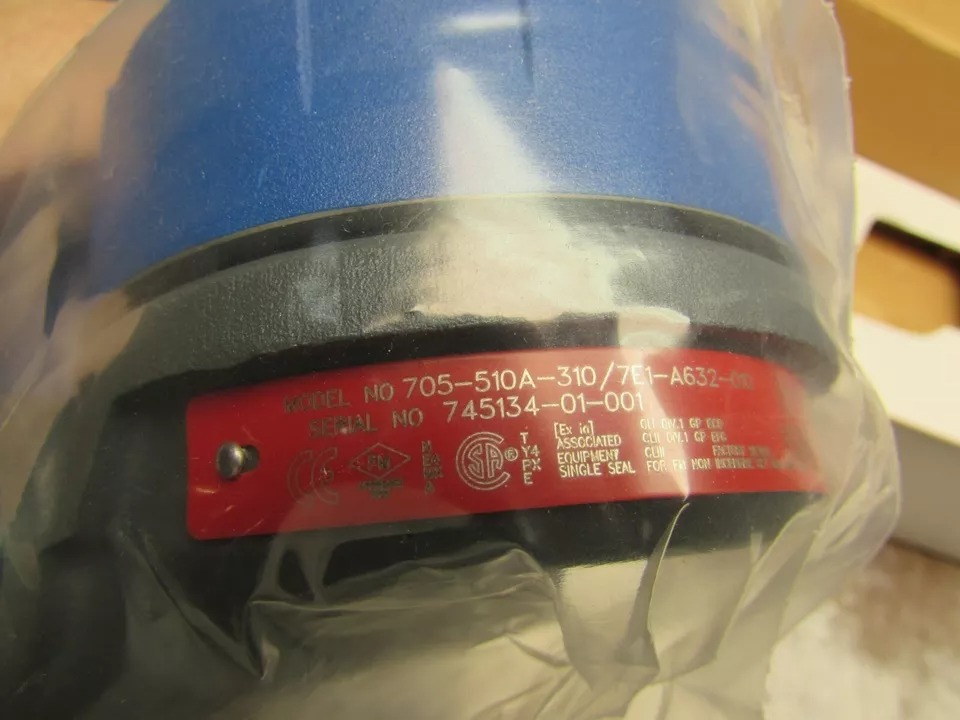

Model: Magnetrol Eclipse 705-510A-310
Measurement Technology: Guided Wave Radar (GWR)
Measurement Range: Up to 30 meters (depending on medium and configuration)

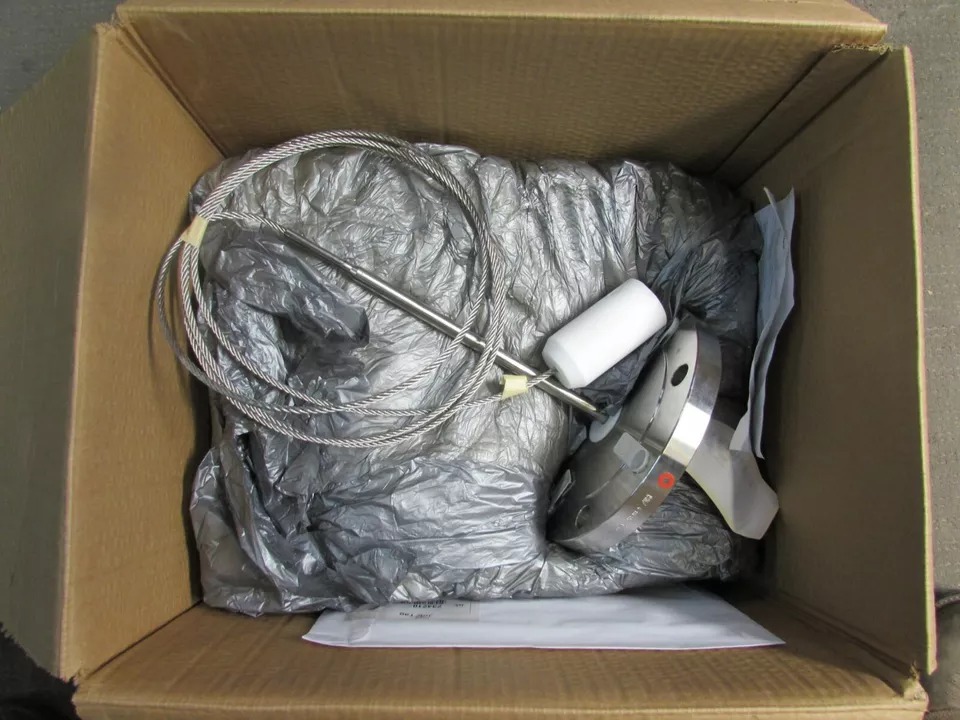

Probe Type: Rigid rod or cable probe (customizable length and materials available)
Accuracy: ±5mm (depending on configuration and application)
Output Signal: 4-20mA, HART, Modbus, Pulse output (configurable)
Power Supply: 24V DC (nominal), suitable for industrial applications
Temperature Range: -40°C to +200°C (-40°F to +392°F) (depending on probe material)
Pressure Range: Up to 40 bar (580 psi) (depending on probe material)
Material: Stainless Steel (316L) or other corrosion-resistant materials, depending on application
Enclosure: IP67 (dust-tight and waterproof)
Communication Protocols: HART, Modbus
Probe Length: Customizable (typically 1m to 3m, based on application)
Mounting Options: Flanged or threaded connection
Display: Optional digital or local interface for monitoring and configuration
Approval Standards: CE, ATEX, IECEx (for hazardous area environments)
Applications
Liquid Level Measurement: Perfect for tanks, vessels, and silos containing liquids such as water, chemicals, oils, and fuels.
Solid Level Measurement: Suitable for measuring bulk solids in silos or hoppers, including powders, granules, and pellets.
Chemical Industry: Used in storage tanks, reactors, and mixing vessels for precise liquid or slurry level measurement.
Food & Beverage: Continuous level measurement in tanks, vats, and silos for the food and beverage industry.
Oil & Gas: Ideal for use in crude oil storage, refining, and distribution facilities, providing accurate level measurement in both upstream and downstream operations.
Pharmaceutical: Ensures accurate level measurements in production processes, mixing, and storage of pharmaceutical liquids and solids.
Water & Wastewater Treatment: Provides reliable measurement for water treatment, sewage treatment plants, and other water-related processes.
