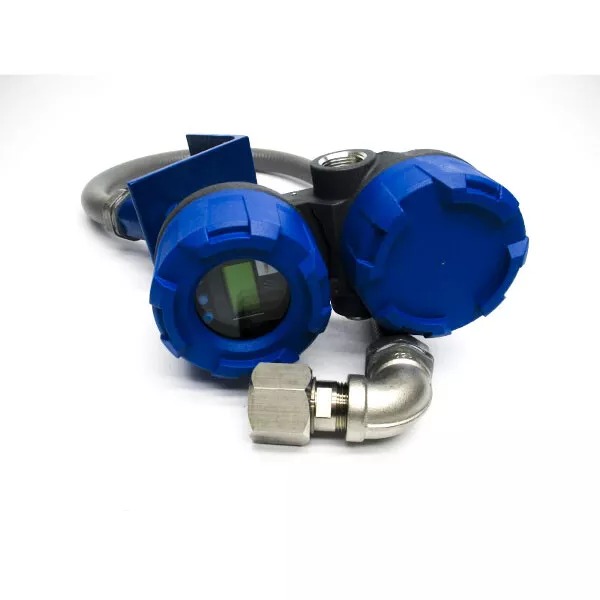

Magnetrol 705-510A-210 Guided Wave Radar Level Transmitter
Rp123000.00
Description
The Magnetrol 705-510A-210 is a Guided Wave Radar (GWR) Level Transmitter specifically designed to provide precise and reliable liquid level and interface measurements in industrial processes. With its advanced radar technology, it ensures accuracy even in challenging conditions such as varying temperatures, pressures, and dielectric constants.
Operating on a 24VDC power supply, the 705-510A-210 uses Time Domain Reflectometry (TDR) to guide microwave pulses along a probe, providing robust performance for both liquids and solids. The transmitter is compact, efficient, and ideal for applications in oil & gas, chemical, water, power, and food processing industries.
Key Features
Guided Wave Radar (GWR) Technology: Accurate and repeatable level measurement for liquids and interfaces.
High Performance: Reliable operation in challenging conditions, such as turbulence, vapor, and foam.
Compact Design: Space-saving and suitable for tight installations.
Power Supply: Operates on a 24VDC power source.

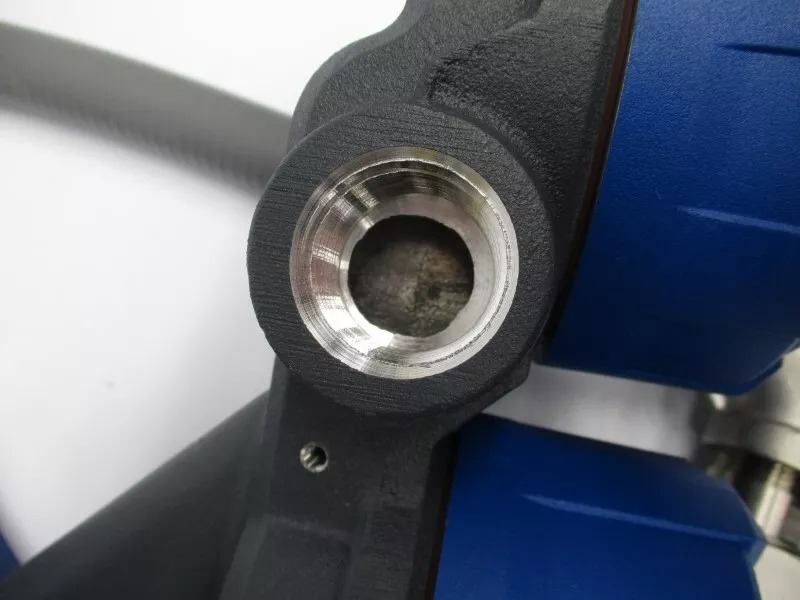

Process Connection: 1" NPT threaded connection for easy installation.
Low Maintenance: Non-contact measurement eliminates wear and tear, ensuring minimal downtime.
HART Communication: Supports digital communication for diagnostics and remote configuration.
Rugged Build: Durable construction suitable for harsh environments.
Specifications

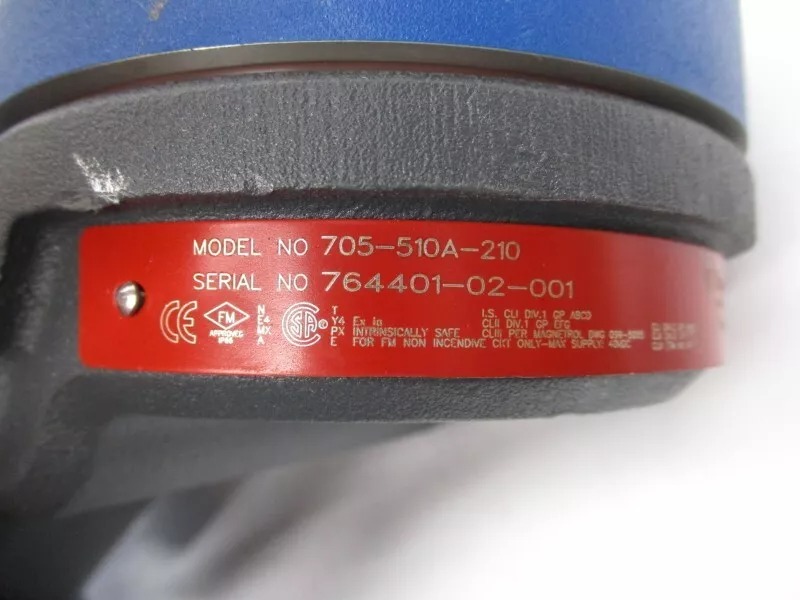

Model: 705-510A-210
Measurement Technology: Guided Wave Radar (TDR)

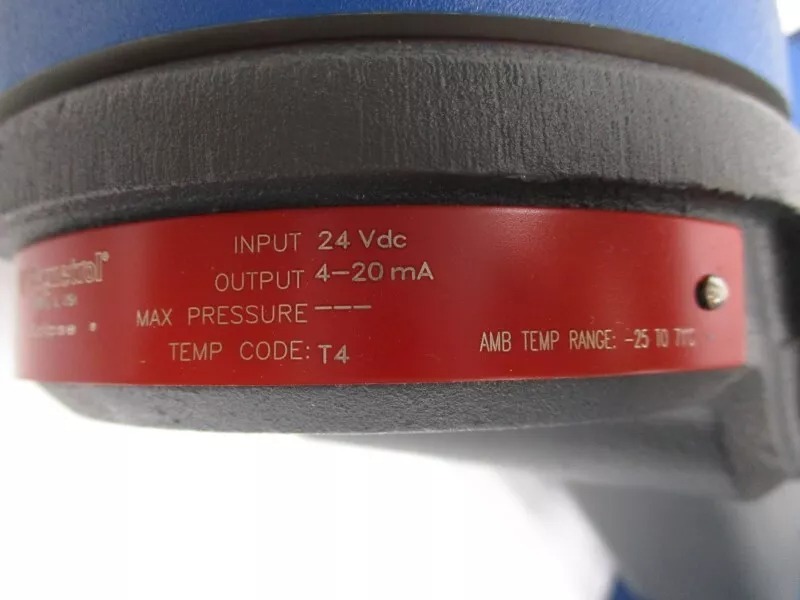

Power Supply: 24VDC
Process Connection: 1" NPT (Threaded)
Probe Type: Single or dual-element probes (depending on configuration)
Measuring Range: Up to 40 feet (12 meters), depending on probe and application
Accuracy: ±0.08 inches (±2 mm)
Output Signal: 4-20 mA with HART Protocol
Temperature Range: -40°F to +450°F (-40°C to +232°C)
Pressure Rating: Up to 2320 psi (160 bar)
Enclosure: Industrial-grade, weatherproof, and explosion-proof options available
Dielectric Range: Suitable for low to high dielectric liquids
Communication: HART-compatible for remote configuration and monitoring
Applications
Oil & Gas: Tank level measurement, interface detection (oil-water separation).
Chemical Processing: Accurate liquid and interface monitoring for corrosive and aggressive media.
Power Generation: Feedwater tanks, condensate systems, and boiler drum level measurement.
Water/Wastewater: Reservoirs, treatment tanks, and pump control systems.
Food & Beverage: Liquid storage tanks, blending systems, and process control applications.
